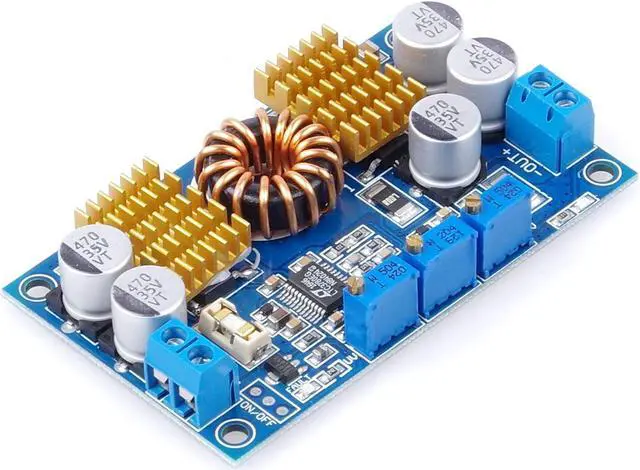

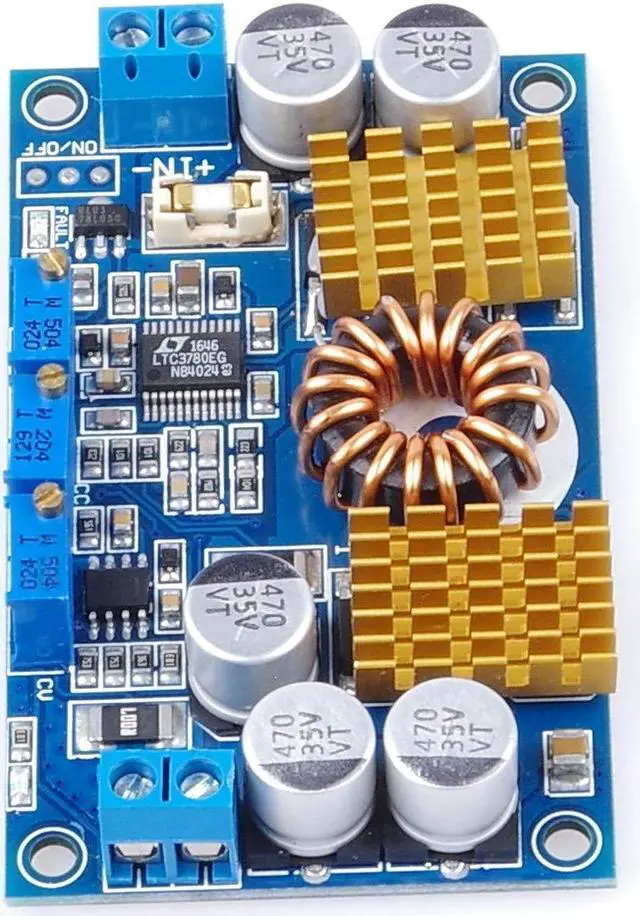

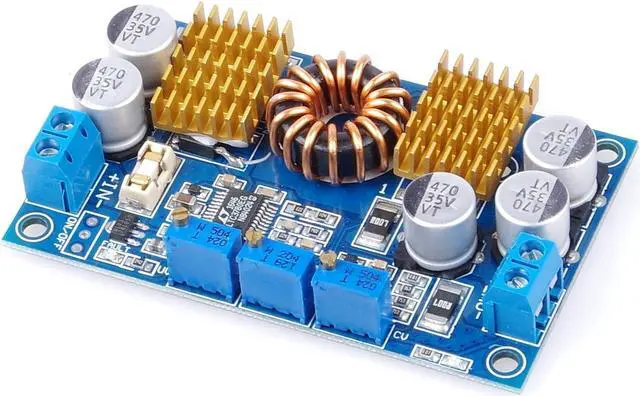

KNACRO LTC3780 Automatic Pressure Lifting Power,Constant Voltage Constant Current DC 5-32V 10A Max 30W Voltage stabilized, car, Solar Charging
- It is a high efficiency voltage regulator power supply module, the input voltage is lower than, higher than the output voltage, the output voltage can remain stable.This module has perfect protection function, can be applied to solar charge.
- Circuit board with 1.6 thick gold plating process,Input can be replaced by the replacement of the insurance tube, the protection of power and equipment.
- The whole electrolysis adopts imported SMD, low resistance, high frequency capacitance, the ripple down to the freezing point.IC imported from Linear.
- Constant voltage, constant current, under voltage protection (MPPT is more suitable for solar charge).
- Black oxide heat sink cooling, cooling effect is better than the effect of the natural aluminum film.On the back of the aluminum plate, through the thermal conductive silicon film is fixed in the bottom of the module, can ensure good heat dissipation, do not need to consider insulation and heat problem;Iron silicon aluminum, 0.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Input voltage: DC5-32V.
Output voltage: DC1V-30V continuous adjustable, the default 12V.
Output current: less than 8A, the peak value of 10A, the default 5A.
Output power: long-term 80W, peak 130W, more than 80W, please strengthen cooling.
Output ripple: 50mV (12V, 5A, 12V).
Input back protection: No, if required, please connect the diode in the output terminal.
Output: no need, such as anti backflow charging, please at the output diode in series.
Operating temperature range: -45~ +85.
Size: 77.6 * 46.5 *15mm (L*W*H) (including the bottom surface heat aluminum).
Short circuit protection: have.
Weight: 59g/ 2.05 oz.

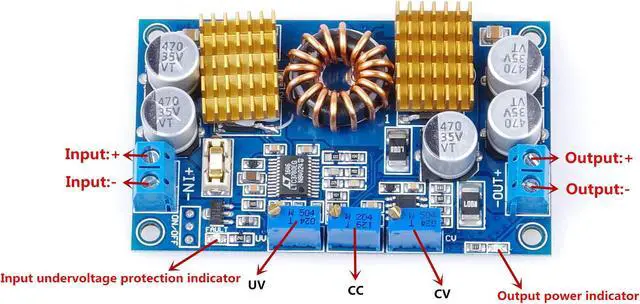

Description of the use of LTC3780 constant current under pressure protection plate:
This module belongs to the automatic lifting power supply, the input voltage is lower than the output voltage, and the output voltage can be kept stable.
For example, set the output of 12V, input voltage in 5 ~ 32V between changes, output voltage is 12V constant; constant current, constant pressure, under voltage protection and output instructions, fault indication function output had over-current, over-voltage, short circuit protection; all the components can achieve industrial scale should be used; can be perfect for use in a variety of occasions, such as charging, high power LED drive, power supply equipment, vehicle power supply and so on.
Output voltage: DC1V-30V continuous adjustable, the default 12V.
Output current: less than 8A, the peak value of 10A, the default 5A.
Output power: long-term 80W, peak 130W, more than 80W, please strengthen cooling.
Output ripple: 50mV (12V, 5A, 12V).
Input back protection: No, if required, please connect the diode in the output terminal.
Output: no need, such as anti backflow charging, please at the output diode in series.
Operating temperature range: -45~ +85.
Size: 77.6 * 46.5 *15mm (L*W*H) (including the bottom surface heat aluminum).
Short circuit protection: have.
Weight: 59g/ 2.05 oz.
Description of the use of LTC3780 constant current under pressure protection plate:
This module belongs to the automatic lifting power supply, the input voltage is lower than the output voltage, and the output voltage can be kept stable.
For example, set the output of 12V, input voltage in 5 ~ 32V between changes, output voltage is 12V constant; constant current, constant pressure, under voltage protection and output instructions, fault indication function output had over-current, over-voltage, short circuit protection; all the components can achieve industrial scale should be used; can be perfect for use in a variety of occasions, such as charging, high power LED drive, power supply equipment, vehicle power supply and so on.
