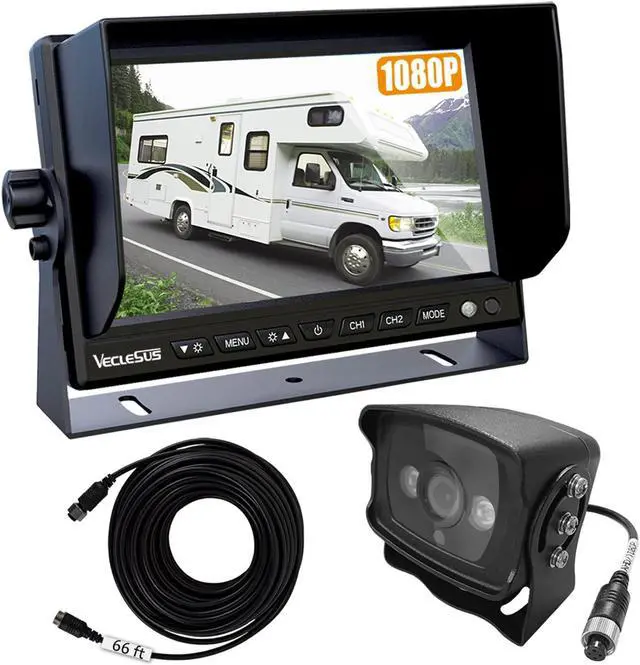

Backup Camera System VMS 1080P high Definition Wired 2 Videos 7" Wide in-Plane Switching Monitor Night Vision Backup Camera for Trucks Buses Recreational Vehicles Vans, All Heavy Duty Vehicles
- >For Large Vehicles Parking Safety - Comes with a 66ft(20M) extension video cord, widely applicable to all kinds of medium or large vehicles, can work perfectly on wide voltage 9~36V, suitable for heavy-duty and long vehicles, such as Recreational Vehicles, motorhome, bus, cargo van, box truck, flatbed truck, bucket truck, tractor and school bus, etc. NOTE: For trailers, we recommend buying VECLESUS trailer backup camera system VMST(which include trailer kit)

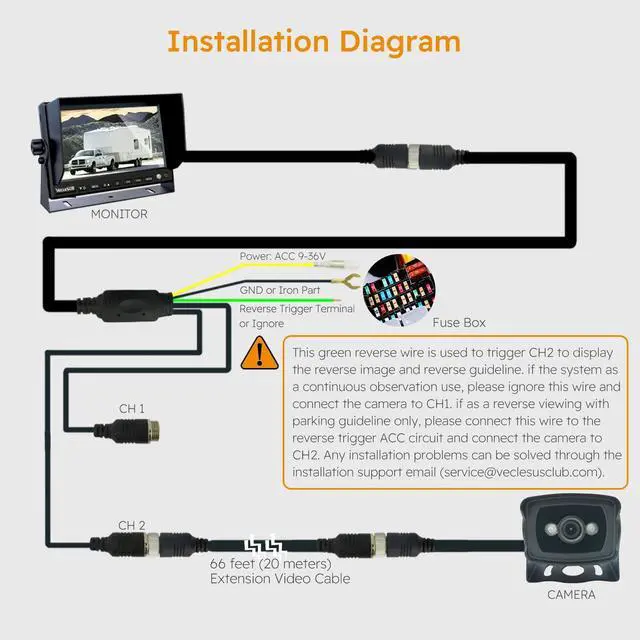

- >Easy to Install - This backup camera system powered by fuse box, connected the red to ACC(9-36V), the black connect the Metal (Ground), the green connect the reverse gear circuit as a trigger power, monitor and backup camera will automatically turn ON/OFF when the vehicle is ON/OFF, different channels can set by the button on monitor, NOTE: CH2 is as reversing channel, can be triggered by the Green wire (Connection Diagram and Installation Instruction are included)
- >7 inch Rear View Monitor and 2 Channel Video Inp
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Veclesus backup camera system, 100% adaptive wide voltage, multiple installation methods, night vision and waterproof design, super wide visual range, quality warranty service within two years. Before installation the backup camera system, please read the manual in the package carefully at first. Generally, in order to immobility of camera, the installation of the camera needs to drill holes at the location of installation in the rear of the vehicle with an electric drill. For the detailed video of installation procedures, please visit
YOUTUBE https: //youtu. be/dMKs-2k3rdY If you have any other problems unknown to solve, please contact us [service@veclesusclub.
com]
Ratio: 16:9
Power Consumption: 5W
Weight: 5.38 pounds/pcs
Resolution: 800*RGB*480
Power Requirement: 9~36V DC Built-in speaker, 4 PIN connector
Packing Size: 16.2 * 9.9 * 3.3 inches
Working Temperature: -4 to 158
Storage Temperature: -22 to 176
Image Reversion: Up/Down and
Left/Right AV Inputs: 2 ways video input, 2 ways audio input
System: OSD control Color, Brightness, Contrast,
Volume View Angel: Hor.
Left: 60 degrees, Right: 60 degrees; Ver.
Up: 40 degrees, Down: 60 degrees
Language: English, German, French, Spanish, Portugal, Italian, Dutch, simplify Chinese.
Package Includes: 1 * Backup Monitor 1 * Backup Camera 1 * Remote Controller 1 * Extension Cable (66ft) 1 * Video & Power Cable 1 * Veclesus Thanks Card 1 * User Manual for Backup Camera System 1 * U Shaped Bracket & Suction Cup Bracket Installation
Guide INSTALLATION VIDEO:
https: //youtu. be/yc65nA47Pog
YOUTUBE https: //youtu. be/dMKs-2k3rdY If you have any other problems unknown to solve, please contact us [service@veclesusclub.
com]
Specifications
: ScreenRatio: 16:9
Power Consumption: 5W
Weight: 5.38 pounds/pcs
Resolution: 800*RGB*480
Power Requirement: 9~36V DC Built-in speaker, 4 PIN connector
Packing Size: 16.2 * 9.9 * 3.3 inches
Working Temperature: -4 to 158
Storage Temperature: -22 to 176
Image Reversion: Up/Down and
Left/Right AV Inputs: 2 ways video input, 2 ways audio input
System: OSD control Color, Brightness, Contrast,
Volume View Angel: Hor.
Left: 60 degrees, Right: 60 degrees; Ver.
Up: 40 degrees, Down: 60 degrees
Language: English, German, French, Spanish, Portugal, Italian, Dutch, simplify Chinese.
Package Includes: 1 * Backup Monitor 1 * Backup Camera 1 * Remote Controller 1 * Extension Cable (66ft) 1 * Video & Power Cable 1 * Veclesus Thanks Card 1 * User Manual for Backup Camera System 1 * U Shaped Bracket & Suction Cup Bracket Installation
Guide INSTALLATION VIDEO:
https: //youtu. be/yc65nA47Pog
