MOOKEERF PL259 CB Coax Cable 50ft, RG8 UHF Male PL-259 Cable 50 Ohm UHF Jumper Cable for CB Radio, VHF Radio, SWR Meter, Antenna Analyzer
- LOW LOSS : The loss of 50ft RG8 pl259 coaxial cable at 450MHZ signal frequency is less than 1.5dB and the SWR <= 1.25. It is a low loss uhf coax cable with PL259 plugs on the both ends. There is no need to worry about signal loss for long-distance high-frequency use.

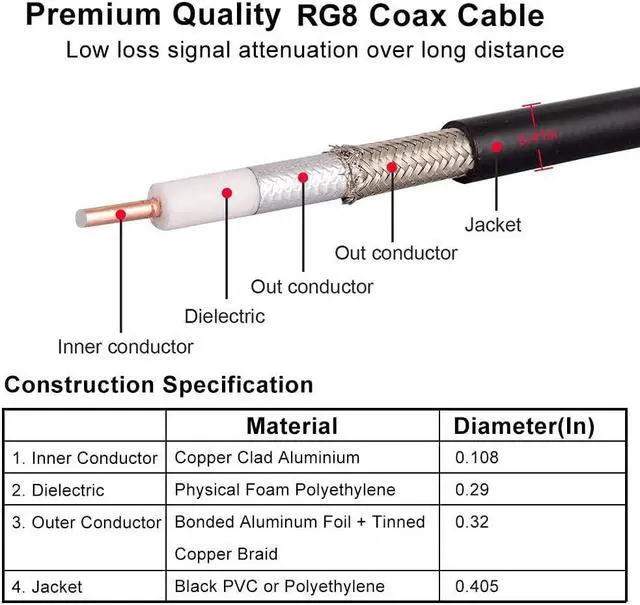

- Well Built Structure : The inner conductor of this pl259 cable is made of copper clad aluminium, and the outer conductor is made of Aluminum foil and tinned copper braid which could maximum protect the signal over large distance.This RG8 coaxial cable is equivalent to lmr400 and rg8u.

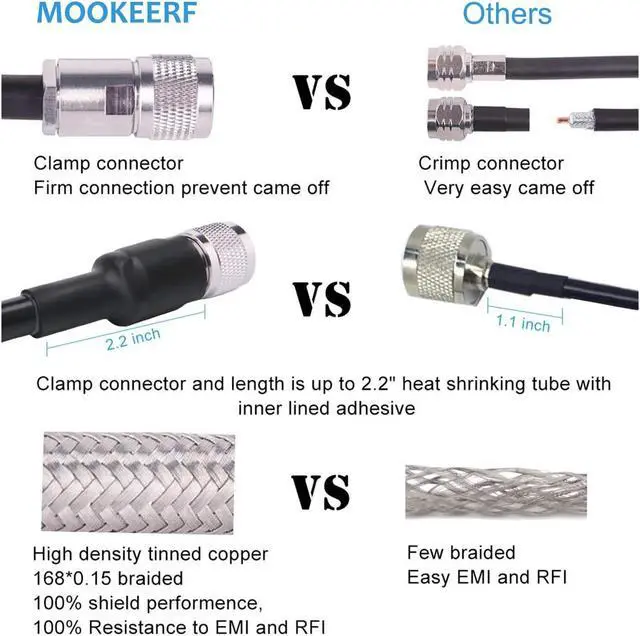

- Prevent Fall Apart or Break : Connection between UHF male connector and RG8 coaxial cable end is equipped with a 2.2" heat shrink tube with lined adhesive which is longer than other cable 's 1.1" heat shrink tube . And the connector is use clamp design but not crimp. It is very heavy duty and connectors are well integrated into cable. They are preventing breaking easily when using.
- Durable : The jacket of this cb cable i
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

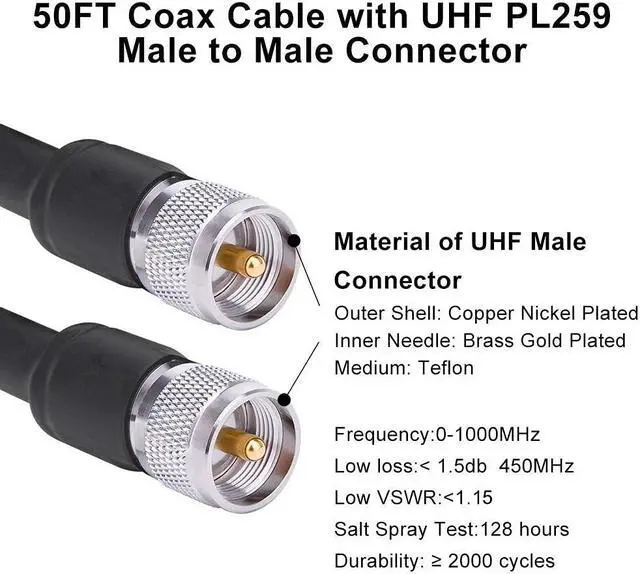

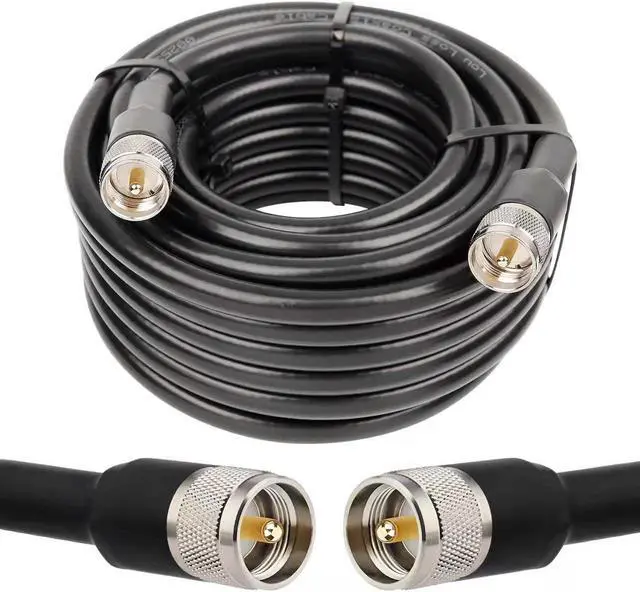

MOOKEERF UHF Male PL-259 to UHF Male PL-259 Low Loss Coax Cable RG8 UHF Jumper Cable
High density tinned copper braided and the waterproof PVC jacket are designed to maintain 100% shield performance. It would made this UHF jumper cable is really low loss and maximum protect the signal during the transmission.
This PL259 cable make professional connection between cable with solid connectors. The ends of both connector is crimp design. It would be screws snugly with your devices and the uhf connector would not fell apart.
Used for antennas, antenna analyzer, dummy load, radio scanner, ham radio transceiver, SWR METER, CB Radio hand-held & amateur radio equipment.
Cable length: 50ft
Cable type: Low Loss RG8 Cable
Impedance: 50 Ohm
Connector: UHF PL259 Male
Frequency: 0 - 1000MHz
Min.
Bend Radius (Install): 2in
Maximum tensile strength: 21.3I b
Operating Temp: -55 to 150
Package included:
1 x RG8 PL259 UHF Male Cable
High density tinned copper braided and the waterproof PVC jacket are designed to maintain 100% shield performance. It would made this UHF jumper cable is really low loss and maximum protect the signal during the transmission.
This PL259 cable make professional connection between cable with solid connectors. The ends of both connector is crimp design. It would be screws snugly with your devices and the uhf connector would not fell apart.
Used for antennas, antenna analyzer, dummy load, radio scanner, ham radio transceiver, SWR METER, CB Radio hand-held & amateur radio equipment.
Specifications
:Cable length: 50ft
Cable type: Low Loss RG8 Cable
Impedance: 50 Ohm
Connector: UHF PL259 Male
Frequency: 0 - 1000MHz
Min.
Bend Radius (Install): 2in
Maximum tensile strength: 21.3I b
Operating Temp: -55 to 150
Package included:
1 x RG8 PL259 UHF Male Cable
