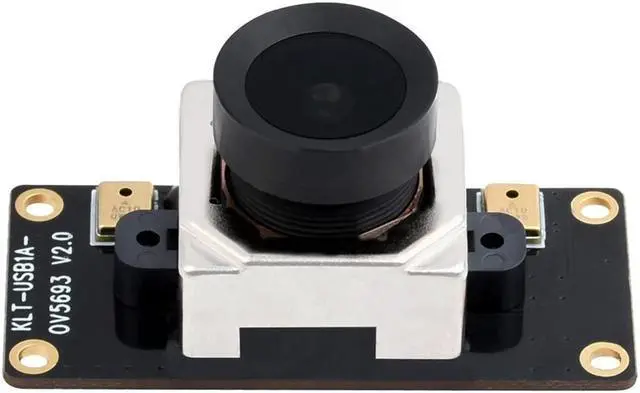

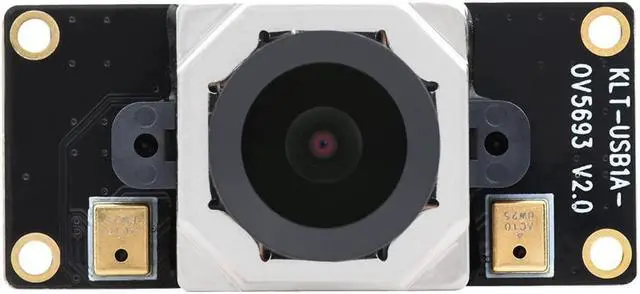

Coolwell OV5693 5MP USB Camera Module Supports Raspberry Pi Jetson Nano PC Fixed-Focus USB 2.0 Port Auto Focusing M12 Camera Module 135° Wide View
- 5MP M12 Camera Module: OV5693 Sensor, USB2.0 Port, Auto Focusing
- OV5693 Camera module, works with popular mini PC like Raspberry Pi, Jetson Nano, Windows PC
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

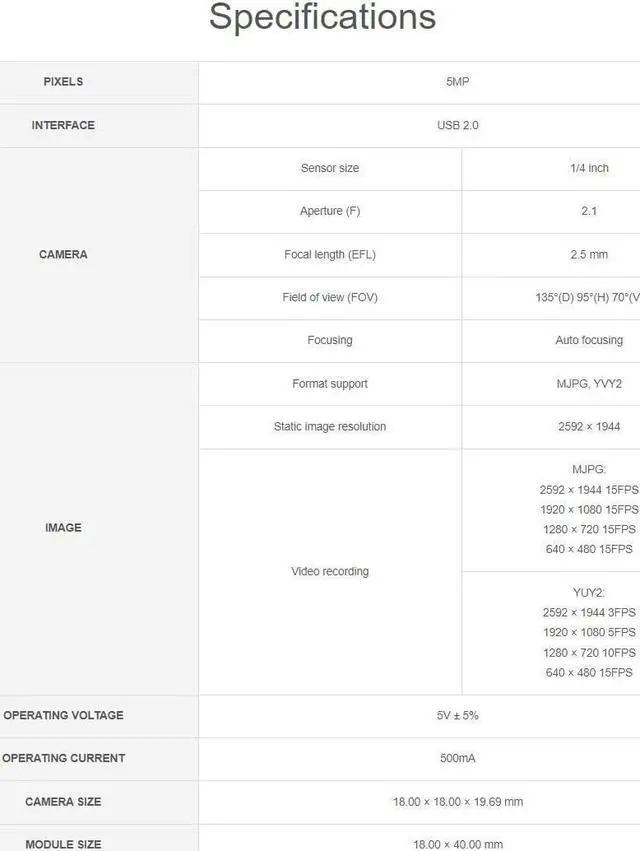

Specification
DSP: Automatic white balance (AWB) \Automatic exposure (AEC) \Automatic gain control (AGC)
Camera:
CCD Size: 1/4inch
Aperture (F): 2.1
Focus length (EFL): 2.5 mm
Field of View (FOV): 135°
Focus Type: Auto focus
Interface: USB 2.0
Image:
-Format: MJPG, YUY2
-Static image resolution: 2592 × 1944
-Video recording (MJPG):
--15 FPS 2592 × 1944
--15 FPS 1920 × 1080
--15 FPS 1280 × 720
-Video recording (YUY2)
--3 FPS 2592 × 1944
--5 FPS 1920 × 1080
--10 FPS 1280 × 720
--15 FPS 640 × 480
Operating Voltage: 5V ± 5%
Operating Temperature: 0°C ~ 50°C
Len Size: 18.00 × 18.00 × 19.39 mm
Dimensions: 18.00 × 36.00 mm
OS Support: Windows, Linux, MacOS
Package include
1. OV5693 5MP USB Camera (A) x1
DSP: Automatic white balance (AWB) \Automatic exposure (AEC) \Automatic gain control (AGC)
Camera:
CCD Size: 1/4inch
Aperture (F): 2.1
Focus length (EFL): 2.5 mm
Field of View (FOV): 135°
Focus Type: Auto focus
Interface: USB 2.0
Image:
-Format: MJPG, YUY2
-Static image resolution: 2592 × 1944
-Video recording (MJPG):
--15 FPS 2592 × 1944
--15 FPS 1920 × 1080
--15 FPS 1280 × 720
-Video recording (YUY2)
--3 FPS 2592 × 1944
--5 FPS 1920 × 1080
--10 FPS 1280 × 720
--15 FPS 640 × 480
Operating Voltage: 5V ± 5%
Operating Temperature: 0°C ~ 50°C
Len Size: 18.00 × 18.00 × 19.39 mm
Dimensions: 18.00 × 36.00 mm
OS Support: Windows, Linux, MacOS
Package include
1. OV5693 5MP USB Camera (A) x1
