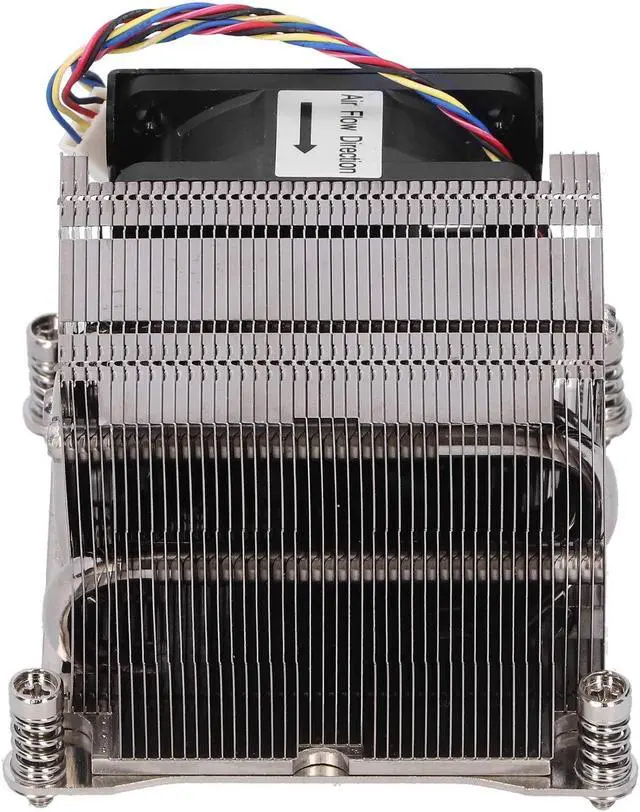

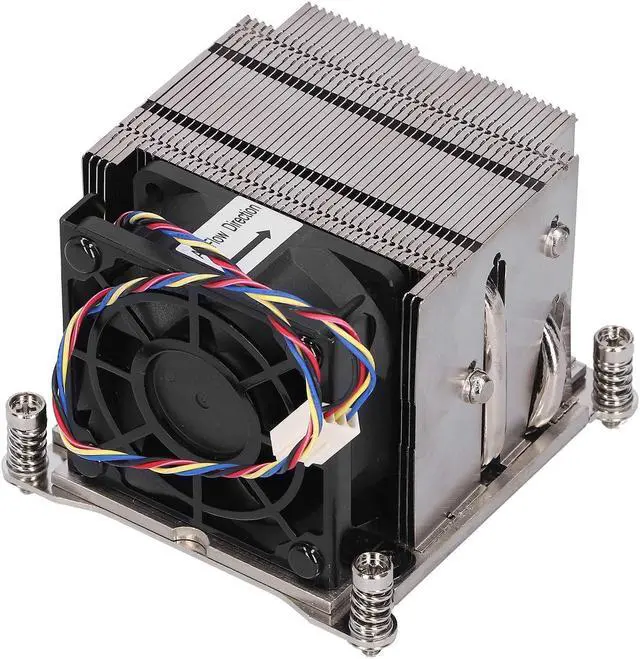

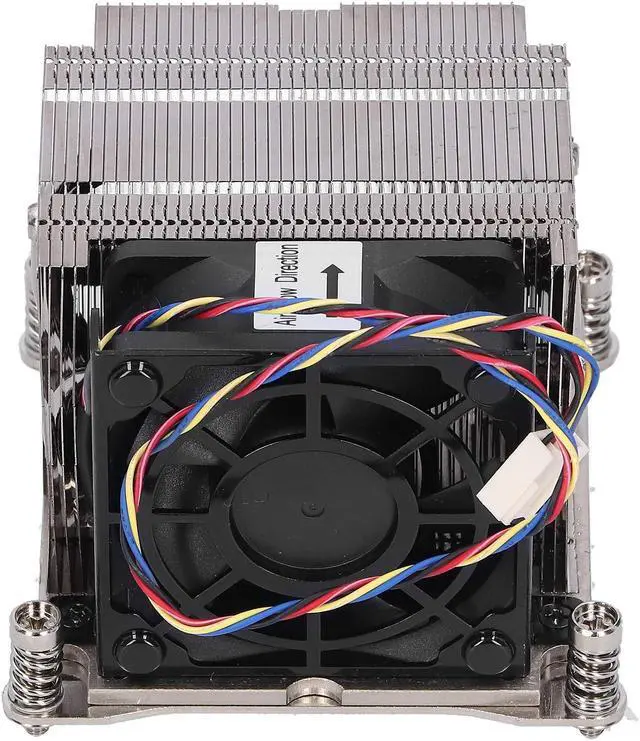

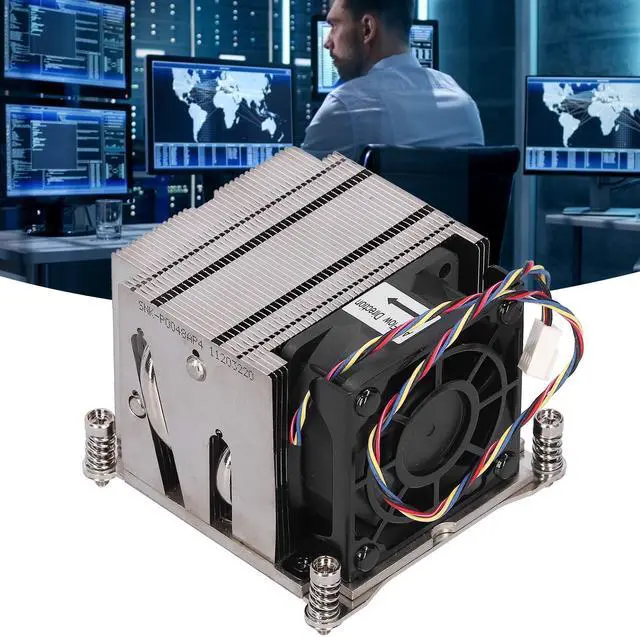

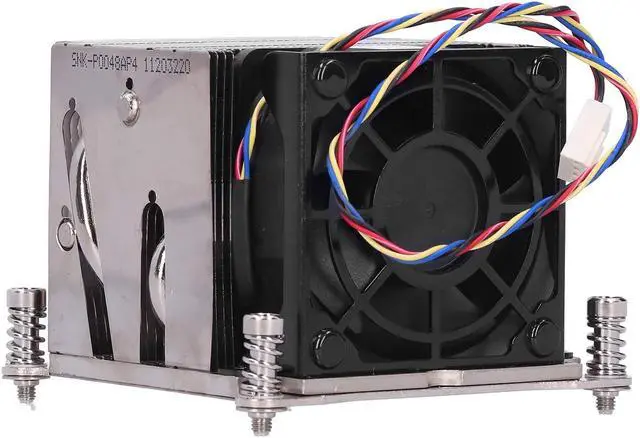

P0048AP4 CPU Heat Sink 2U Active Computer Cooling Fan for Socket LGA2011 /Narrow ILM

Specification:
Item Type: CPU Heat Sink
Model: P0048AP4
CPU Socket Compatibility: FCLGA2011 ( and narrowband ILM)
Speed: 8400 rpm
Power Connector: 4 pin PWM
Colour: Black
Heat Sink Fan Installation Type: Horizontal
Maximum CPU Heat Sink Height: Approx. 65mm / 2.6 in
Height: Approx. 65mm / 2.6 in
Width: Approx. 80mm / 3.1 in
Depth: Approx. 85mm / 3.3 in
Compatibility: Support for Intel Xeon processor for E5 2600/E5 2600 v2/E5 2600 v3 series

How to Use:

1. Take out the cooling fan from the package, support for Intel Socket LGA2011 (Socket R) and narrow independent loading mechanism (ILM). Before installing the heat sink, please check that the motherboard is equipped with ILM.

2. By default, the ILM mounting bracket has been pre installed on the bottom of the radiator. If the motherboard is equipped with a narrow ILM, follow the instructions in Figure 1 to replace the default ILM mounting bracket with a narrow ILM mounting bracket.

3. Remove the protective cover of the thermal interface material (TIM). The required amount has been pre applied on the bottom of the heat sink. Check if the pre coated TIM is damaged

4. Place the heat sink directly on upper of the CPU so that the four heat sink mounting screws are aligned with the four heat sink mounting studs on the ILM and are in place. The heat sink must be correctly aligned with the direction of the system cooling air. Please note that when tightening the four heat sink mounting screws, do not install the heat sink cooling fan on the heat sink body.

Package List:

1 x Heat Sink
2 x Bracket
