USB to LoRa Data Transfer Module Based On SX1262, 850~930MHz Frequency, Suitable for Data Acquisition in Industry and Agriculture, with TCXO Crystal Oscillator

Introduction

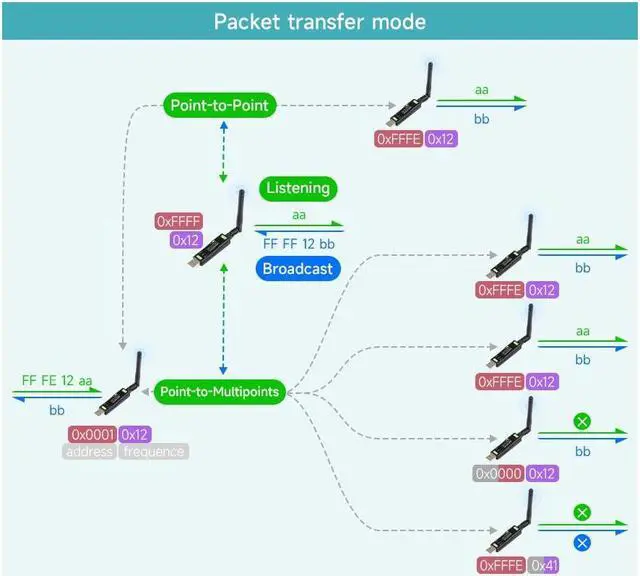

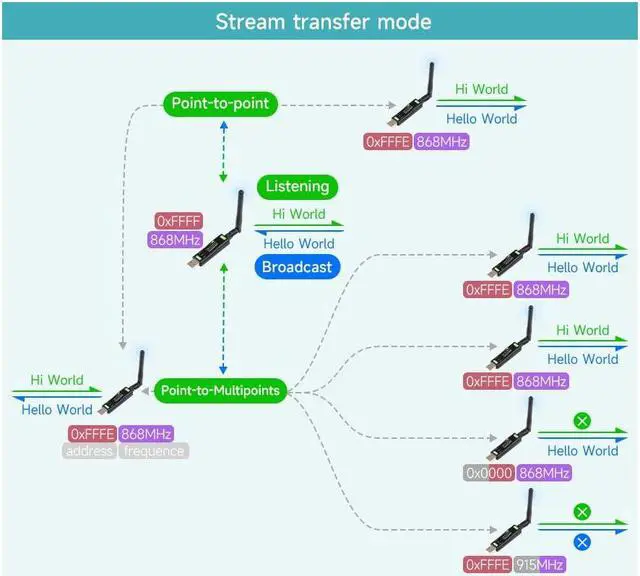

The USB-TO-LoRa-xF is a wireless data transfer unit with USB interfaces based on the SX1262 module. Adopts LoRa Modulate and Demodulate technology, with the advantages of anti-interference and long-distance communication (up to 5KM). Supports point-to-point, point-to-multipoint, relay network, AES, etc. Compact size and easy to install, suitable for the wireless data transmission and device control of industry standard or non-standard user protocol

Features

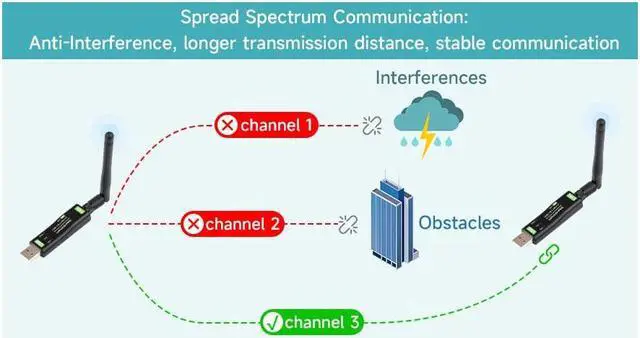

Adopts LoRa Modulate and Demodulate technology, anti-interference and long-distance communication
Adopts the original SX1262 chip, with -148dBm reception sensitivity and 22dBm emitt power
Supports preamble detection, with CRC, automatic packetization, 960 bytes cache functions
Supports LBT sending, RSSI output, AT command configuration
AES communication to ensure data transmission security

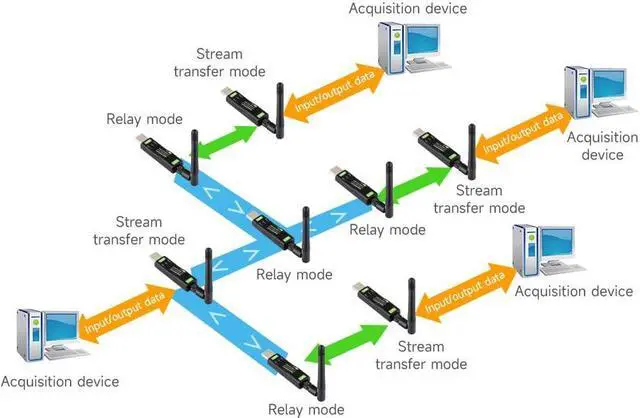

Supports multi-level relay networking to increase the wireless communication distance
Supports host configuration and firmware upgrade (support firmware customization for batch order)

Comes with Online Resources and Manual: n9. cl/nj6h7

Specifications

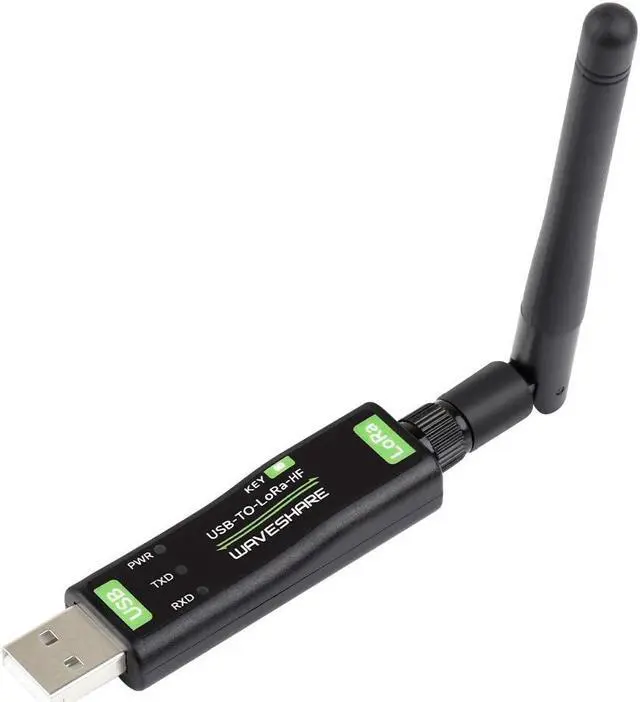

1)Appearance
Interfaces: USB Type A, SMA-KE
female connector: 6dBi omni-directional antenna × 1
Enclosure: ABS case
Dimension: 56.40 × 18.40 × 12.52 mm

2)Wireless Parameters
Frequency Band: Sub-GHz (410~510MHz, 850~930MHz)
Signal Modulation: LoRa
Encryption Type: AES128
Emit Power: +22dBm Max
Reception Sensitivity: -148dBm

3)SERIAL Parameters
Baud Rate: 1200 ~ 115200bps
Parity Bit: None, Odd, Even
Data Bit: 8 ~ 9 bits
Flow Control: N/A

4)Environmental Requirement
Operating Temperature: TCXO version: 0 ~ 85
Humidity Range: 5% ~ 95% relative humidity

Package Content
USB-TO-LoRa-HF x1
Antenna (850~930MHz) x1
