$68.99
Meet Your Seller

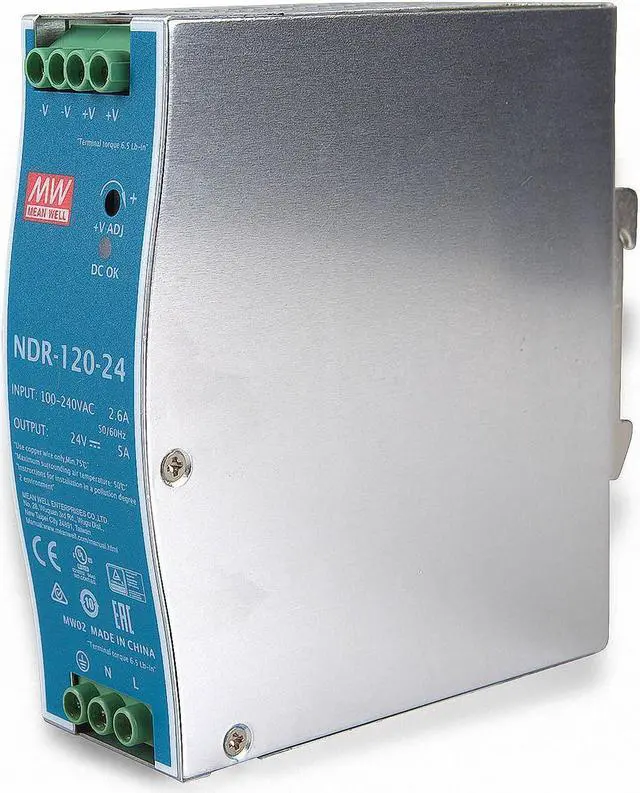

MeanWell NDR-120-24 120 W 24 V 5 A DIN Rail Power Supply DIN-Rail

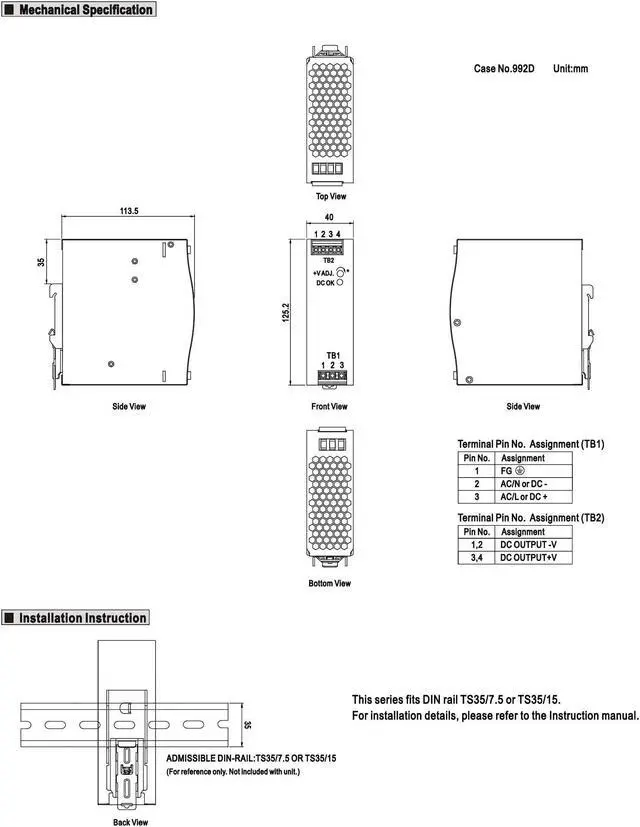

- Length: 125.5 mm, width: 40 mm, height: 113.5 mm
- Package dimensions: 6.35 L x 14.99 H x 14.48 W (Zm)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Can be mounted directly on the DIN rail Universal input Closed design, touch-protected screw connections Overload protection by current limitation, auto recovery Protected against short circuit, overload, overvoltage LED display for
DC OK power supply type: DIN
rail power supply stabilization: constant
voltage topology: AC/DC
converter input voltage: 115V / 230V (universal) output voltage: 24V output current.: 5A
Power: 5A 20 W input voltage (min...
max): 90...
264VAC output voltage (minmax): 24...
28VDC efficiency: 88%
length: 125.5
mm width: 40
mm height: 113.5
mm connection input: screw
terminals connection output: screw terminals
DC OK power supply type: DIN
rail power supply stabilization: constant
voltage topology: AC/DC
converter input voltage: 115V / 230V (universal) output voltage: 24V output current.: 5A
Power: 5A 20 W input voltage (min...
max): 90...
264VAC output voltage (minmax): 24...
28VDC efficiency: 88%
length: 125.5
mm width: 40
mm height: 113.5
mm connection input: screw
terminals connection output: screw terminals
