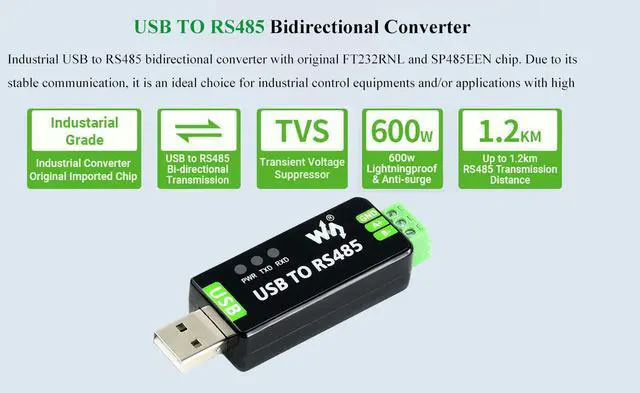

UeeKKoo 2PCS Industrial USB to RS485 Bidirectional Converter Adapter Board with Original FT232RNL and SP485EEN Chip Fast Communication up to 1.2km Transmission Distance Embed Protection Circuits

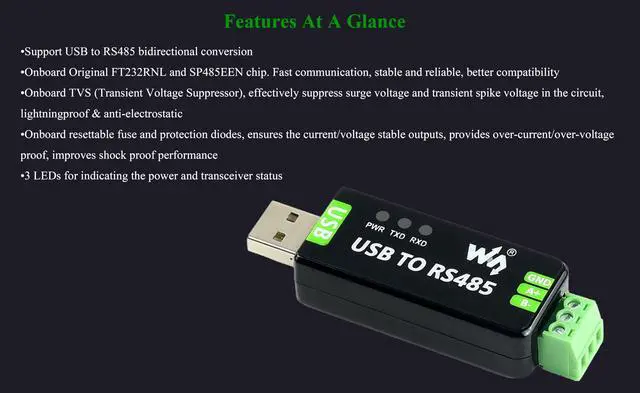

Features
Support USB to RS485 bidirectional conversion

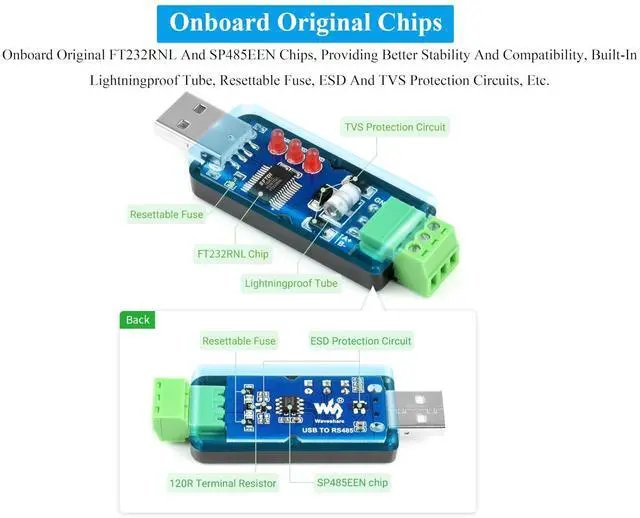

Onboard Original FT232RNL and SP485EEN chip. Fast communication, stable and reliable, better compatibility
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, light-ningproof & anti-electrostatic
Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
3 LEDs for indicating the power and transceiver status

Specifications

Product type: industrial converter
Baudrate: 300-921600bps
Host port: USB
Device port: RS485

(1) USB
Operating voltage: 5V
Connector: USB-A
Protection: 200mA self-recovery fuse, ESD protection
Transmission distance: about 5m

(2) RS485
Connector: screw terminal
Pins: A+, B-, GND
Direction control: hardware automatic control
Protection: 600W lightning-proof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
Transmission distance: About 1.2 km (low rate)
Transmission mode: point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)

(3) LED indicators
PWR: red power indicator, light up when there is USB connection and voltage is detected
TXD: red TX indicator, light up when the USB port sends data
RXD: red RX indicator, light up when the device ports send data back

(4) Operating environment
Temperature: -15 ~ 70
Humidity: 5%RH ~ 95%RH

Operating system: Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP

Online Development Resources/User Manual: bit. ly/3H9CVqY

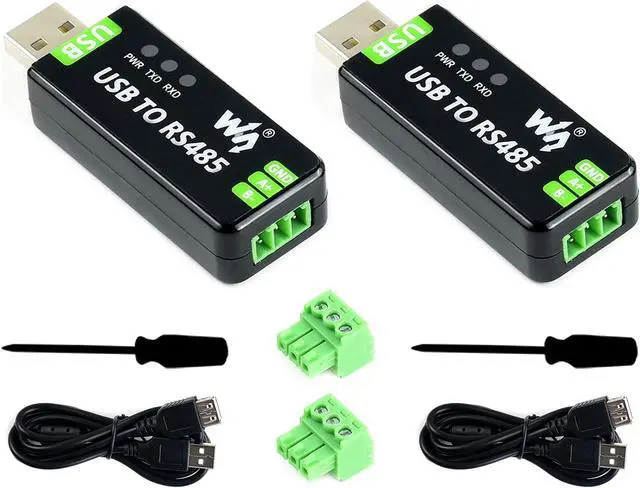

PACKAGE CONTENT

1. USB TO RS485 x2
2. USB-A male to female cable x2
3. Screwdriver x2
