ANMBEST DB25 Solderless Breakout Connector with 5Ft 24AWG Replacement Cable, Metal Shell RS232 D-SUB Serial to 25-Pin Port Terminal Male Adapter Connector Breakout Board

These DB25 Male Solderless Connectors are used to terminate the connection type of a cable and facilitate commissioning equipment of project. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.
Technical

Specifications

:
Name: DB25 solderless module with cablePlug type: maleConnector

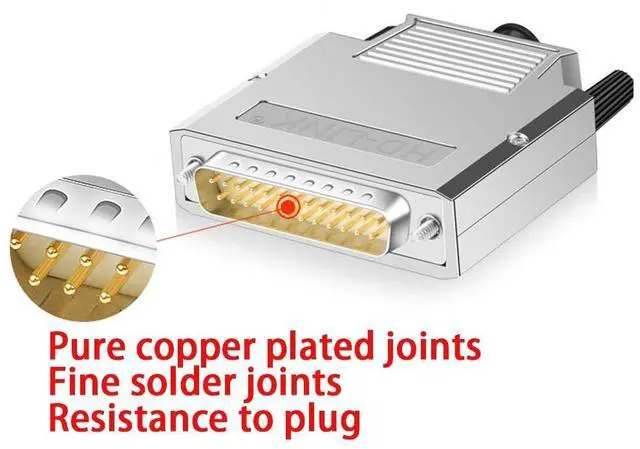

material: pure copper plated jointContact
Material: CopperHousing

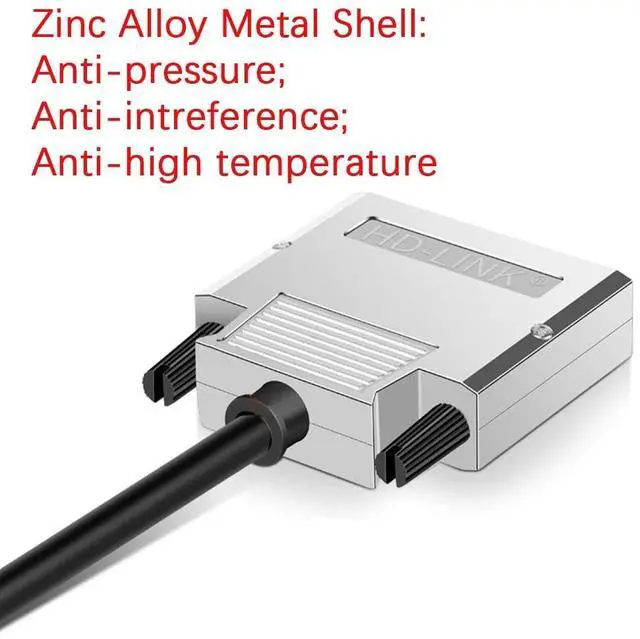

material: Zinc
alloy metal shellShell type: Screw lockCable
Length: 1.5 m/5FtCable
Specification: 24AWG
Torque: 0.2N m ( 1.7L b-In.
)Thickness: 16mm/
0.63A pplication: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.
Size: 57 mm56 mm16 mm/ 2.242.

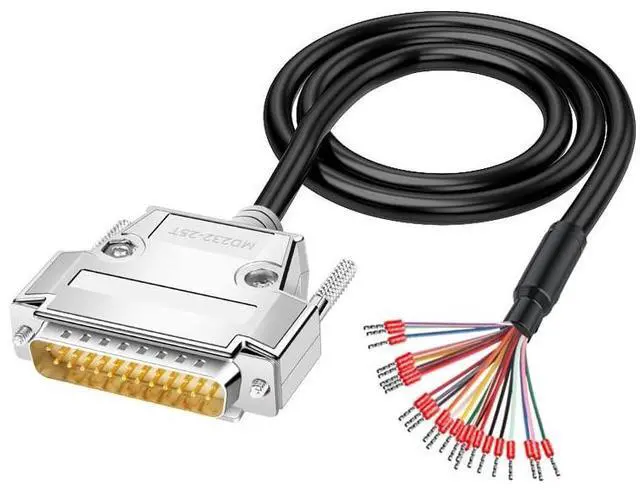

200.63P ackage includes: 1 x DB25 Male Solderless Connectors with 1.5 m Bare Wire End Cable
