Lsgoodcare DIY Peltier Cooler Kit 12V Semiconductor Refrigeration Thermoelectric Cooler Fridge Peltier Cooling System TEC1-12706 Peltier Heatsink Module kit with Fan + Water Cooling Tube

1. Great DIY peltier kit for small space cooling in hot summer, used for plate cooling, test bench, pet bed cooling, such as chicken, little dog. 2. Save space, small size can be use in anywhere, well made compact structure DIY peltier cooler kit, long term use. 3. The DIY thermoelectric cooler with good cooling performance, No noise, no vibration, no refrigerant required.
Specification:
Material: AluminumPower
Supply: DC 12VPower
Cnsumption: 72W(Under the condition of 12V voltage, the power can only reach about 70%.
)Maximum Cooling Space: 10L (300*180*200mm) volume.

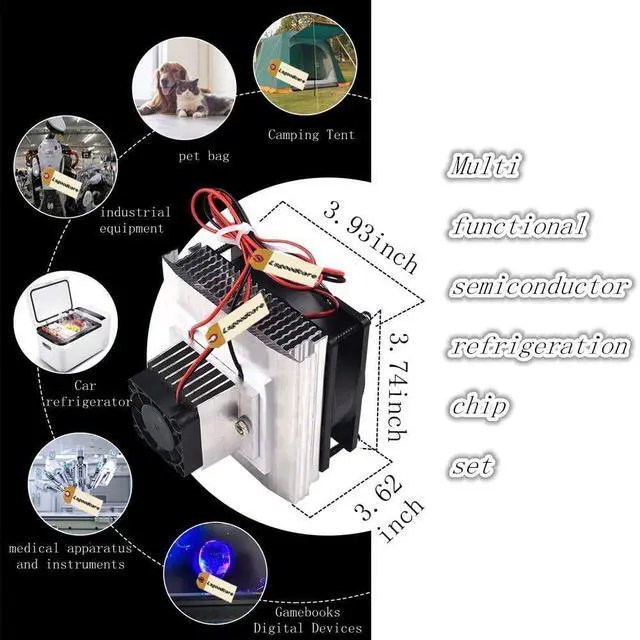

Size: Approx. 4.7 * 3.9 * 3.1 inchPackage
Included: One Pcs Peltier

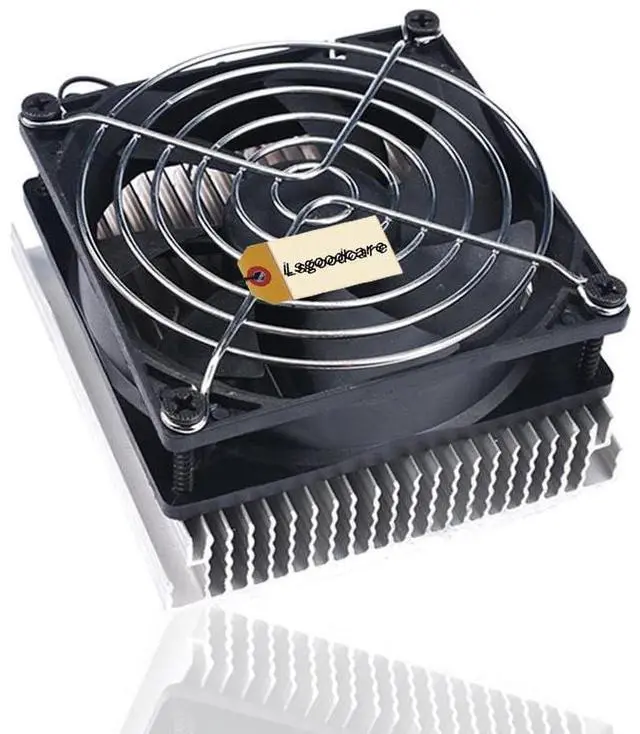

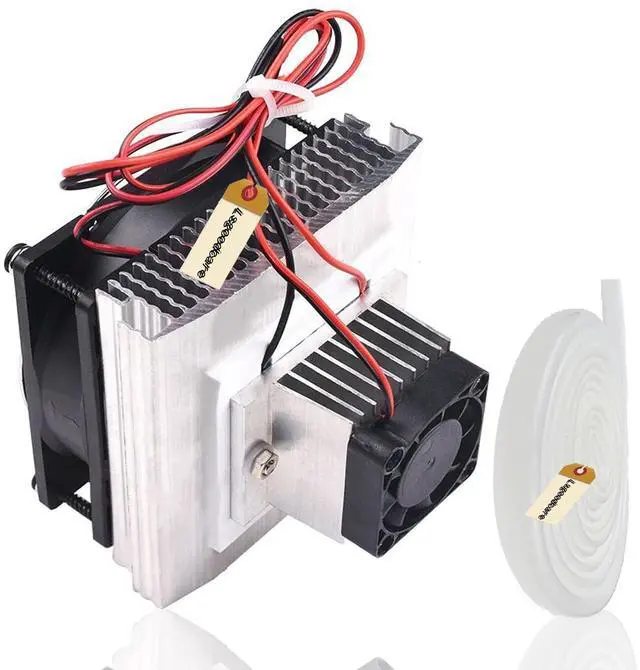

Cooler Kit:
1: Fan
net cover 2: Cooling
fan 3: Radiator
4: Semiconductor
refrigeration film 5: Thermal
insulation gasket 6: Conductive
cold film 7: Conductive

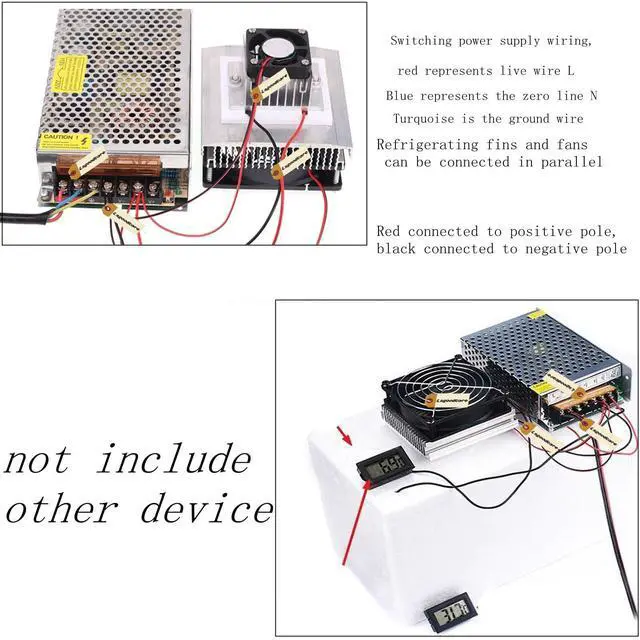

cooling fanHow to use: 1. Our DIY Peltier Cooler Kit Completely assembled. TEC1-12706 semiconductor chilling plate equipped with cool fan for better heat dissipation, so they should "run together". You don't need disassemble the device to sort the wires and don't need separate switch for each fan. 2. There are 6 wires, you can see 3 red wires(two fans+TEC1-12706 chilling plate)you can twist and connect them together, connect the12v battery positive electrode; 3 black wires twist together connect the12v battery negative electrode.

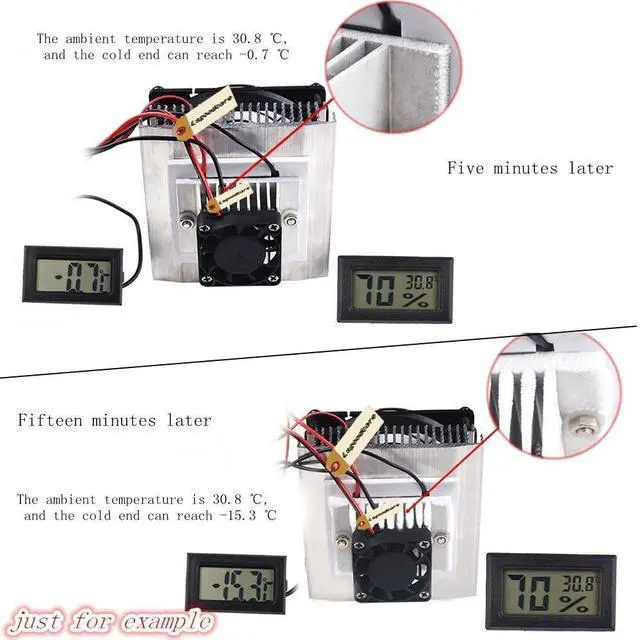

Attention: 1. The cooling space of the DIY Thermoelectric Cooler should not exceed 10L (300*180*200mm) volume. 2. The Peltier Cooler can only cooling the cabinet of 10L volume when the refrigerator is empty (the refrigerator does not put anything), and the cooling effect is about 5-6 degrees lower than normal temperature. 3. Under the condition of 12V voltage, the power can only reach about 70%.
