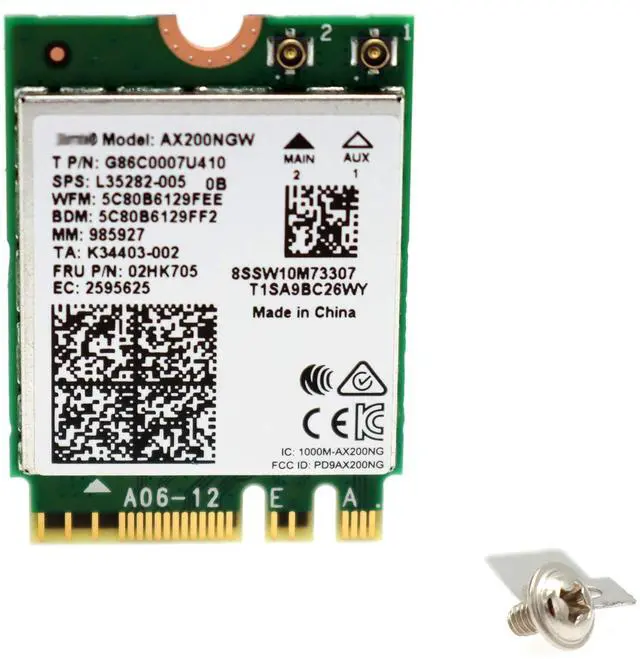

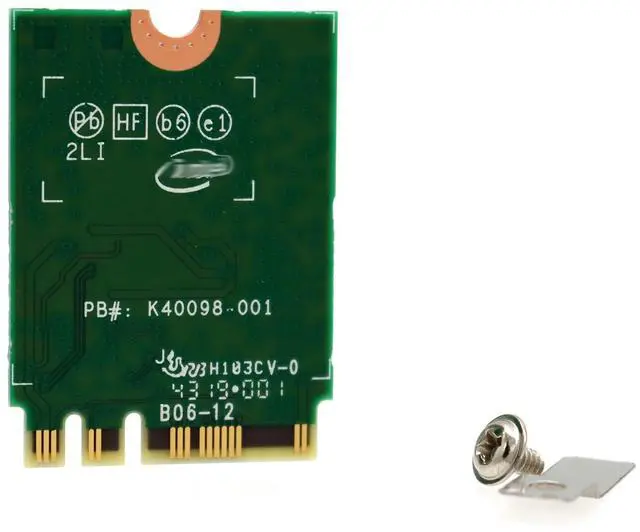

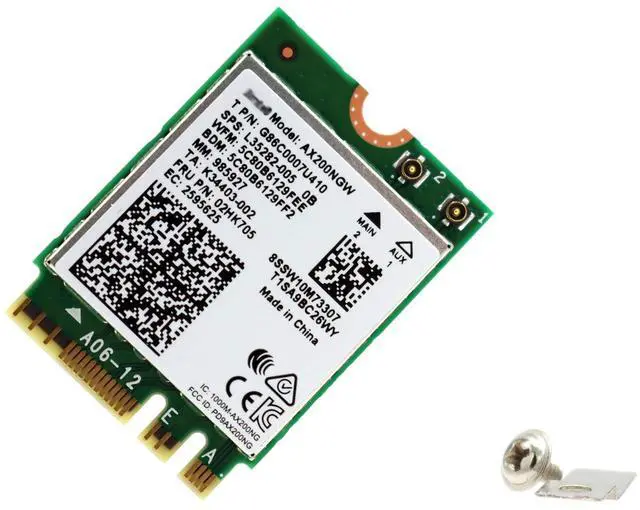

Deal4GO AX200NGW Dual-Band Wi-Fi 6 802.11AX 2.4Gbps MU-MiMO M.2 NGFF Wireless WiFi Adapter with Bluetooth 5.0 for Intel AX200 WLAN Card Module Windows 10 64-bit

The Wireless-AC AX200 adapter supports Bluetooth+ 5 and 2x2 802.11 ac Wi-Fi including wave features such as 160MHz channels, delivering up to 2.4G bps and downlink MU-MIMO. These new features deliver a significant increase in user speeds in dense deployments, supporting fast downloads and long battery life compared to legacy 802.11 ac devices. Combined with Core processors and exceptional Intel wireless innovations, the Wireless-AC AX200 can provide Gigabit download speed and dramatically improve your connected experience at home, work, or on the go.
SpecificationsModel: AX200NGW
Connector interface: M. 2 2230 or M. 2 1216 (Not for (M2: CNVi))System
Interface Type: PCIe, USB
Antenna connector: IPEX 4 / iPX 4
ConnectorWireless data rate: 5GHz up to 1730Mbps (You router must support 802.11AX ) 2.4GH z up to 574Mbps (160MHz)
Max speed: If your router support 802.11AX, the max speed can up to 2.4G bpsStreams:
2X2Bluetooth: Bluetooth 5.0A ntenna
Diversity:
SupportedMU-MIMO:
YesFrequency: Dual Band 2.4 /5GHzIEEE
WLAN Standard: IEEE 802.11 a/b/g/n/ac, 802.11 d, 802.11 e, 802.11 h, 802.11 i, 802.11 w, 802.11 r, 802.11 k, 802.11 vWi-Fi
CERTIFIED*: 802.11 axOperating
Systems: Windows 10 32/64-bit (NOt support Windows 7/8/ 8.1 )Dimension (H x W x
D): 22 x 30 x 2.4 mmPackage
Includes: 1x AX200NGW M2 NGFF WLAN Card1x Screws1x Holder Bracket
