24V Gigabit POE Injector ^^ 12/24V (12-36V) DC Input ^^ 24V/1A 24W DC PoE Out ^^ Passive Mode B Solar PoE Injector for Loco5AC,NS- EdgeRouterX,UniFi AC Lite,RP-5AC-G2, Force180/200/300
- Wide range input 12-36VDC, output 24VDC 1A 24W, PoE mode B, power over 2 pairs 4,5(+) 7,8(-)

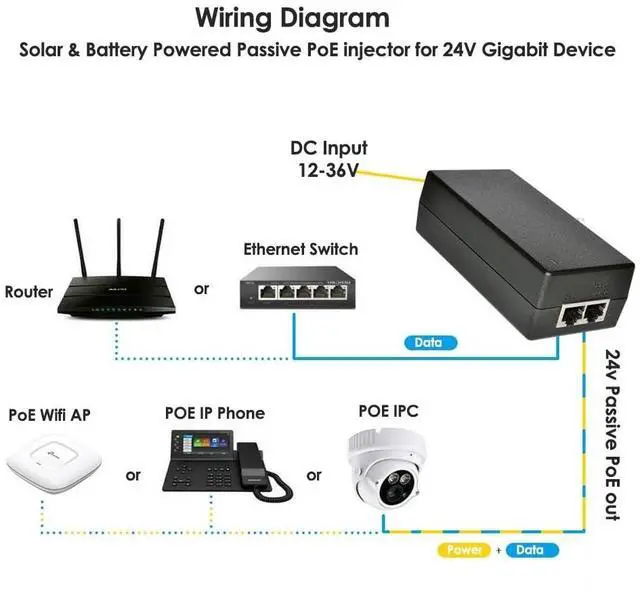

- This Power Over Ethernet adapter works inline for remote infrastructure applications including PtP and PmP devices from Ubiquiti and Mikrotik such as Loco5AC,NS- EdgeRouterX, UniFi AC Lite, RP-5AC-G2, plus Force 180/200/300, solar CCTV, and RV solar setups.
- 24 volt 24W Passive PoE powers most high performance PtP and PmP radios. Diodes isolate the RJ45 power input from the DC power input, protecting your investment. Designed to work with your existing variable power source - Solar, DC, or PoE. Data rate is 10/100/1000 Gigabit
- One Gigabit Ethernet port input and one PoE Gigabit Ethernet port output offer full duplex 2Gbps Ethernet speeds, Integrated Power over Ethernet (PoE) Injector + DC to DC Convertor.
- Environmentally hardened -40C to 80C, (-40F to 176F) operating temperature; Plug & play, no configuration is needed, simply connect a PoE network device, accommodates most installat
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DC to DC Gigabit PoE Injector, 24V 1A Passive PoEIdeal for Passive Solar and Battery Applications, Ubiquiti and MikroTik DevicesTransforms a 12-36 volt DC source into a regulated 24 volts, ideal for powering passive PoE devices like Point to Point or Point to Multi-Point Radios and WiFi access points including devices from Ubiquiti and MikroTik such as Loco5AC, NS- EdgeRouterX, UniFi AC Lite, RP-5AC-G2, plus Cambium Force 180/200/300 and others. It can output 24 watts, plenty for most IP phones and cameras. Diodes isolate the RJ45 power input from DC input, making it compatible with variable solar, DC, PoE power sources.

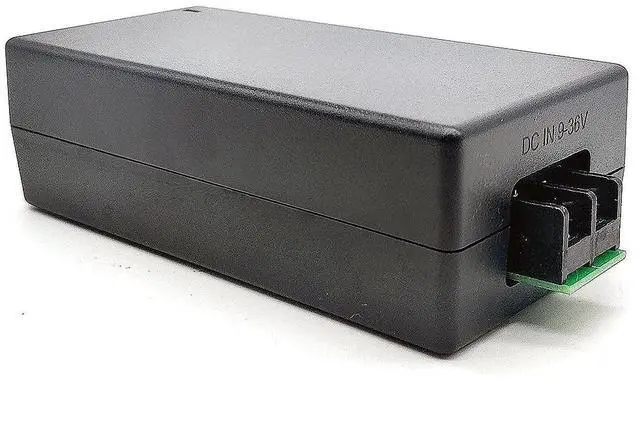

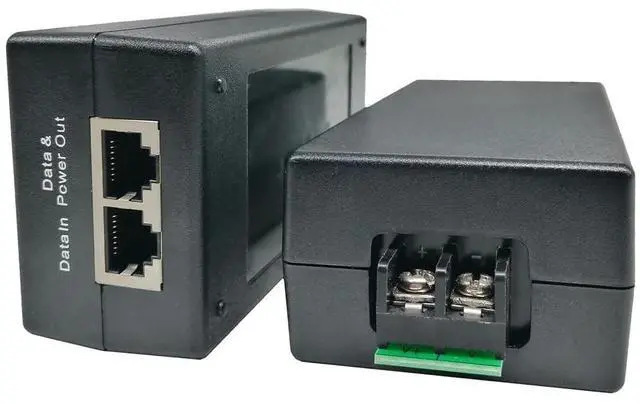

Features: 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)Support 10/100/1000Base-TXExtensive LED indicators for PoE diagnosticsDC 12-36V Terminal Block Power inputs Solar and Battery ApplicationsEnvironmentally Hardened -40C to 80C (-40F to 176F) operating temperature
Features: 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)Support 10/100/1000Base-TXExtensive LED indicators for PoE diagnosticsDC 12-36V Terminal Block Power inputs Solar and Battery ApplicationsEnvironmentally Hardened -40C to 80C (-40F to 176F) operating temperature
