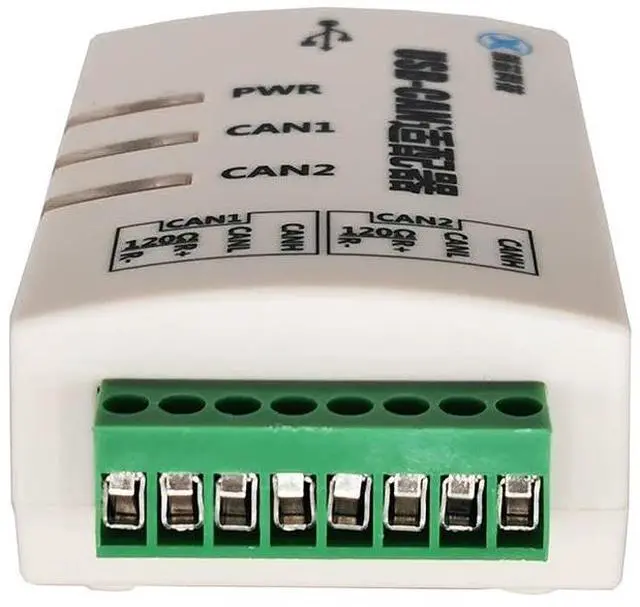

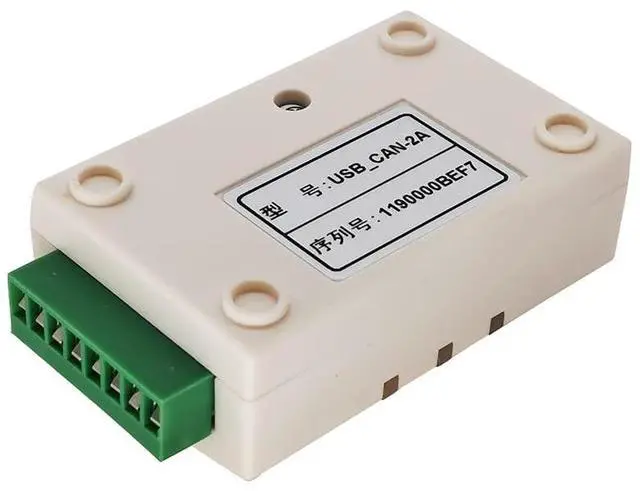

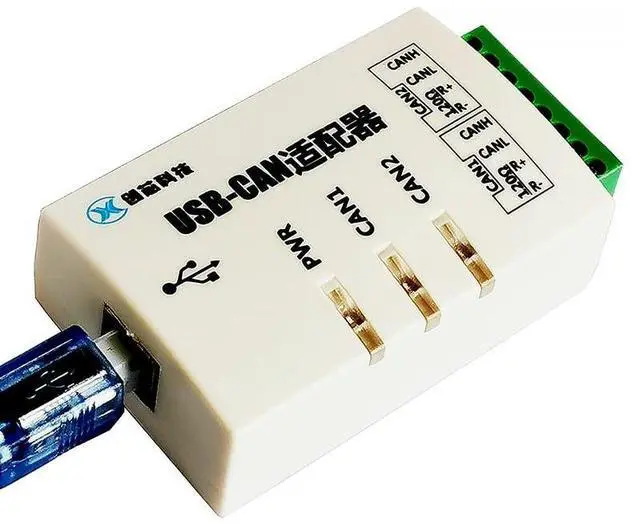

USB to CAN USB CAN-2A Non-Isolated Intelligent 2-Way CAN Interface Card ZLG Compatible

Protocol conversion of USB and CAN busWith 2 CAN interfacesUSB interface supports USB 2.0, compatible wit USB 1.1S upport CAN 2.0A and CAN 2.0B protocols, support standard frames and extended frames; Support two-way transmission CAN send, CAN receiveA support data frame, remote frame formatThe baud rate of the CAN controller is optional, between 10Kbps-1Mbps, and can be software configuredThe CAN bus is not isolated from
USBTraffic: Two CAN channels (running at the same time) reach 8500 frames / s for receiving and transmitting 8500 frames / s; (Two channels receive 8500 frames / s at the same time, USB speed can reach 17000 frames / s, no frame loss)The internal CAN transmit buffer capacity is 1000 frames per channel (automatic retransmission if the transmit fails), and the CAN receive buffer capacity is 2000 frames per channelUSB bus direct power supply, no external power supply requiredWorking temperature: -40~85CShell
size: 77*44*24mm.
