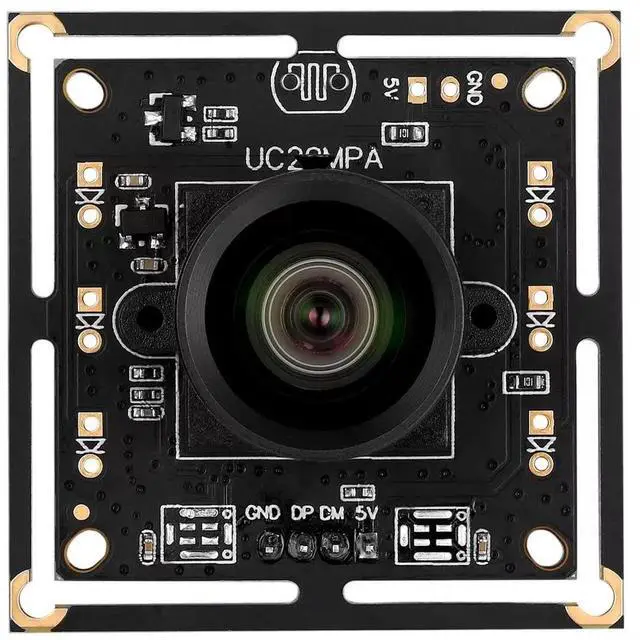

Spinel 2MP Color Global Shutter USB Camera Module OG02B10 Sensor with 88 Degree 3.24mm Non-Distortion Lens, Support 1600x1200pixels up to 60fps, UVC Compliant, Focus Adjustable, P/N: UC20MPA_ND

Color Global Shutter, 2MP resolution, support 1600x1200pixels up to 60fps, MJPEG and YUV2(YUYV) streaming.

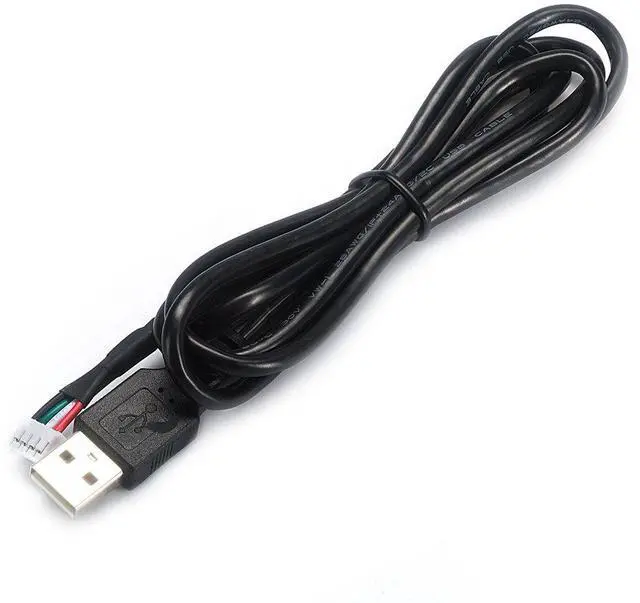

Plug-&-Play (UVC compliant), USB 2.0 camera module with USB2.0 cable, cable length 4ft(1.2M).
3.24mm Non-distortion lens with IR-cut filter @ 650nm for true color day images/videos (Does not work with 850nm IR illumination), viewing angle 88 degree Diagonal, focus adjustable, focus range: 20mm to Infinity.
Supported OS: Win 7/8/10, Linux, Mac, Wince and Andriod with UVC. Size: 38x38mm, weight: 12g(0.4OZ).

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

UC20MPA is a HD color global shutter USB 2.0 camera cost effectively suited for a wide range of consumer and industrial machine vison applications such as AR/VR headsets and accessories, industrial automation, robotics, agricultural drones and 3D modeling. This color global shutter camera adopts OmniVision OG02B10 sensor, capture 1600x1200 resolution images and video at 60 frame per second using advanced 3x 3 micron OmmiPixel 3-GS pixel technology, it eliminates motion artifacts and blurring, and dramatically improves low light sensitivity. The camera can be directly connected to all kinds of devices with USB port through the USB cable/cord supplied with the camera.

With various lens options and customizations offered upon request, the camera can be used for various applications.
