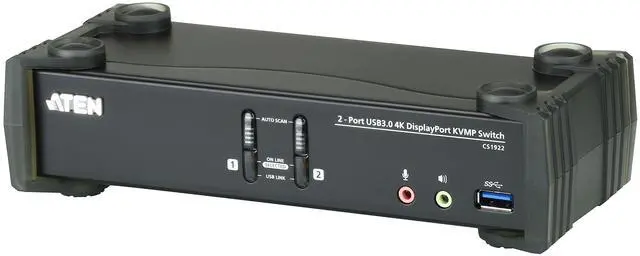

ATEN CS1922 2-Port USB 3.0 4K DisplayPort KVMP Switch (Cables Included)

Product Description

The ATEN CS1922 2-Port USB 3.0 4K DisplayPort KVMP Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers. The ATEN CS1922 offers an unprecedented performance of delivering 4K resolution, the next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operations.

As a KVM switch, the CS1922 allows users to access two DisplayPort computers from a single USB keyboard, USB mouse and monitor console. Doing so with ease, the CS1922 provides three convenient switching methods using front panel pushbuttons, mouse, or hotkeys for flexible access to any computer connected to the installation.

The unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer such as a print server, modem splitter, etc.

With its rich feature set, the CS1922 is designed to surpass all requirements in graphic design, animation, and video-editing applications. Such as CAD/CAM (computer-aided design/manufacturing). The CS1922 allows you to share the audio from each of the connected computers. HD audio transmitted by DisplayPort would offer you a different experience.

Package Contents
1x 2-Port USB 3.0 4K DisplayPort KVMP Switch
2x DisplayPort 1.2 Cable ( 1.5 m/5ft)
2x USB Cable (USB 3.0 -A to USB 3.0 -B; 1.8 m/6ft)
4x Audio Cable ( 1.8 m/6ft)
1x Power Adapter
1x User Instructions

FEATURES
2-port DisplayPort KVMP Switch with USB 3.1 Gen1 hub and 2.1 surround sound audio
One USB console controls 2 computers and 2 USB peripherals

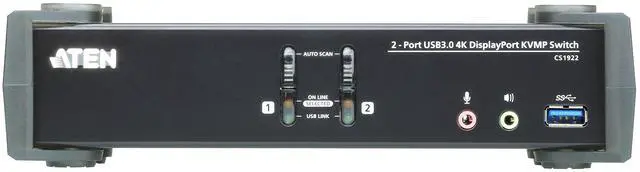

Computer selection via front panel pushbuttons, hotkeys and mouse1
Independent switching of KVM, USB, and Audio focus
Superior video quality 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
DisplayPort 1.2 compliant, HDCP compliant
Supports HD audio through DisplayPort2
Full bass response for high-quality 2.1 channel surround sound systems
Power On Detection if a computer is powered off, the CS1922 automatically switches to the next powered-on computer
Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector3
DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter4
Hot-pluggable add or remove computers without powering down the switch
Keyboard emulation/bypass feature supports most gaming keyboard
Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
Multi-platform support Windows, Mac and Linux
Multilingual keyboard mapping supports English, Japanese, French and German keyboards
Mac keyboard support and emulation5
Auto Scan Mode for monitoring all computers
Firmware upgradeable
Note:
1. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
2. HD audio through DisplayPort cannot be switched independently.
3. MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v 1.1 a display can be the last display in a DisplayPort v 1.2 chain. The PC source must be DisplayPort 1.2 compliant
4. DisplayPort Dual-Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.
5. PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with their own operating system.

---

Can't find what you're looking for?

For further information -> www. aten. com/gb/en/products/kvm/desktop-kvm-switches/cs1922/

Set Contains:

1x 2-Port USB 3.0 4K DisplayPort KVMP Switch 2x DisplayPort Cables 2x USB 3.0 Cables 4x Audio Cables 1x UK 3
