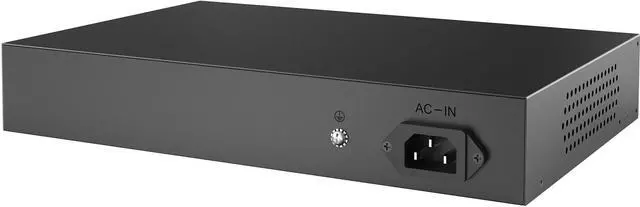

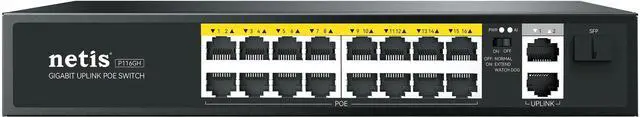

Netis P116GH Uplink POE Switch; 16 PoE Power Supply Capability, 2X 10/100/1000bt Uplink, and 1x 1000bx SFP Ports; Auto MDI/MDIX Crossover for All Ports; Non-Blocking Wire Speed Forwarding

Netis P116GH Uplink POE Switch; 16 PoE Power Supply Capability, 2x 10/100/1000bt Uplink, and 1x 1000bx SFP Ports; Auto MDI/MDIX Crossover for All Ports; Non-blocking Wire Speed Forwarding

Key Features:
- Follow IEEE 802.3 Ethernet and IEEE 802.3 u Fast Ethernet Protocol
- POE IEEE 802.3 af/at compliant Powered Device (PD)
- Supports two modes: Normal Mode/Extend+Watch Dog Mode
- Ports 1 to 16 features POE power supply capability and can be used as power over Ethernet devices; 2x 10/100/1000b-t Uplink and 1x 1000b-x SFP
- Support full duplex based on IEEE 802.3 x and half duplex based on Backpressure
- Auto MDI/MDIX crossover for all ports
- Non-blocking wire speed forwarding
- MAC address auto-learning & auto-aging
- Steel case, the total POE power budget of 240W
- Just Plug and Play

Specifications

:
- Interface: 16x 10/100M POE Ports (Data /Power); 2x 10/100/1000M RJ45 Ports (Data); 1x SFP Slot (Data)
- Store & Forwarding: Yes
- LED: PWR -
Lighting: The product is powered on; Function indication -
Lighting: The function switch is on and watch dog+ Extend Mode is enabled; Port lights -
Lighting: Port link is normal, Blinking: Data in transit
- Mode: Normal Mode; Extend+Watch Dog Mode
- Switching Capacity: 9.2G
- MAC Address Table Size: 2K
- Mode: Normal switch mode; Watch dog + Extend mode
- Data Transfer Rate: 10Mbps(Half-duplex and Full-duplex); 100Mbps(Half-duplex and Full-duplex); 1000Mbps(Full-duplex)
- Overall Dimensions (LxWxH): 10.62 x 7.08 x 1.77 inches
