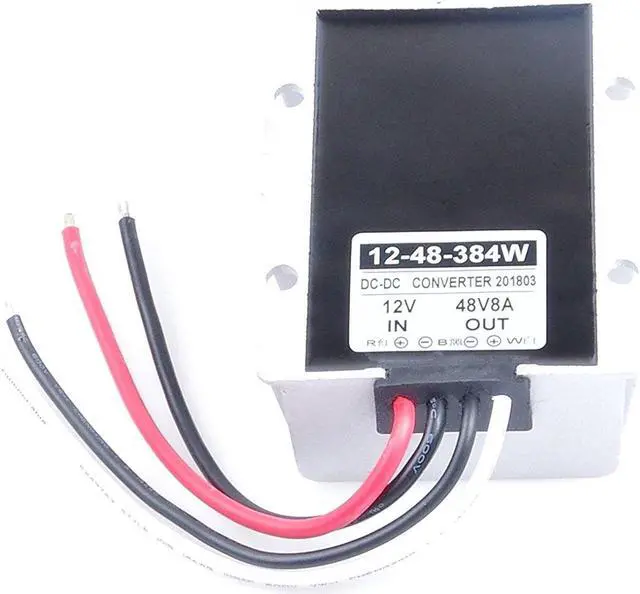

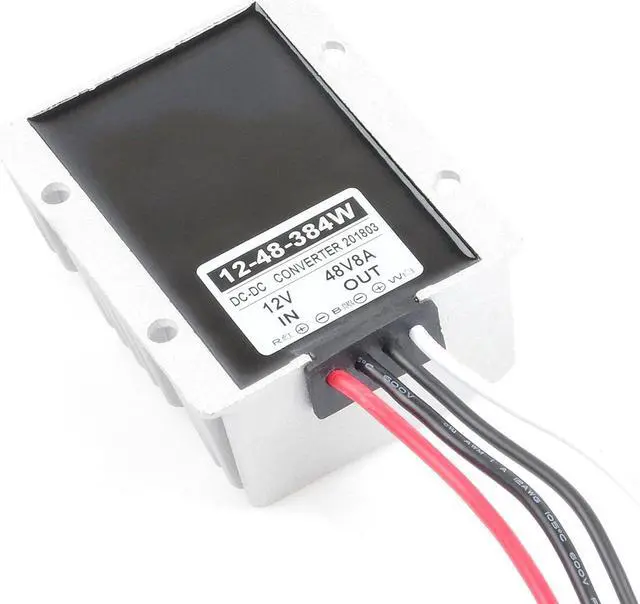

Voltage Converter Regulator DC - DC DC 12V (10-18V) Step-Up to DC 48V 8A 384W Power Boost Waterproof(in DC 12V (10-18V), 48V 8A)
- Waterproof IP68 Voltage Converter Regulator DC 12V to DC 48V 8A 384W.
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Auto-recovery when device is back to normal operating; high transfer efficiency of 95% max..
- Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.
- Widely used in bus, cmb, large trucks, motor, solar generate electricity, display screen of bus and taxi, car audio device.
+
+
Overview
Specs
Reviews
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC12V to DC 48V step-up converter, efficiency up to 95%.

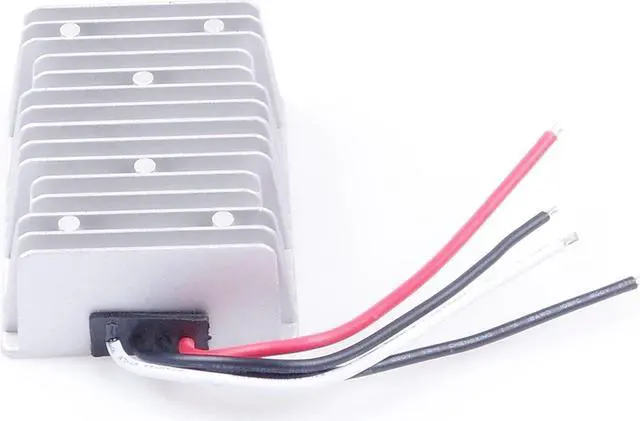

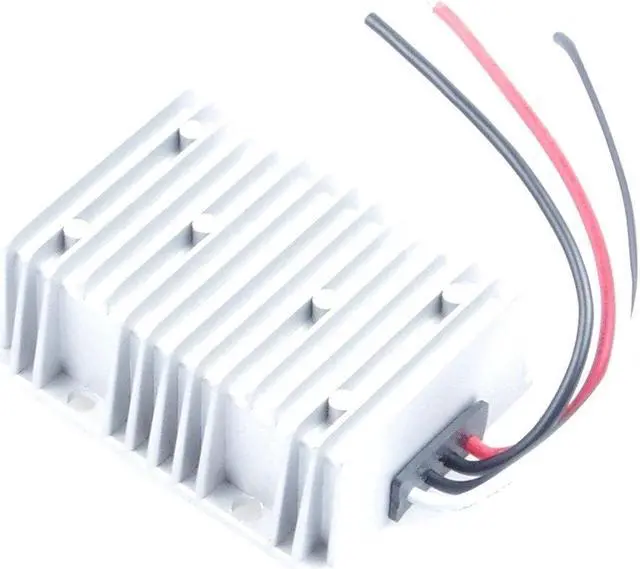

4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.
5. 1 year warranty, lifetime up to 100, 000 hours.
6.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
* Input Rated Voltage: DC 12V
* Input Voltage Range: 10V-18V DC
* Output voltage: DC 48V 8A
* Output Rated Power: 384W
* Efficiency: 95% (half load); 94% (full load)
* Voltage Regulation: Less Than 1%
* Load Regulation: Less Than 2%
* Ripple (full load test): Less Than 150mV * No-load Current: 25mA
* Total Size: 100*80*39mm (L*W*H)
* Weight: 300g
Package included:
1 x DC 12V to DC 48V Voltage Converter
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC12V to DC 48V step-up converter, efficiency up to 95%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.
5. 1 year warranty, lifetime up to 100, 000 hours.
6.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Specifications
:* Input Rated Voltage: DC 12V
* Input Voltage Range: 10V-18V DC
* Output voltage: DC 48V 8A
* Output Rated Power: 384W
* Efficiency: 95% (half load); 94% (full load)
* Voltage Regulation: Less Than 1%
* Load Regulation: Less Than 2%
* Ripple (full load test): Less Than 150mV * No-load Current: 25mA
* Total Size: 100*80*39mm (L*W*H)
* Weight: 300g
Package included:
1 x DC 12V to DC 48V Voltage Converter
