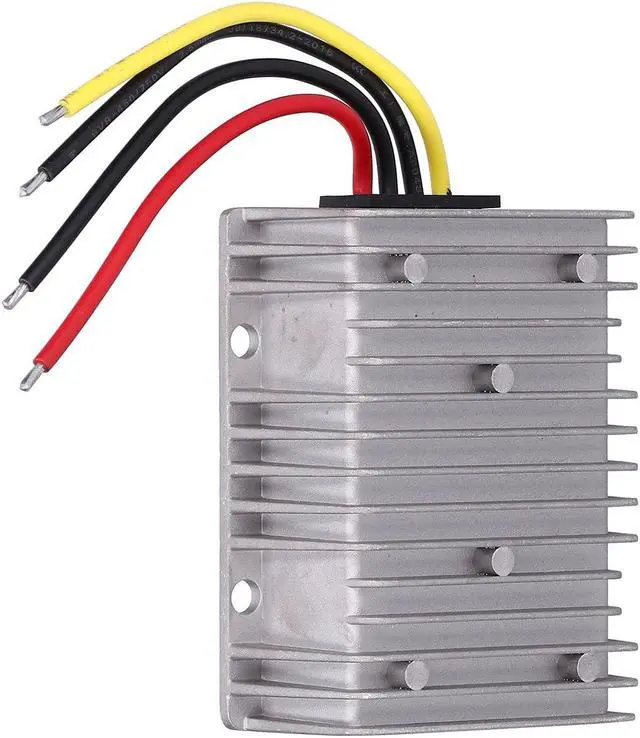

72V to 24V Voltage Regulator DC-DC Converter Buck Module Voltage Power 20A 480W

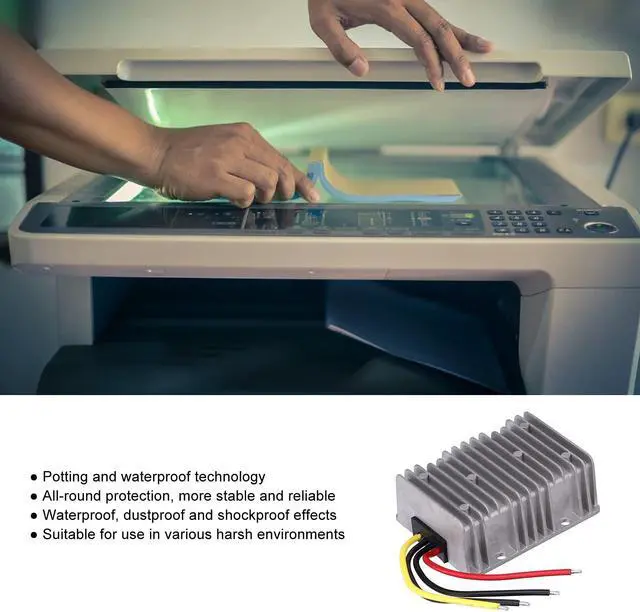

- Level: IP67. Using organic silicone potting technology, it is waterproof, dustproof and shockproof, suitable for various harsh environments

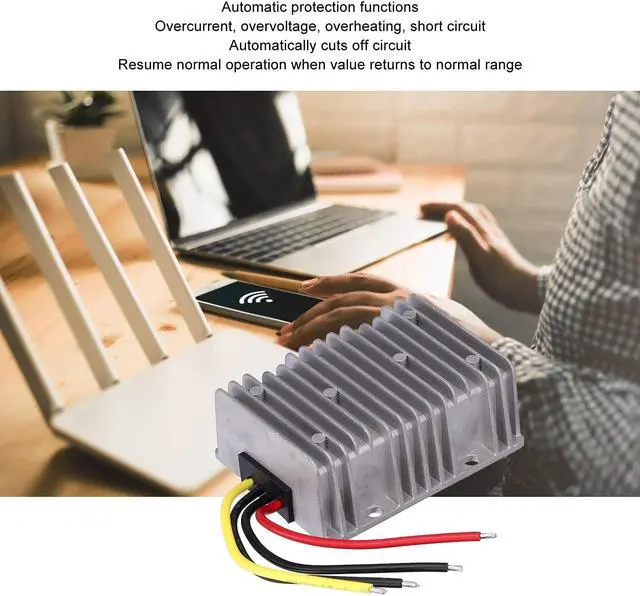

- Multiple Functions: When the protected circuit is at an unsafe value, the built-in protector automatically cuts off the circuit, and works normally when the value returns to the normal range. With automatic functions such as overcurrent, overvoltage, overheating, short circuit, etc, all-round of the circuit

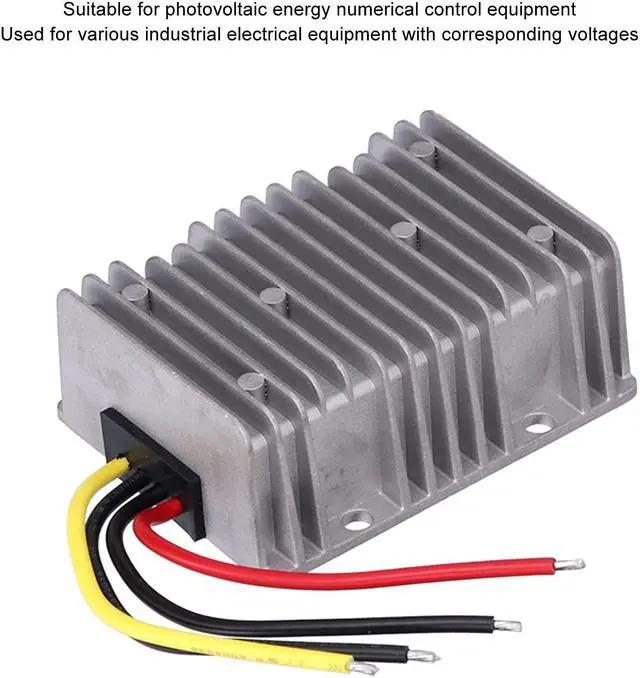

- Wide Range of Applications: This module is a 72V to 24V DC power converter, which is used for various buck voltage regulator equipment. Used for surveillance cameras, electric fans, water pumps, motors, LED lights, security systems, audio equipment, industrial electrical equipment, etc
- Input Voltage Range: 72V(DC60-90V). Output Voltage: 24V. Rated Output Current: 20A. Output Power: 480W. Installation Line Length: Approx. 13cm / 5.1in
- Note: In order to ensure the normal operation of the converter within the input voltage ran
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: DC-DC Converter
Material: Organic silicone + aluminum
Model: GYVRM-JD1L722420
Input Voltage Range: 72V(DC60-90V)
Output Voltage: 24V
Rated Output Current: 20A
Output Power: 480W
Protection Level: IP67
Conversion Efficiency: Up to 96%
Working Temperature: -20~+80
Installation Line Length: Approx. 13cm / 5.1 in
Package List:
1 x Power Converter
1 x Wiring Drawing
Note:
1. The input current must be greater than or equal to the power required by the output load device (for example, if the power of the load device needs 100W, then the input power must be greater than or equal to 100W). When the converter is in use, the current of the load device should not be greater than the maximum current value that the converter can withstand, and leave as much margin as possible for the converter to ensure that the converter works normally and achieves the highest conversion efficiency.
2. The positive and negative poles of the converter cannot be reversely connected during use. Reverse connection may cause damage to the converter. It is recommended to add a suitable to the input terminal during use.
3. The chip works in light load mode when there is no load, and the output voltage may vary within a certain range.
Item Type: DC-DC Converter
Material: Organic silicone + aluminum
Model: GYVRM-JD1L722420
Input Voltage Range: 72V(DC60-90V)
Output Voltage: 24V
Rated Output Current: 20A
Output Power: 480W
Protection Level: IP67
Conversion Efficiency: Up to 96%
Working Temperature: -20~+80
Installation Line Length: Approx. 13cm / 5.1 in
Package List:
1 x Power Converter
1 x Wiring Drawing
Note:
1. The input current must be greater than or equal to the power required by the output load device (for example, if the power of the load device needs 100W, then the input power must be greater than or equal to 100W). When the converter is in use, the current of the load device should not be greater than the maximum current value that the converter can withstand, and leave as much margin as possible for the converter to ensure that the converter works normally and achieves the highest conversion efficiency.
2. The positive and negative poles of the converter cannot be reversely connected during use. Reverse connection may cause damage to the converter. It is recommended to add a suitable to the input terminal during use.
3. The chip works in light load mode when there is no load, and the output voltage may vary within a certain range.
