$75.99
Meet Your Seller

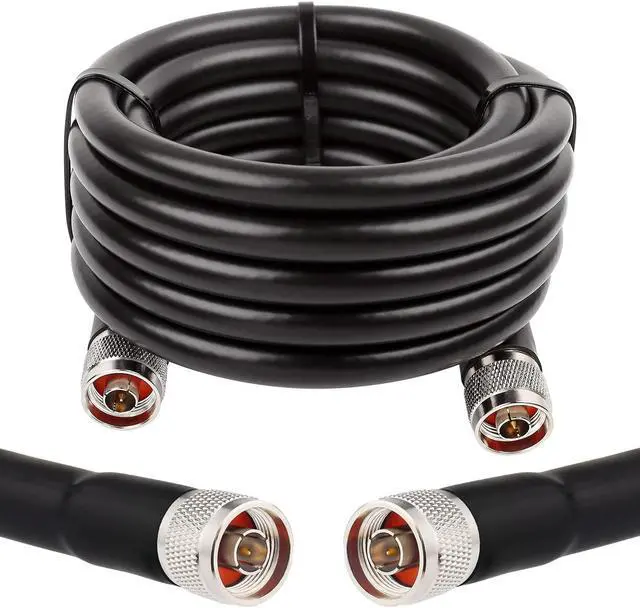

XRDS -RF 15 ft KMR400 Low Loss Coax Cable, 50 Ohm Coax Extension Cable N Male to N Male Connector Coaxial Cables for 3G/4G/5G/LTE/GPS/WiFi/RF/Ham/Radio to Antenna (Not for TV)
- Ultra Low-Loss :This 15 feet cord with N-Male to N-Male Connectors is black in color and it is Ultra Low-Loss Coax Cable,which mean that it incurs a very low loss.Signal loss per 15 ft. on 3000MHz is less than 1.4 dB. This 50 omh cable allows transfer of signals over large distances with minimum signal loss.
- High-quality Materials: The inner conductor of this n type coax cable is copper clad aluminium so it is very efficient and causes very low signal loss, and the cable is heavy duty. The Jacket is made of the flexible and proof-water pvc that could be used so long in the harsh environments in the outdoor.

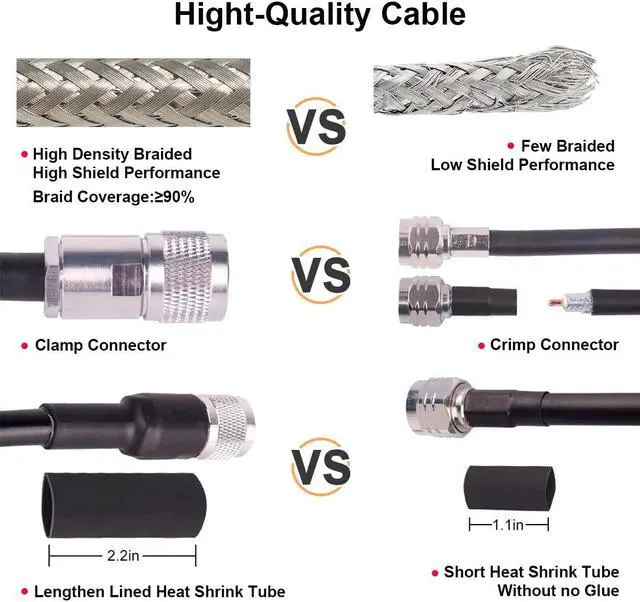

- Prevent Coming Off: Our coaxial cable adopt the clamp connector not the crimp type connector so the connector will not easy come off from the cable and all the connections are solid and professionally attached.We use the black heat shrink tube and lined adhesive by heat shrinking to connect the adapter and the coaxial cable . And the length is up to 2.2 in that is lo
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

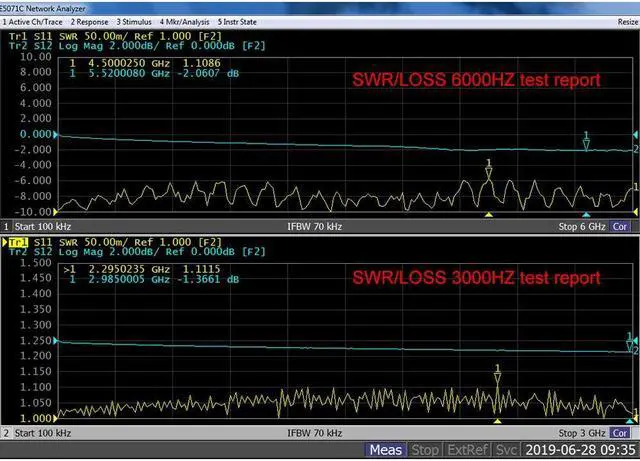

KMR400 n type cable to hold the shield at a uniform distance from the central conductor, the space between the two is filled with a dielectric designed to maintain the proper spacing between conductor and shielding to assure maximum signal transmission and lowest loss. KMR400 low loss coax cable n-male to n-male is designed to transmit the maximum signal to your antennas. specifications with aluminum foil and copper conductors for less signal loss in runs up to 200 feet KMR400 ham radio antenna shielded cable can be bent and moderately twisted without negative effects, and can be strapped to conductive supports without inducing signal interference Specification Nom, 6GHZ VSWR<= 1.15 Nom, 3GHZ Attenuation<=- 1.4 dB Nom, 6GHZ Attenuation<=- 2.1 dB Nom.

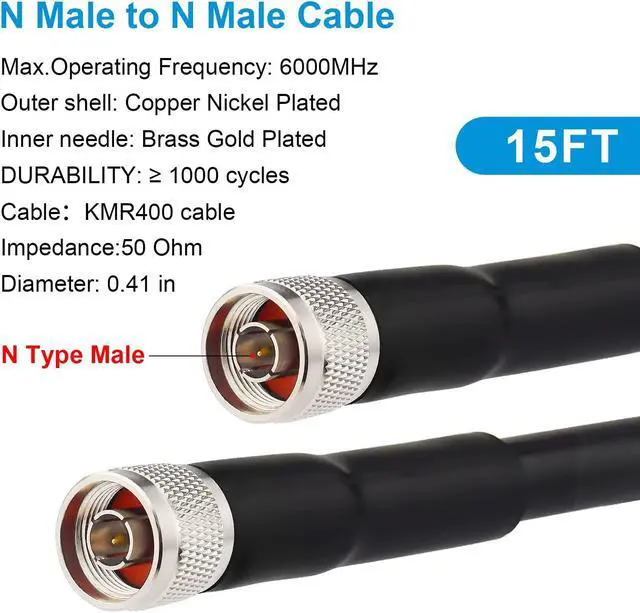

Characteristic Impedance: 50ohm Nom. Min.
Bend Radius (Install): 2in Nom. Max.
Operating Frequency: 6000MHz Nom.
Operating Temp: -40 to 80 Nom.
Maximum tensile strength: 21.3I b
Characteristic Impedance: 50ohm Nom. Min.
Bend Radius (Install): 2in Nom. Max.
Operating Frequency: 6000MHz Nom.
Operating Temp: -40 to 80 Nom.
Maximum tensile strength: 21.3I b
