Audiotek AT-EQ700 1/2 Din 7 Band Car Audio Equalizer EQ w/Front, Rear + Sub Output | Auxiliary Stereo RCA Input - 3 Stereo RCA Outputs - Front/Rear Fader, and Selection of Main

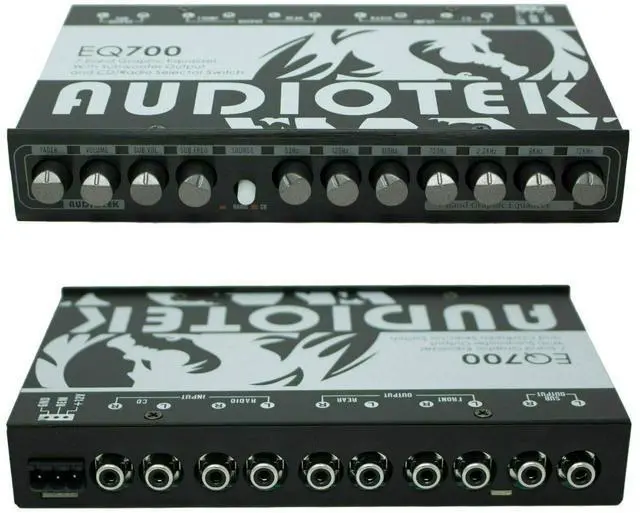

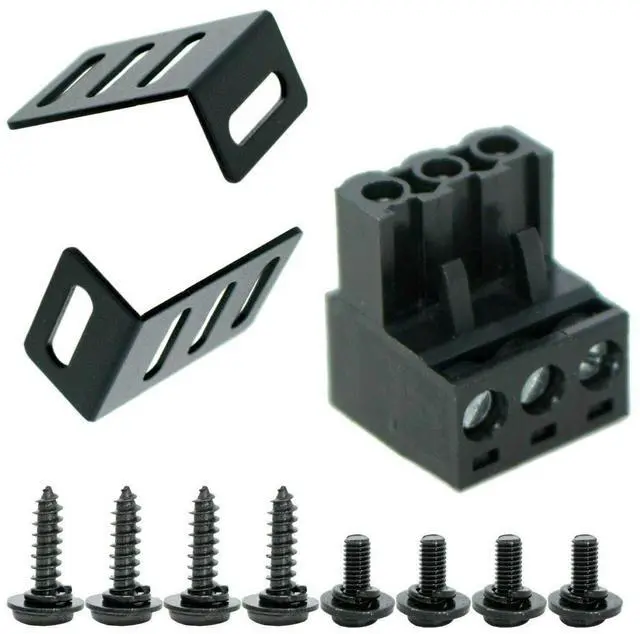

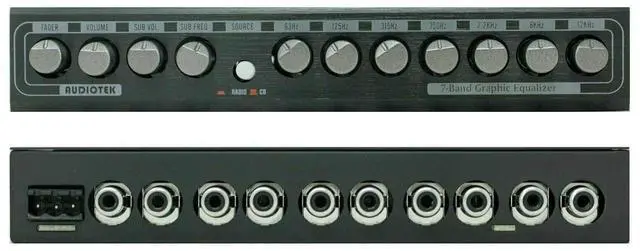

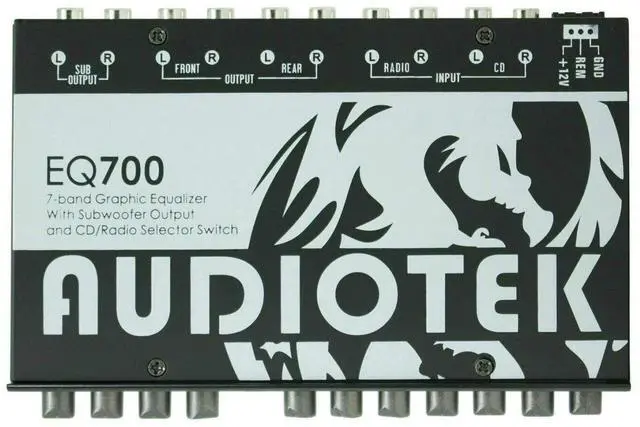

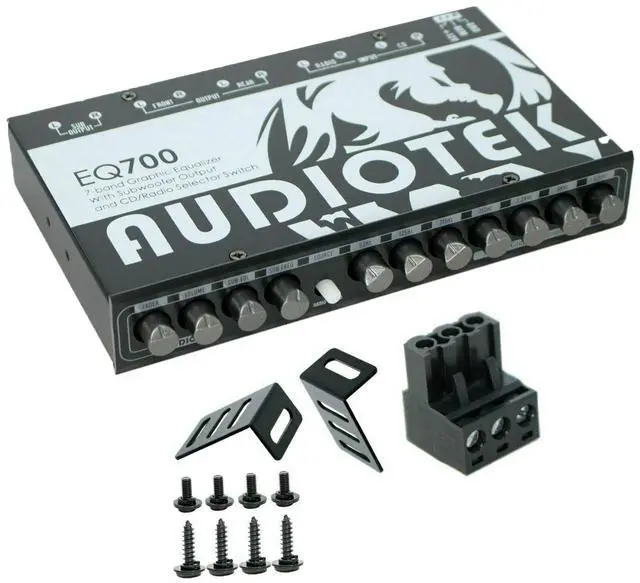

This equalizer is a 7-band stereo equalizer / crossover specifically created for the mobile environment. It provides powerful features in a compact size: - Seven equalization bands (63Hz, 125Hz, 315Hz, 750Hz, 2.2 kHz, 6kHz, and 12kHz), each frequency is adjustable from -12 to + 12dB (-15 to +15dB for subwoofer frequencies) - Subwoofer output uses a built-in 18dB per octave electronic crossover fixed at 60Hz or 120Hz - Three stereo RCA outputs to drive front, rear, and subwoofer audio amplifiers - An auxiliary stereo RCA input for use with portable devices, such as an MP3 Player or DVD player - Separate controls for master volume, subwoofer volume (sub level), front/rear fader, and selection of main or auxiliary inputs - Extended frequency response from 20Hz to 30kHz with exceptional 100dB signal-to-noise performance - Gold-plated RCA connectors to ensure the best audio signal output - ISO mounting holes and removable trim ring for custom
installation Technical

Details

: Graphic
Center Frequencies: 63Hz, 125Hz, 315Hz, 750Hz, 2.2 kHz, 6kHz, and 12kHz
Boost/Cut: 12dBS/N
Ratio: 100dB
Frequency Response: 10Hz ~ 50kHz +/-1dB Maximum
Output Voltage: 7V
THD: 0.005 %
Input Sensitivity: 50mV ~ 3V
Head Room: 20dB
Input Impedance: 20kOhms
Output Impedance: 2kOhms
Stereo Separation: 82dB/1kHz
Operating Voltage: 11V ~ 15V
Negative Ground Size: 7 x 4 1/8" x 1 inches
