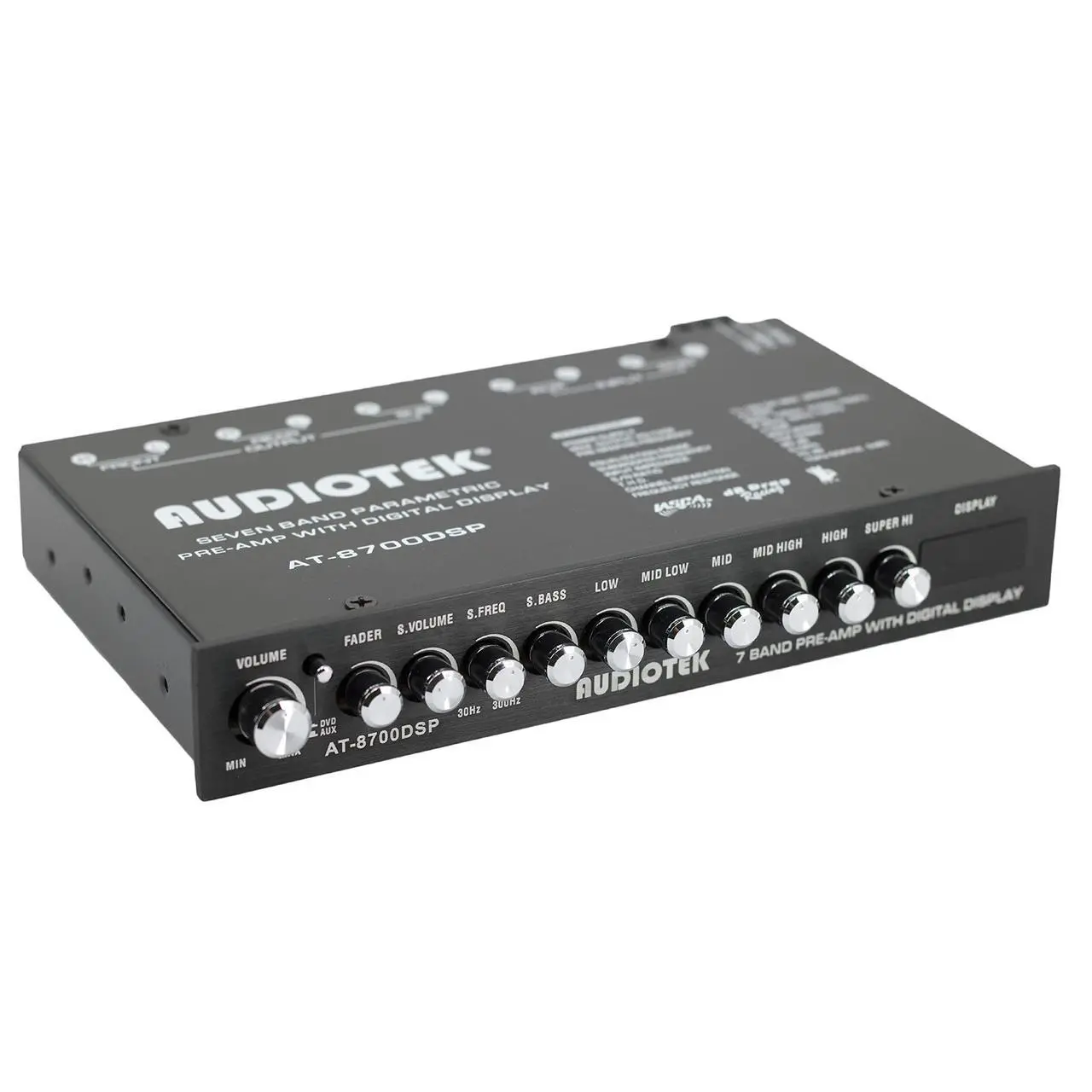

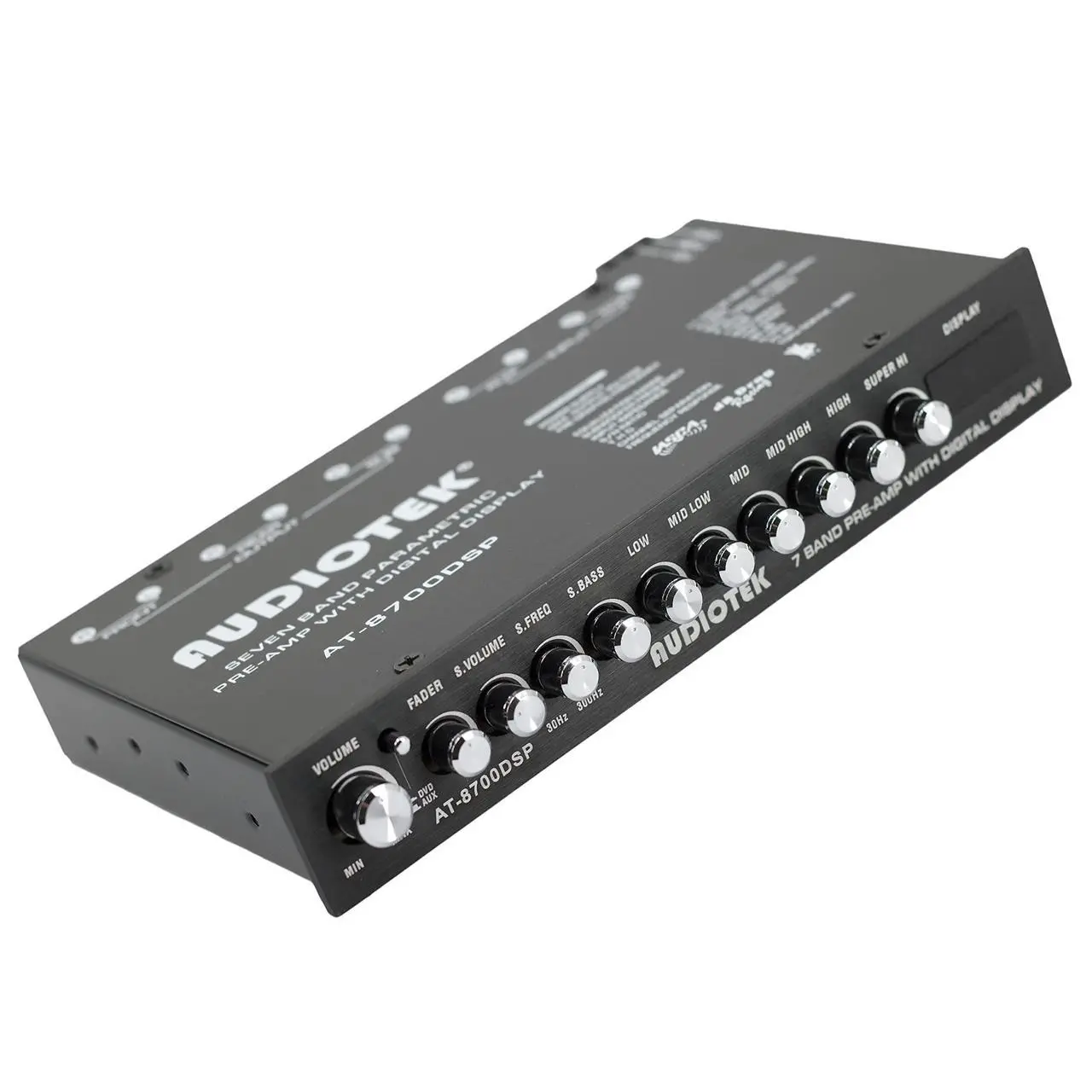

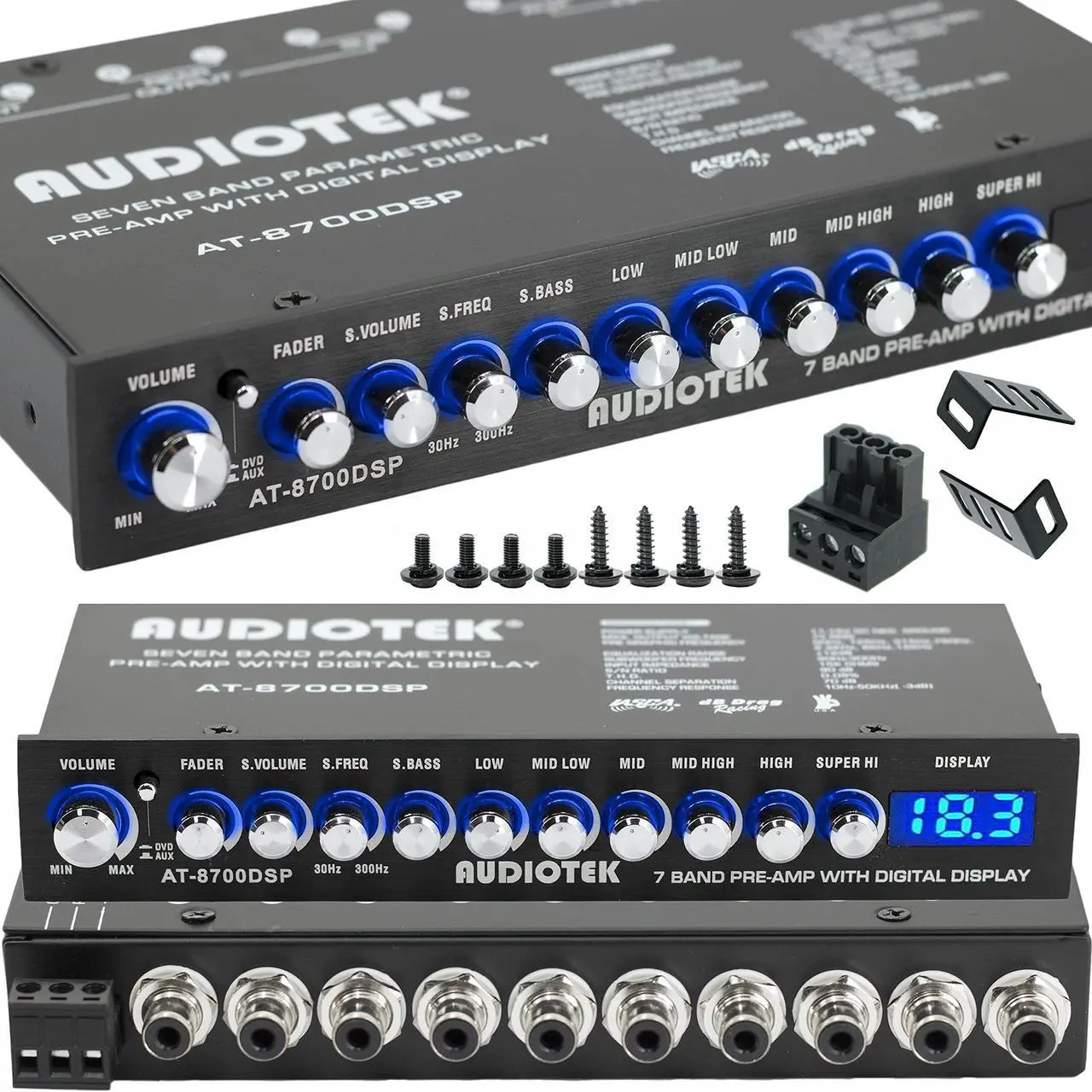

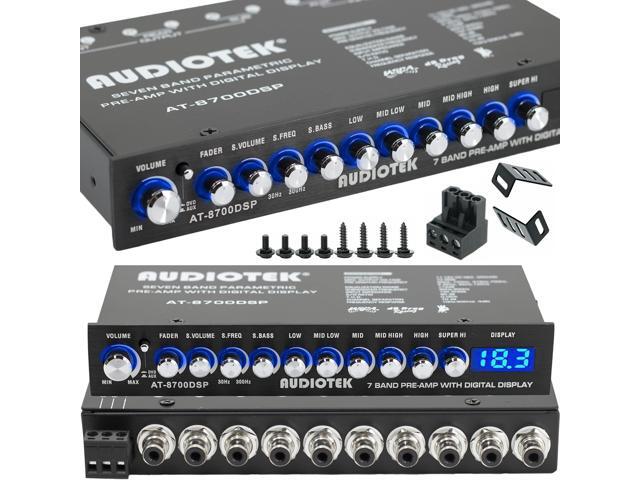

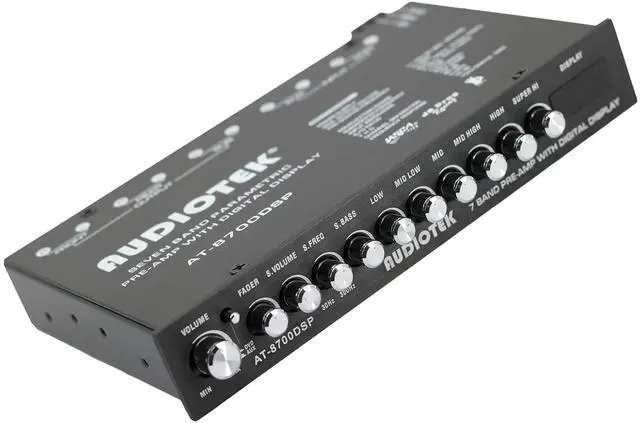

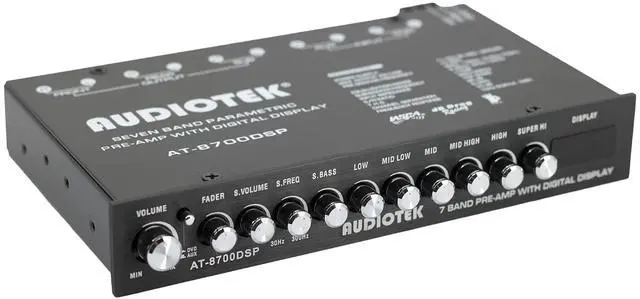

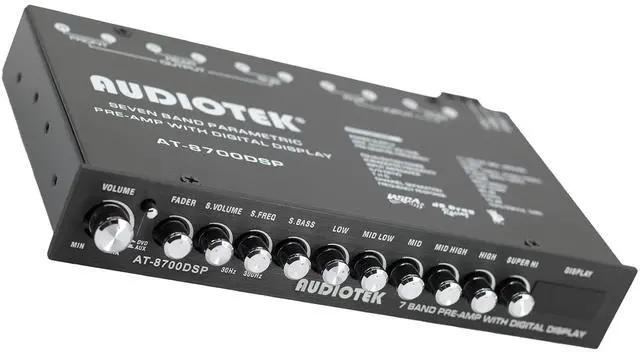

Audiotek 8700DSP 1/2 Din 7 Band Car Audio Equalizer EQ Front, Rear + Sub Output, Up to 7V RMS of Output, Gold-Plated RCA connectors for Best Audio Output for Car, Boat, RV, RTV, Motorcycle

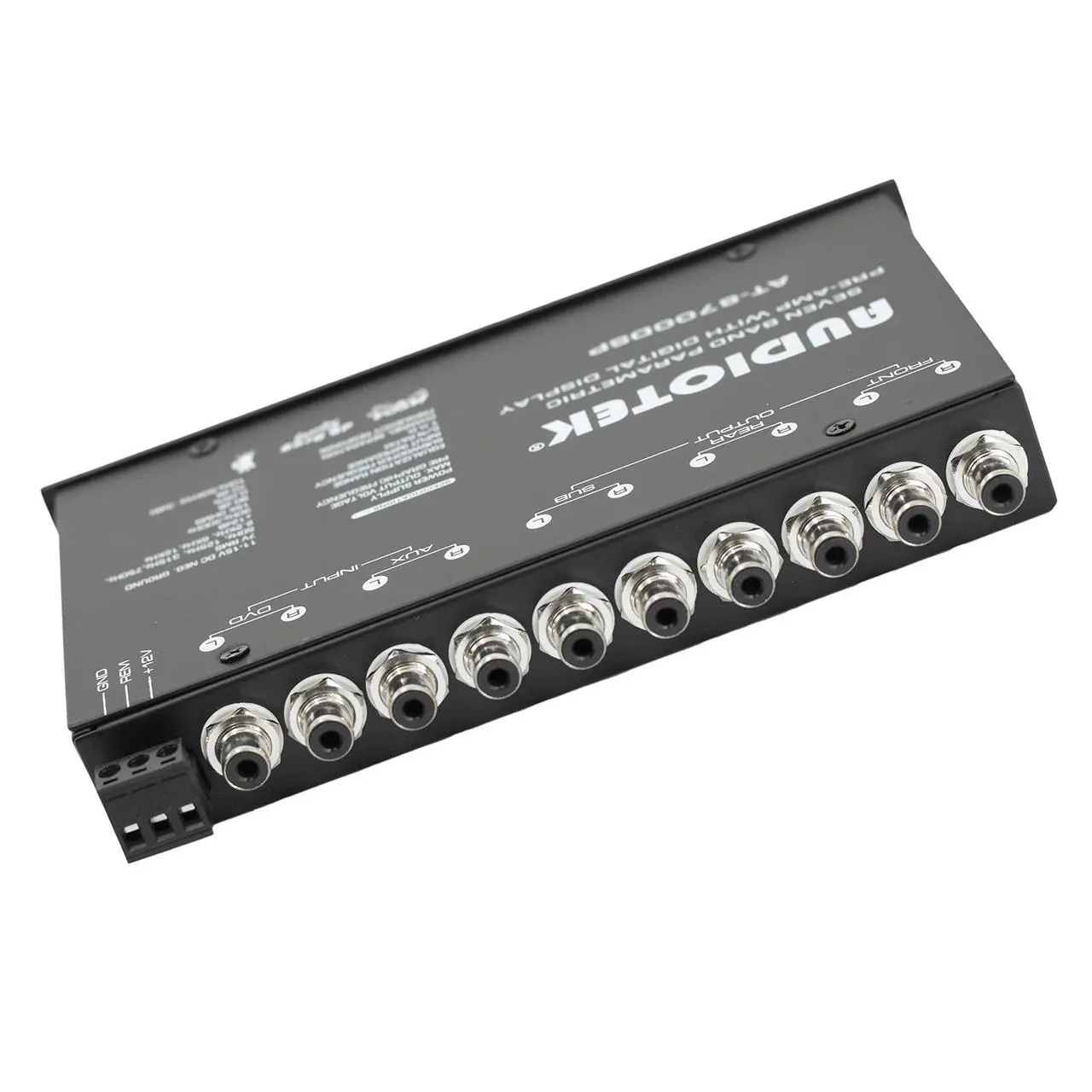

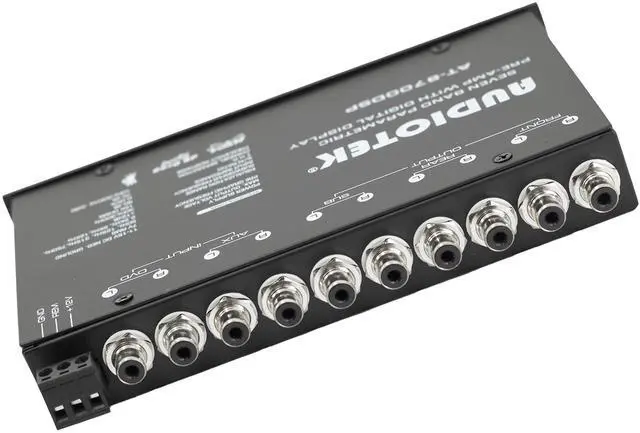

- Seven equalization bands (50Hz, 125Hz, 315Hz, 750Hz, 2.2 kHz, 6kHz, and 12kHz), each frequency is adjustable from -12 to + 12dB (-15 to +15dB for subwoofer frequencies) - Subwoofer output uses a built-in 12dB per octave electronic crossover fixed at 30Hz-300Hz - Three stereo RCA outputs to drive front, rear, and subwoofer audio amplifiers - An auxiliary stereo RCA input for use with portable devices, such as an MP3 Player or DVD player - Separate controls for master volume, subwoofer volume (sub level), front/rear fader, and selection of main or auxiliary inputs - Extended frequency response from 20Hz to 30kHz with exceptional 100dB signal-to-noise performance - Gold-plated RCA connectors to ensure the best audio signal output - ISO mounting holes and removable trim ring for custom
installation Technical

Details

: Graphic
Center Frequencies: 50Hz, 1256Hz, 315Hz, 750Hz, 2.2 kHz, 6kHz, 12kHz
Boost/Cut: 12dB
S/N Ratio: 90dB
Frequency Response: 10Hz ~ 50kHz +/-3dB Maximum
Output Voltage: 7V
THD: 0.005 %
Input Sensitivity: 50mV ~ 3V
Head Room: 20dB
Input Impedance: 20kOhms
Output Impedance: 2kOhms
Stereo Separation: 70dB/1kHz
Operating Voltage: 11V ~ 15V
Negative Ground Size: 7 x 4 1/8" x 1 inches
