HighPoint Technologies Highpoint RocketU 1244C PCIe 3.0 x8 4X 10Gb/s Port USB 3.2 Controller

The RocketU 1244C HBAs four independent USB ports are equipped with a dedicated 10G USB 3.2 controller chip, and a backed by a robust PCIe 3.0 x8 host interface. Industry Proven Per-Port
Performance USB Architecture: HighPoints industry-proven Per-Port Performance USB architecture enables each RocketU 1244C HBA to support up to 4, 000 MB/s of transfer bandwidth, while ensuring each hosted USB device can operate at peak performance without fear of saturating the host bus or taxing system resources. PCIe 3.0 x8
Host Interface: The blazing fast PCIe 3.0 x8 host interface works in tandem with the RocketU 1244Cs Per-Port Performance architecture to ensure each individual USB Type-C connector can deliver 1000MB/s of transfer bandwidth at all times, even in cases where each port is occupied and under heavy load. Dedicated USB Controllers Provide Independent Device Paths &

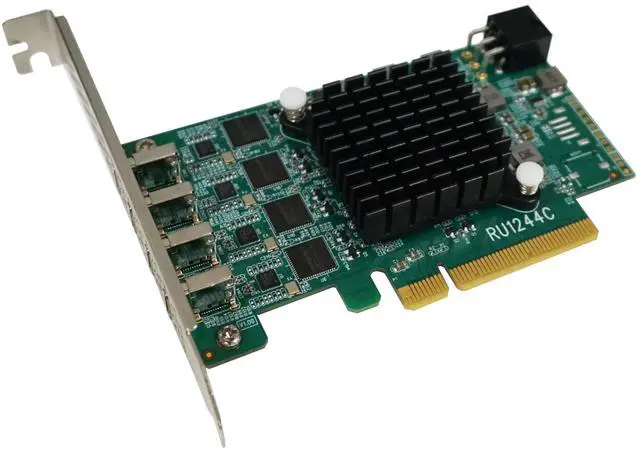

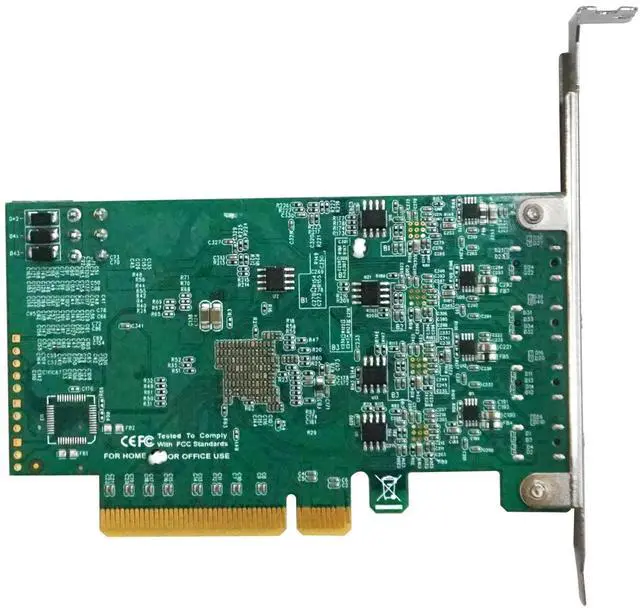

Power Delivery: The RocketU 1244Cs four dedicated USB 3.2 controllers enable each port to work independently and deliver up to 7.5W of power for device operation or charging purposes. The innovative PCB layout provides a dedicated connectivity pathway for each port; hosted USB devices can operate at full speed without interference from neighboring USB connections. Designed for High-Speed Data Acquisition and
Capture Applications: The RocketU 1244C was built for professional workflows that demand ease of integration, hot-plug capability, and rapid file transfer. The four independent 1000MB/s USB ports and PCIe 3.0 x8 host interface can easily accommodate a wide range of high-speed data acquisition applications, including imaging and capture solutions, security systems, and media archiving.

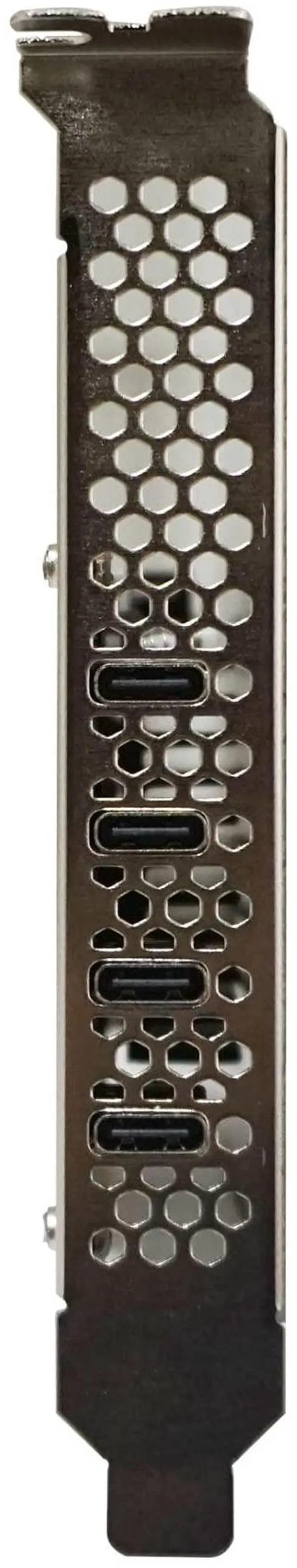

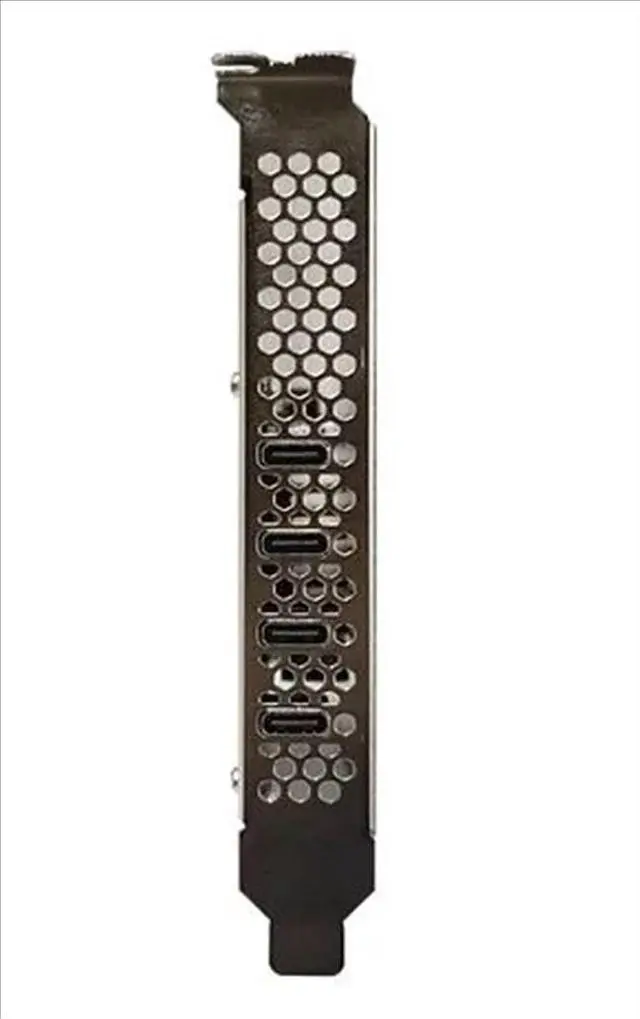

Universal Compatibility: RocketU 1244C controllers can be installed into any computing platform with an industry-standard PCIe 3.0 or 4.0 x8 or 16 slot. The four independent USB Type-C ports support any industry-standard USB 2.0 / 3.0 / 3.1 / 3.2 device, including USB hard drives and SSDs, cameras, printers, capture devices and peripherals.
xHCI Compliant: Driverless
installation: The RocketU 1244C is a true plug-and-play USB controller, and is supported natively by all modern operating system platforms including Windows 10, Windows Server 2019, macOS Big Sur, and current distributions of Linux.
