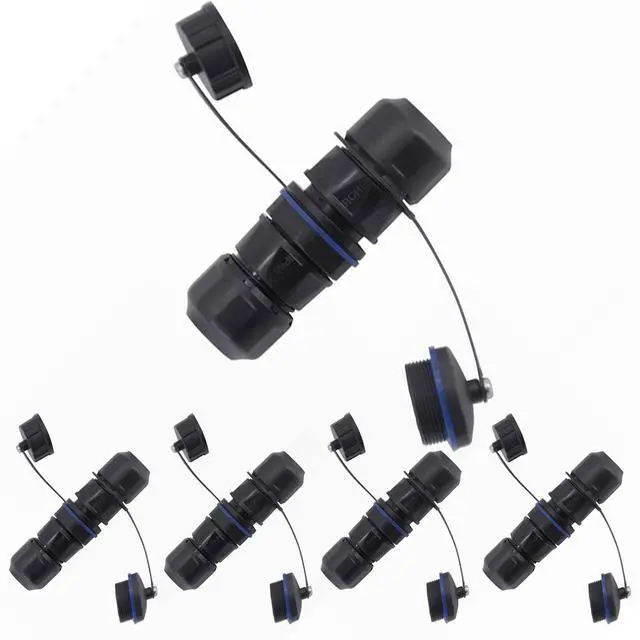

ANMBEST 5PCS Panel Mounting RJ45 Waterproof Connector Cat5/5e/6 Ethernet LAN Cable Double Head Coupler Adapter Female to Female with Waterproof/Dust Cap Cover for Outdoor Network

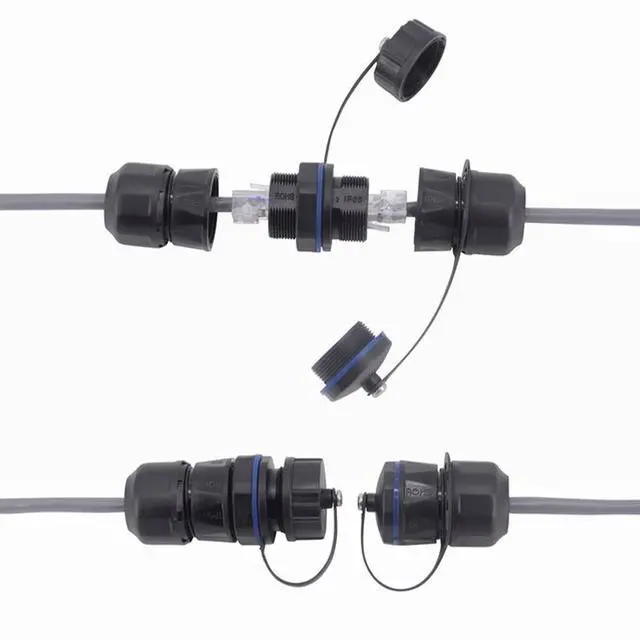

The female to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP67 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware.

Specifications

:
Number of cores: 8 PIN
Waterproof rating: IP67
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock
Connector wire-in range: OD (3~8) mm
Case wall thickness: Threaded
type: >2mm, through-hole type: 0.3 ~12mm
Connector transmission classification: CAT5E
Transmission speed range: 10BASE-T. 100 BASE-T and 1000 BASE-T network
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: >500MO
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: <10MO

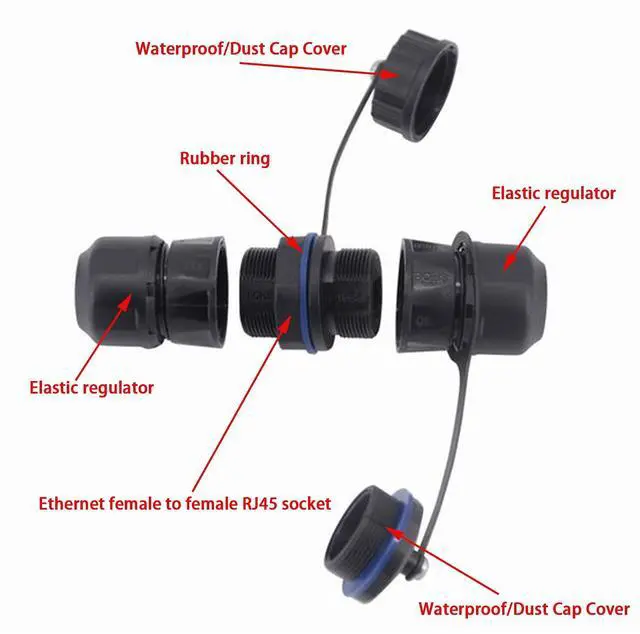

Material:
Shell: Nylon PA66 (UL94V-0)
Socket contact pin: 0.5 mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch

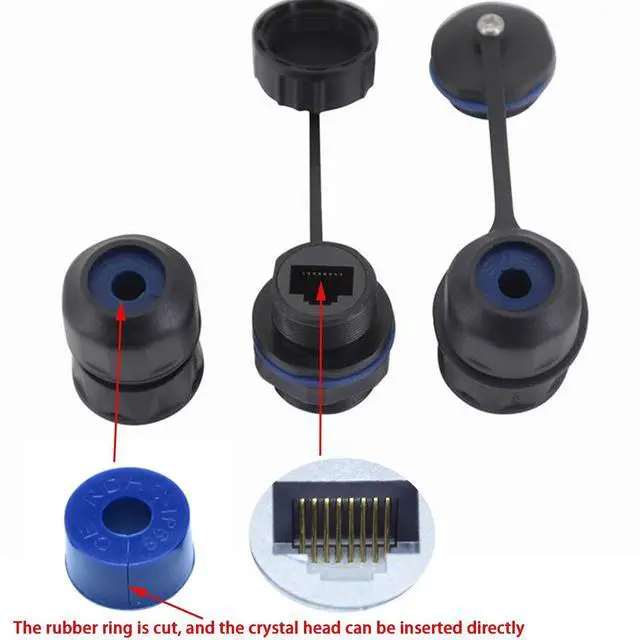

Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40~120Celsius
Storage temperature: -25~85Celsius
Atmospheric pressure: 86~106kPa
Relative humidity: <=90% RH
Package Included:
5x Waterproof RJ45 Connector
10x Waterproof/Dust Cap Cover
