Main image of Mechatronics 120x38mm IP55 Rated Fans (230V, High Speed)

Alt view image 2 of 4 - Mechatronics 120x38mm IP55 Rated Fans (230V, High Speed)

Alt view image 3 of 4 - Mechatronics 120x38mm IP55 Rated Fans (230V, High Speed)

Alt view image 4 of 4 - Mechatronics 120x38mm IP55 Rated Fans (230V, High Speed)

Shop All Mechatronics Products | Visit Detail Driven Store

Mechatronics 120x38mm IP55 Rated Fans (230V, High Speed)

230v AC

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

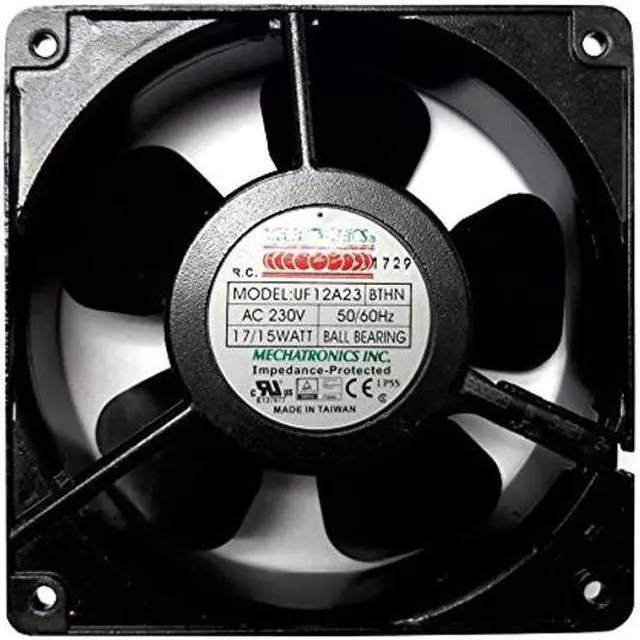

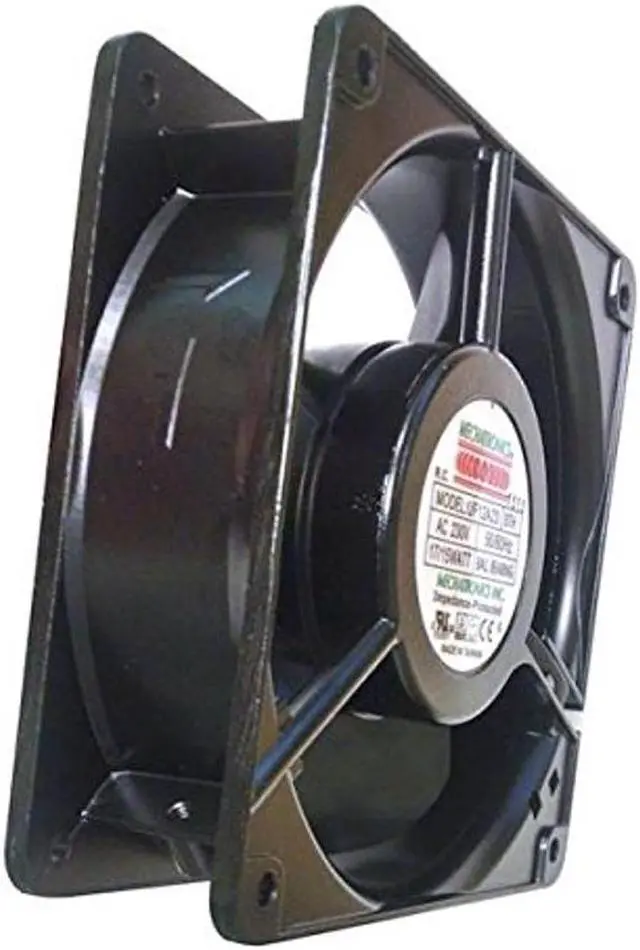

Mechatonics 120x38mm 230 volt High speed IP55 Rated AC Fan #UF12A23-BTHNR

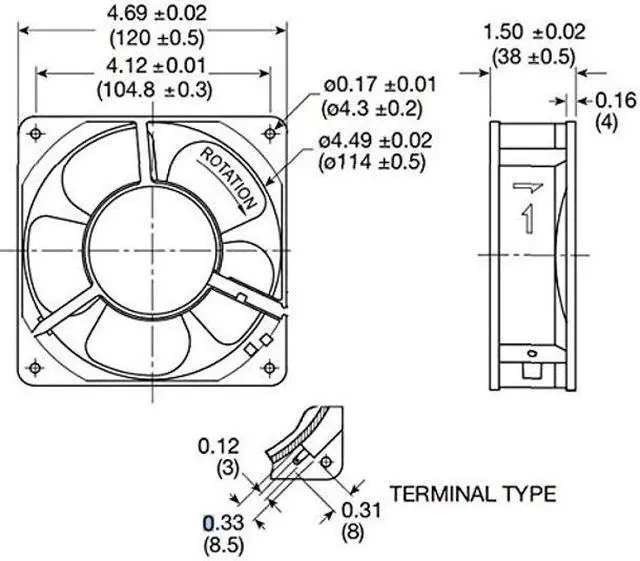

Size: (120 x 120 x 38 mm)

IP 55 ENCLOSURE CHARACTERISTICS:
Protection from dirt, dust, oil, and other non-corrosive material
Complete protection from contact with enclosed equipmentProtection from water, up to water projected by a nozzle against enclosure from any direction AC power cord is not included.
Operating voltage (VAC): 230
Construction: aluminum die cast frame; UL94V-0 PBT impeller
Bearing: motor quality ball bearings
Air flow: exhaust over struts

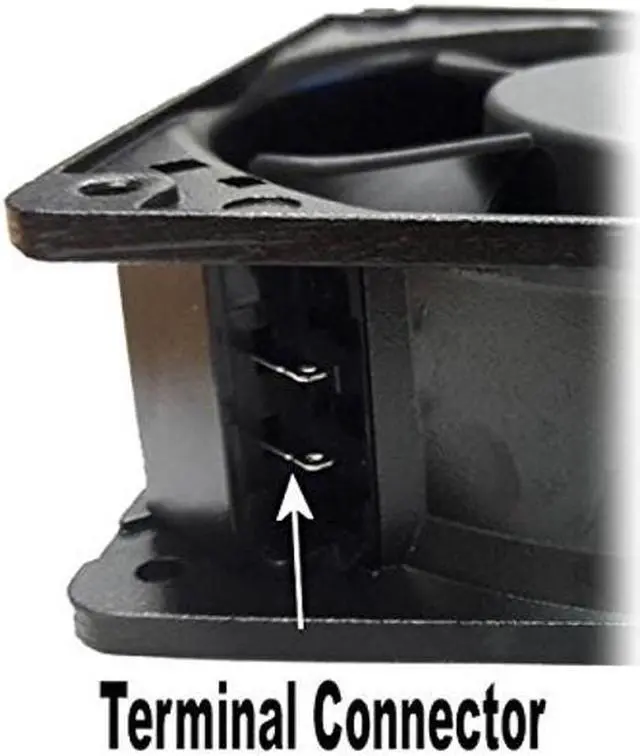

Connection: Terminal
Protection: impedance
RoHS
Model No UF12A23-BTHNR
Voltage 230 V
Freq 60Hz
Input Power. 15 amps
Speed RPM 3100
Air Volume CFM 106
Sound Noise dB 46
