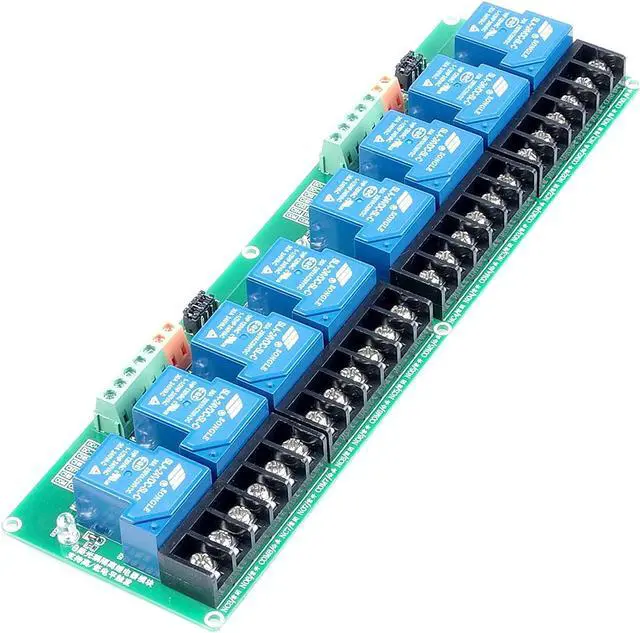

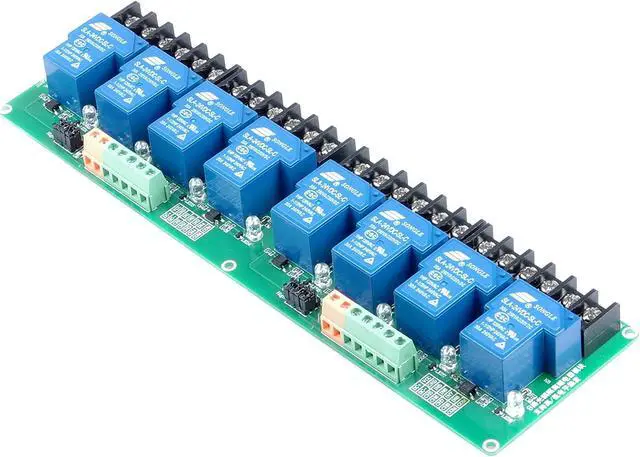

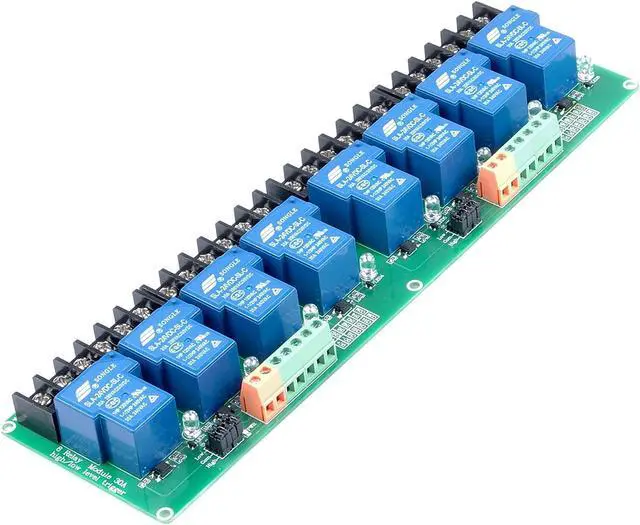

KNACRO 8-Channel Relay Module High Low Level Triggering Optocoupler Isolation Load 30A DC 30V AC 250V for PLC Automation Control, Industrial System Control(24V, 8-Channel)
- 8-channel, DC 24V 30A relay module
- Output capacity: within DC 30V 30A or AC 250V 30A.
- Using optocoupler isolation, strong anti-jamming capability and stable performance.

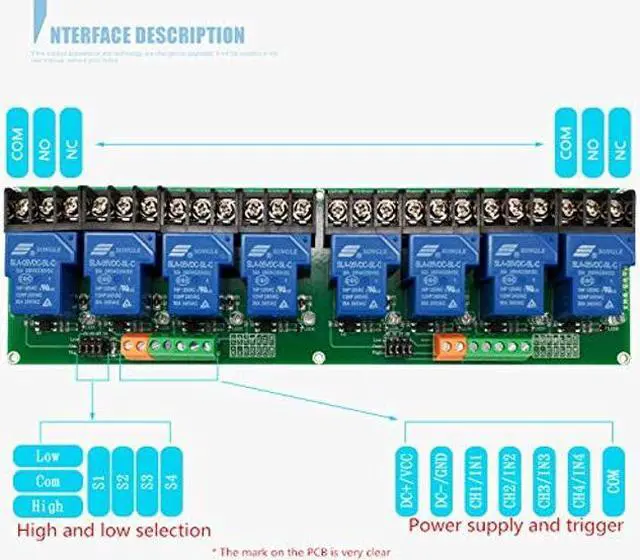

- The module can be set high or low trigger.
- To ensure stability, uses industrial grade PCB board and 9.5mm barrier terminals.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Supply voltage: DC 5V / 12V / 24V;
Quiescent current: 5mA;
Maximum operating current: 190mA;
Trigger mode: high and low level trigger;
Load voltage: DC 30V / AC250;
Load current: 30A;
Relay life: more than 100, 000 times;
Product weight: 385g;
Size: 70 * 72 * 22mm (L * W * H);
Trigger voltage range:
DC 05V: Low-level
trigger: 0-2V relay ON; 3-5V relay OFF;
High-level trigger: 3.3 -5V relay ON; 0- 2.5V relay OFF;
DC 12V: Low-level
trigger: 0-5V relay ON; 6-12V relay OFF;
High-level trigger: 6-12V relay ON; 0- 5.5V relay OFF;
DC 24V: Low-level
trigger: 0-12V relay ON; 12-24V relay OFF;
High-level trigger: 12-24V relay ON; 0- 8.5V relay OFF;
Package Included:
1x2-Channel Relay Module
Quiescent current: 5mA;
Maximum operating current: 190mA;
Trigger mode: high and low level trigger;
Load voltage: DC 30V / AC250;
Load current: 30A;
Relay life: more than 100, 000 times;
Product weight: 385g;
Size: 70 * 72 * 22mm (L * W * H);
Trigger voltage range:
DC 05V: Low-level
trigger: 0-2V relay ON; 3-5V relay OFF;
High-level trigger: 3.3 -5V relay ON; 0- 2.5V relay OFF;
DC 12V: Low-level
trigger: 0-5V relay ON; 6-12V relay OFF;
High-level trigger: 6-12V relay ON; 0- 5.5V relay OFF;
DC 24V: Low-level
trigger: 0-12V relay ON; 12-24V relay OFF;
High-level trigger: 12-24V relay ON; 0- 8.5V relay OFF;
Package Included:
1x2-Channel Relay Module
