Sunhans Indoor WiFi Signal Booster SH24BTA-N 3000mW 35dBm 2.4GHz 802.11b/g/n Drone Singal Extender WiFi Amplifier for House, Office, UAV, IP Cameras, RC Equipment
- 2.4Ghz frequnecy band, Max. 3000mW (35dBm) output power; Low noise, High Gain, High Performance; With Power & Signal Activity LED Indicators; Aluminum-alloy case by CNC, anti-interference; Small size, Safe & Power saving; Full kit, easy to install; For house, office, UAV, IP cameras, RC equipment, etc.
- Which works together with an indoor Wireless Access Point to improve its operation range and performance. In certain conditions the unit is able to double the range of the wireless device. Full power, easy installation and operation; Strengthen radio signal to Increase the effective range and coverage area for Wi-Fi communication; Save wiring costs, easily build a wireless infrastructure for home or business use; Make broadband wireless application in possible coverage
- Full power, easy installation and operation; Strengthen radio signal to Increase the effective range and coverage area for Wi-Fi communication; Save wiring costs, easily build a wireless infrastructure for
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
2.4G, Max. 3000mW output power;
Aluminum-alloy case by CNC, anti-interference;
Small size, Safe & Power saving;
Full kit, easy to install;
For house, office, UAV, IP cameras, RC equipment;
Technical specifications
Model: SH24BTA-N
Operating range: 2400~2500MHz
Channel width: 20Mhz&40Mhz
Supported standards: IEEE 802.11 b/g/n
Operation mode: Bi-directional, half-duplex, time division duplex
Connector type: To radio SMA female (hole inside). To antenna RP-SMA male (pin inside)
Output power: 3000mW (35dBm)
Input power: 0 ~ 20dBm
Transmit gain: 15 - 18dB
Receiver gain: is less than or equal to 12dB
Noise figure: = 3.5 dB typical
Power adapter: 12V/2A DC, 100~240V
Operating temperature: -20 C to +70 degrees C degrees
Operating humidity: Up to 75% relative humidity
Material: Cast aluminum
LED light: Power status LED and activity status LED
Booster weight: 94g
Booster size: 8.4 x 4.7 x 1.7 cm
Package weight: 380g
Package size: 21.3 x 13.5 x 5cm

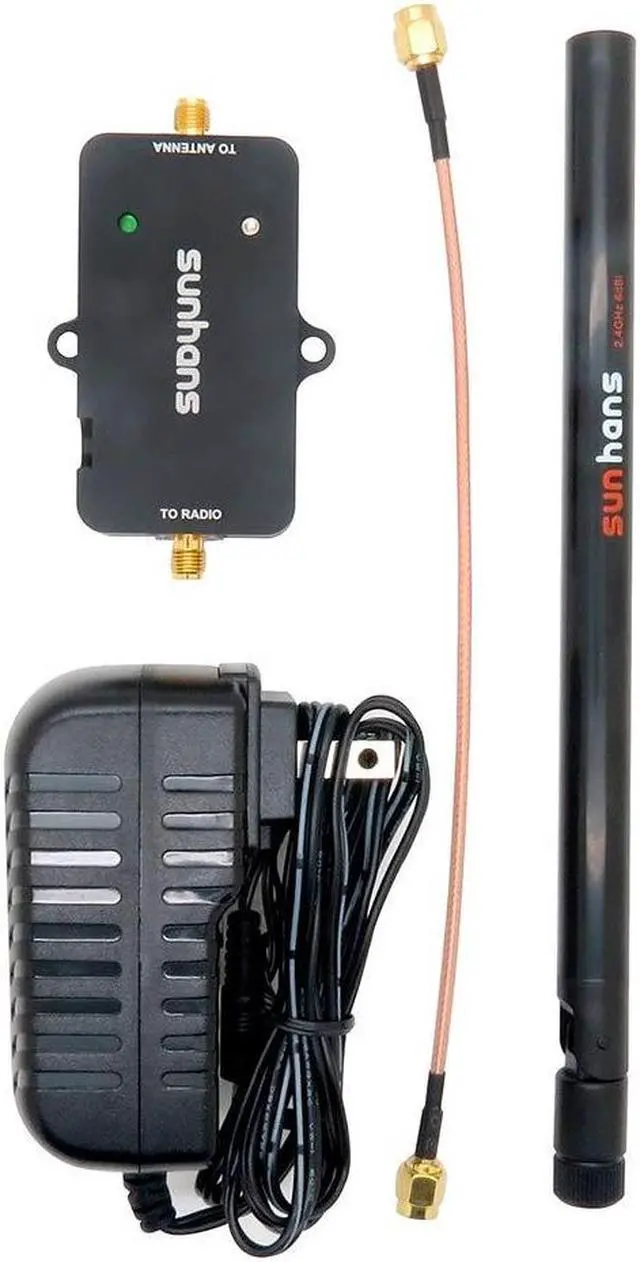

Package Included:
1 x SH24BTA-N Wifi Signal Booster
1 x RG316 cable with SMA connectors (20cm)
1 x 6dBi omni antenna
1 x power supply (US/EU Plug)
1 x user manual
Attention:
The power amplifier is not suitable for use in high power devices
Use
Step 01: Remove the Antenna from the Wireless Router (Access Point).
Step 02: Use this cable (RG316) to connect Amplifier 'input' port with router 'output' port: note that cable is in standard spec.
Step 03: Connect the antenna with 'output' port of Amplifier.
Step 04: Power the amplifier with the matching source adapter: DC 12V.
2.4G, Max. 3000mW output power;
Aluminum-alloy case by CNC, anti-interference;
Small size, Safe & Power saving;
Full kit, easy to install;
For house, office, UAV, IP cameras, RC equipment;
Technical specifications
Model: SH24BTA-N
Operating range: 2400~2500MHz
Channel width: 20Mhz&40Mhz
Supported standards: IEEE 802.11 b/g/n
Operation mode: Bi-directional, half-duplex, time division duplex
Connector type: To radio SMA female (hole inside). To antenna RP-SMA male (pin inside)
Output power: 3000mW (35dBm)
Input power: 0 ~ 20dBm
Transmit gain: 15 - 18dB
Receiver gain: is less than or equal to 12dB
Noise figure: = 3.5 dB typical
Power adapter: 12V/2A DC, 100~240V
Operating temperature: -20 C to +70 degrees C degrees
Operating humidity: Up to 75% relative humidity
Material: Cast aluminum
LED light: Power status LED and activity status LED
Booster weight: 94g
Booster size: 8.4 x 4.7 x 1.7 cm
Package weight: 380g
Package size: 21.3 x 13.5 x 5cm
Package Included:
1 x SH24BTA-N Wifi Signal Booster
1 x RG316 cable with SMA connectors (20cm)
1 x 6dBi omni antenna
1 x power supply (US/EU Plug)
1 x user manual
Attention:
The power amplifier is not suitable for use in high power devices
Use
Step 01: Remove the Antenna from the Wireless Router (Access Point).
Step 02: Use this cable (RG316) to connect Amplifier 'input' port with router 'output' port: note that cable is in standard spec.
Step 03: Connect the antenna with 'output' port of Amplifier.
Step 04: Power the amplifier with the matching source adapter: DC 12V.
