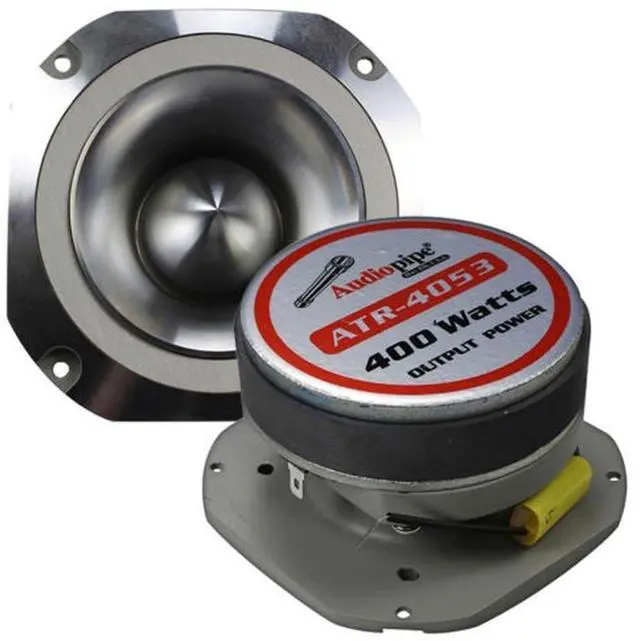

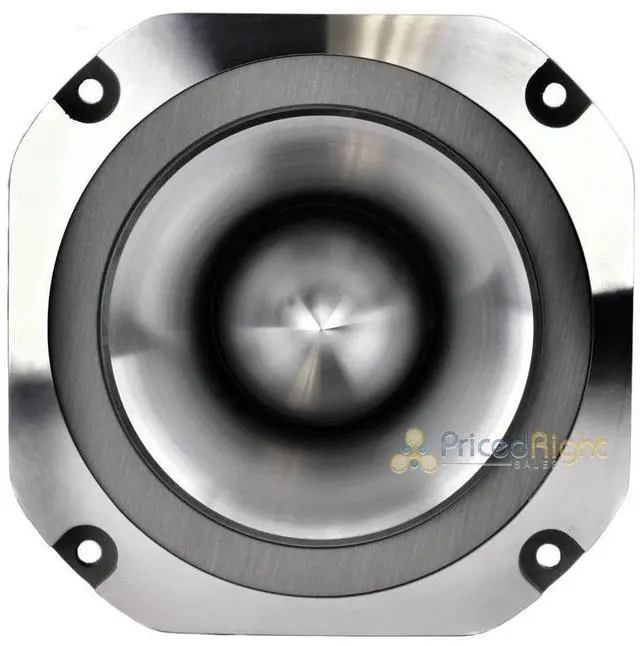

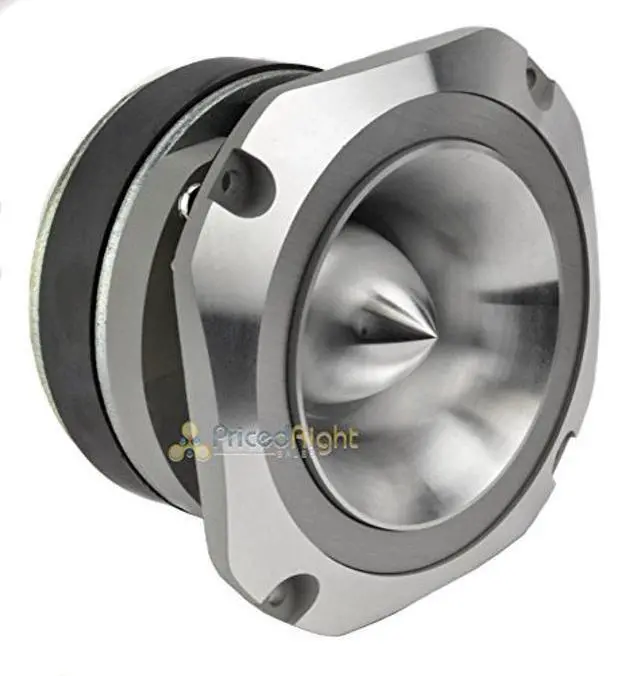

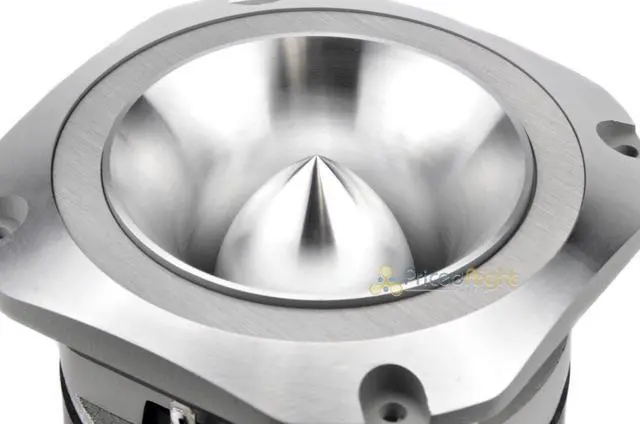

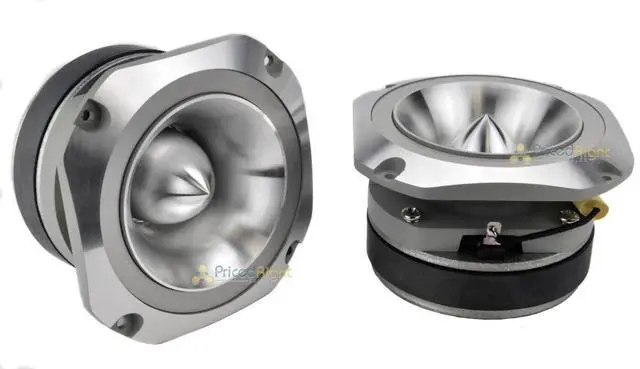

Audiopipe 1 Pair Super Tweeter 4" 400 Watts Car Stereo Bullet Diamond Chrome ATR-4053

Specifications

: ATR-4053

Nominal Diameter: 4" x 4" / 102mm x 102mm
Nominal Impedance: 4-8 Ohms
RMS Power Handling: 200 Watts
MAX Power Handling: 400 Watts
Sensitivity (lw/lm): 107 dB
Frequency Response: 3000Hz-22KHz
Pair or Single: Single / Individual
Voice Coil Diameter: 1.5" / 38mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Aluminum
Magnet Material: Ferrite

Dimensions:

Overall Diameter: 4"/ 102mm
Overall Depth: 2.6" / 66mm
Front Mount Baffle Cutout: (Cut Hole) 3.6" / 92mm
Mounting Depth: 2.2" / 55mm
Motor Diameter: 3.5" / 90mm

INSTALLATION INSTRUCTIONS

If you purchased a Crossover Network for your woofer, Midrange or Tweeter system, you do not need to connect a condenser.
If your system does not include a Crossover Network, you must connect a capacitor as follows:


1. Connect either end of the capacitor to the positive terminal (+) of speaker.

2. Connect other end of the capacitor to the speaker wire harness; be certain to connect to the positive side of the harness, which is the radio output (+) side.

3. To get better sound performance, it is recommended to use capacitor 1.5F /250V for this unit.
