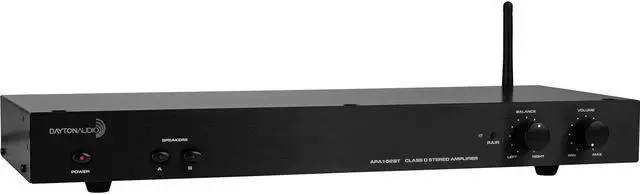

Dayton Audio APA102BT Class D Stereo 60 WPC Bluetooth Amplifier

Quick OverviewConnect with the Dayton Audio APA102BT amplifier and enjoy the convenience of Bluetooth, auto-on, and auto-source switching technology that makes playing your favorite music a breeze. Use this affordable, versatile amp when more power is needed in a multi-zone system, or in a powerful, audiophile-grade stereo hi-fi setup. Product Highlights Bluetooth 4.2 with aptX technology for wireless Hi-Fi listening Dual stereo RCA line level inputs switch sources automatically Convenient signal sensing power on and trigger modes save power when not in use A/B speaker selector simplifies connectivity 5-way binding posts on both sets of L/R speaker outputs Product Manuals / Spec Sheets / Downloads Dayton Audio APA102BT User Manual AddThis Sharing Buttons Share to FacebookFacebook Share to TwitterTwitter Share to MoreAddThis 4 Product Description The Dayton Audio APA102BT high fidelity power amplifier switches sources and powers on (in auto-on mode) automatically when a source signal is detected.

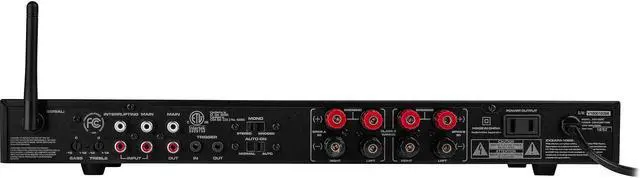

Bluetooth 4.2 with aptX, two line input sources, two-channels, and Class D topology make Dayton Audios APA102BT amplifier the heavyweight in its class. The APA102BT features two pairs of RCA line level inputs and a loop-out from the second source to feed additional zones, receivers, or other devices. Use the APA102BT for additional power when connected to a multi-zone audio system, or by itself to power a stereo speaker system. The APA102BT is rated at 80 watts RMS per channel into 4 ohms, and 60 watts RMS per channel into 8 ohms.

In bridged mono mode, both amplifier channels are combined for high-power monaural output. The amplifier is rated at 160 watts RMS into a single 8 ohm load when bridged. Each amplifier output channel incorporates robust protection circuitry for reliability and safety. Rack ears are included.

Specifications

: Output
power: 2 x 60 watts RMS into 8 ohms, 2 x 80 watts RMS into 4 ohms, 1 x 160 watts RMS into 8 ohms (minimum impedance) bridged mono
Bluetooth version: 4.2 with aptX
Total harmonic distortion: < 1.0 % @ 1 kHz
Signal to noise ratio: 88 dB, A-weighted
Frequency response: 10-30, 000 Hz
Input sensitivity: 600 mV
Power: 120 VAC, 60 Hz, 200 watt maximum
Amplifier chip: TDA8950TH
Dimensions: 16.9" W x 7.65" D x 2.15" H.

Product Details

Model Number APA102BT List Price $ 159.73 Color Black Unit of Measure Each UPC 848864056234 Warranty - Parts 5 Years Warranty - Labor 5 Years Product Shipping Weight (lbs. ) 6.2 Product Height 2.15" Product Width 16.9" Product Length -- Product Depth 7.65" Amplifier Type Power Amplifiers Power Output 2 x 60 watts RMS into 8 ohms 80 watts RMS into 4 ohms Power Output (RMS @ 70V) Range -- Output Channels 2 Output Connectors 277477 Output Types 285286 Inputs 2 Input Connectors 299 Input Impedance -- Signal-to-Noise Ratio 88 dB A-weighted THD @ Rated Power < 1.0 % @ 1 kHz Parametric EQ -- Phase Adjustment -- Low-pass Crossover -- Low Pass Adjustment -- Dynamic Range -- Frequency Response 10-30 000 Hz Efficiency -- Gain -- Bass Boost -- Voltage Requirement 120 VAC 60 Hz Auto-on Sensitivity Yes Stand-by Power Rating --
Special Features Bluetooth version: 4.2 with aptX
