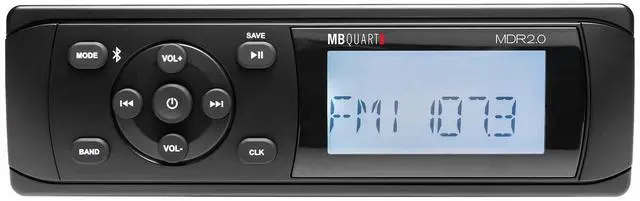

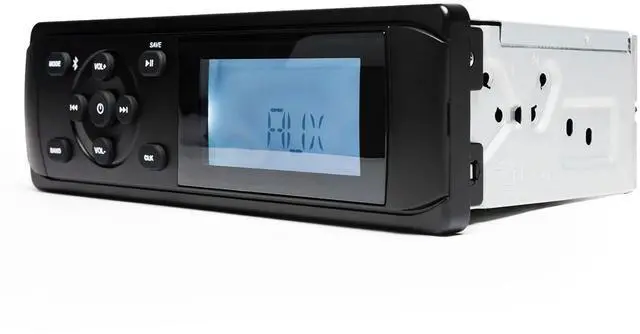

MB Quart MDR2.0 160 Watt Single DIN Marine Grade Digital Source Receiver Radio with AM/FM/Weather Band, Bluetooth, and USB Connection
- MARINE GRADE PROTECTION Meets or exceeds IPX5 requirements for water and dust proofing
- LIFE SHIELD This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors
- APPLE CONTROL Quick control and access of iTunes collection with iPhone, iPod and iPad
- SOURCE TYPE AM/FM/Bluetooth Radio allows all access to radio stations and content from Bluetooth enabled devices

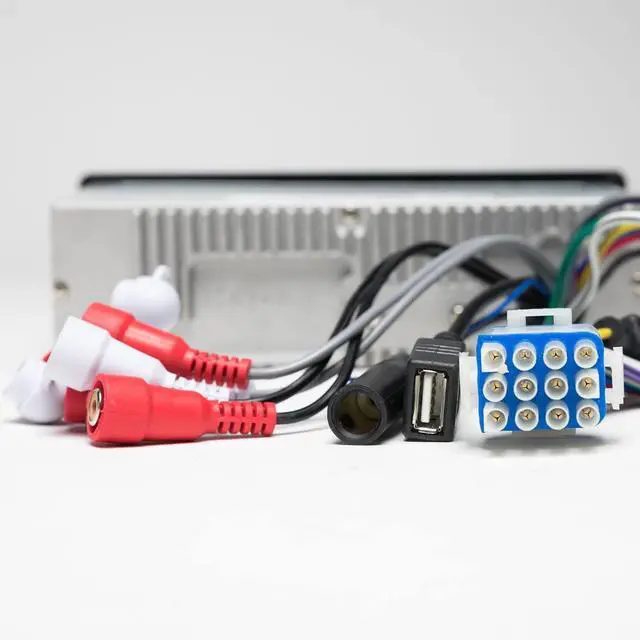

- INPUT TYPES Bluetooth, RCA, USB nearly nothing the device can not play
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DIN Mechless Marine Radio/Source Unit
Multimedia Digital Receiver with 160 Watt internal amplifier features AM/FM/Weather Band, Bluetooth, USB.
Multimedia Digital Receiver
160 Watt AM/FM/Weather band, Bluetooth, USB
Bluetooth Connect & Quick-Pair
Quick and secure pairing of devices with your music library with album art displayed
USB Control
Easily connect smartphones, portable media devices and streaming services. iPod control allows full Apple connectivity.
LIFE SHIELD

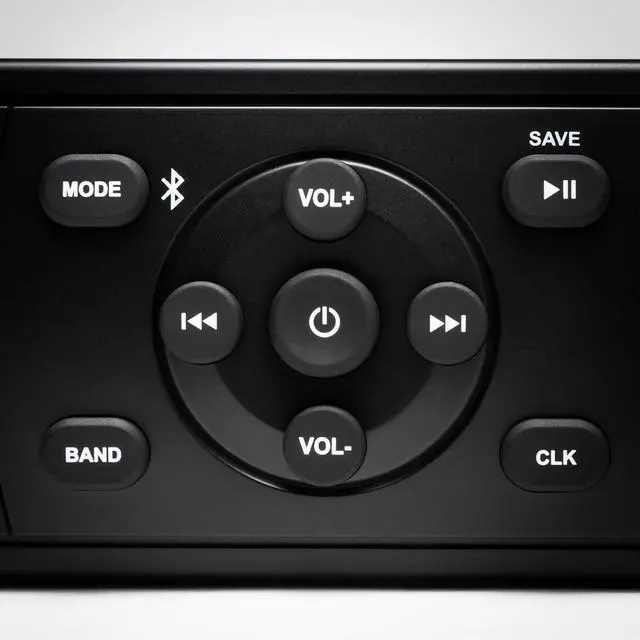

Marine certified to IPX5 with large waterproof buttons
SPECIFICATIONS:
RMS POWER OUTPUT
4 x 20 Watts
PEAK POWER OUTPUT
4 x 40 Watts
MAXIMUM THD+N AT 4 OHMS
81.2 dBA
EFFICIENCY AT FULL POWER 4 OHM (1KHZ)
0.639
IDLE CURRENT
0.3A
MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD)
4 Volts
SIGNAL TO NOISE (CTA-2006B)
- 86.2 dBA AUX, - 66.1 dBA Bluetooth
SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME)
Bluetooth - 76.2 dBA, Aux - 86.4 dBA
PREAMP FREQUENCY RESPONSE (+/- 3.0DB )
20Hz 10.2 kHz USB, 30Hz 9.7 kHz Bluetooth
AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB )
20Hz 20.0 kHz USB, 30Hz 20.0 kHz Bluetooth
STEREO SEPARATION (AUX INPUT)
- 45.60 dB @ 5kHz
FM MONO USABLE SENSITIVITY
3.6V
AM MONO USABLE SENSITIVITY
17µV
MINIMUM IMPEDANCE
4 Ohms
PRE-AMP OUTPUTS
1 Pair
DISPLAY TYPE
LCD
DIMENSIONS MOUNTING HOLE
7 x 2 inches
DIMENSIONS MOUNTING DEPTH
4 inches
TUNER SECTION FM STEREO FREQUENCY RANGE
87.5MH z-108MHz
TUNER SECTION SIGNAL TO NOISE RATIO
>55dB
BLUETOOTH RANGE
32 Feet (10 Meters)
OUTPUT VOLTAGE
4 Volts
Multimedia Digital Receiver with 160 Watt internal amplifier features AM/FM/Weather Band, Bluetooth, USB.
Multimedia Digital Receiver
160 Watt AM/FM/Weather band, Bluetooth, USB
Bluetooth Connect & Quick-Pair
Quick and secure pairing of devices with your music library with album art displayed
USB Control
Easily connect smartphones, portable media devices and streaming services. iPod control allows full Apple connectivity.
LIFE SHIELD
Marine certified to IPX5 with large waterproof buttons
SPECIFICATIONS:
RMS POWER OUTPUT
4 x 20 Watts
PEAK POWER OUTPUT
4 x 40 Watts
MAXIMUM THD+N AT 4 OHMS
81.2 dBA
EFFICIENCY AT FULL POWER 4 OHM (1KHZ)
0.639
IDLE CURRENT
0.3A
MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD)
4 Volts
SIGNAL TO NOISE (CTA-2006B)
- 86.2 dBA AUX, - 66.1 dBA Bluetooth
SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME)
Bluetooth - 76.2 dBA, Aux - 86.4 dBA
PREAMP FREQUENCY RESPONSE (+/- 3.0DB )
20Hz 10.2 kHz USB, 30Hz 9.7 kHz Bluetooth
AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB )
20Hz 20.0 kHz USB, 30Hz 20.0 kHz Bluetooth
STEREO SEPARATION (AUX INPUT)
- 45.60 dB @ 5kHz
FM MONO USABLE SENSITIVITY
3.6V
AM MONO USABLE SENSITIVITY
17µV
MINIMUM IMPEDANCE
4 Ohms
PRE-AMP OUTPUTS
1 Pair
DISPLAY TYPE
LCD
DIMENSIONS MOUNTING HOLE
7 x 2 inches
DIMENSIONS MOUNTING DEPTH
4 inches
TUNER SECTION FM STEREO FREQUENCY RANGE
87.5MH z-108MHz
TUNER SECTION SIGNAL TO NOISE RATIO
>55dB
BLUETOOTH RANGE
32 Feet (10 Meters)
OUTPUT VOLTAGE
4 Volts
