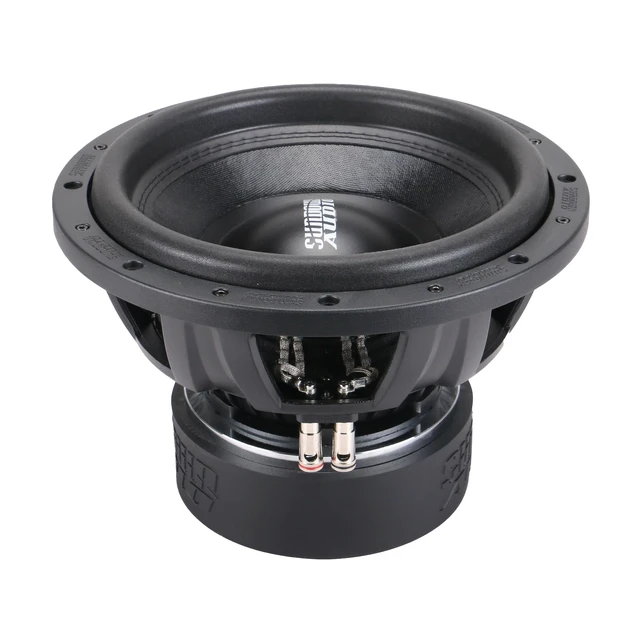

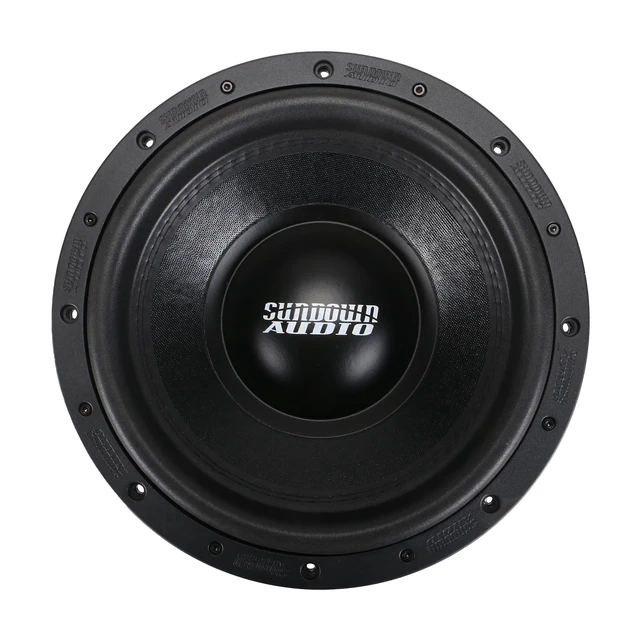

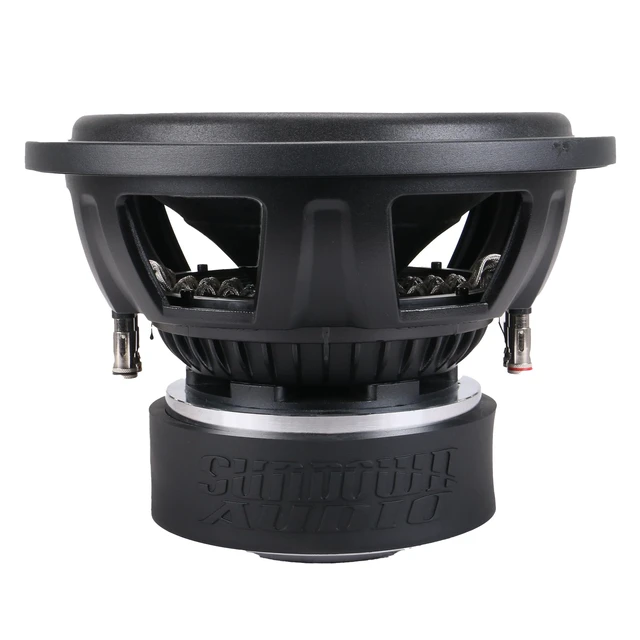

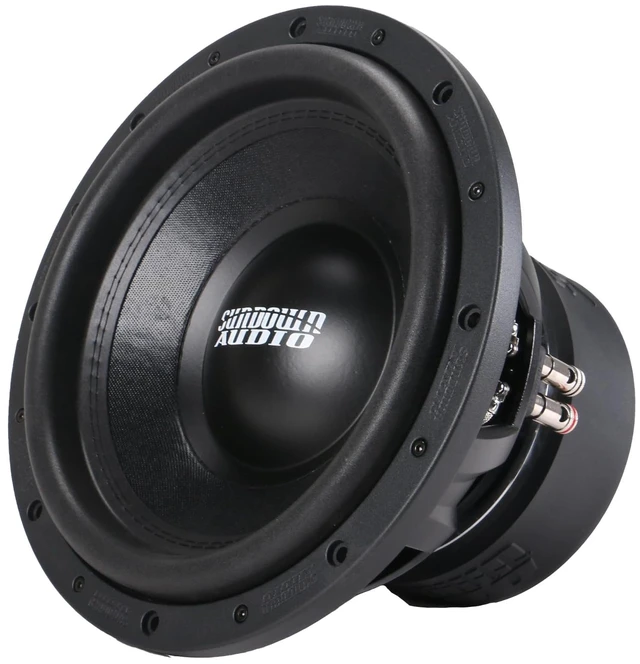

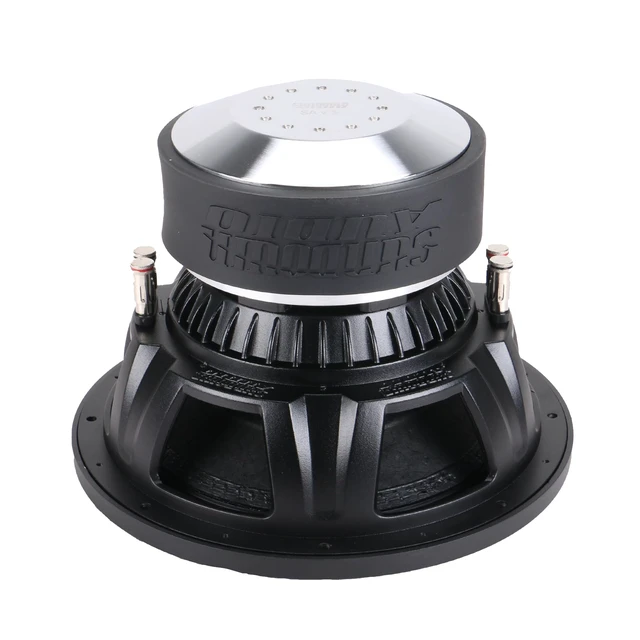

Sundown Audio SA-12 V.3 D4 12" Dual 4 Ohm Subwoofer - 1500W RMS / 3000W Peak - 22mm Xmax High Excursion Car Audio Sub - 8.4" Mount Depth - Low Distortion for Sealed/Ported Enclosure

Sundown Audio SA-12 V. 3 D4 12" Dual 4
Ohm Subwoofer: Unrivaled Bass Power and Precision for Your VehicleUnleash extraordinary deep, powerful, and clean bass with the Sundown Audio SA-12 V. 3 D4 12" Dual 4 Ohm Subwoofer. This custom-tooled, low-distortion driver is engineered for enthusiasts demanding uncompromising performance. With high excursion and robust construction, the SA-12 V. 3 D4 delivers extended, powerful bass notes with unmatched clarity and durability, making it the ultimate choice for high-end car audio systems.
Powerful Performance & Dynamic Output: The SA-12 V. 3 D4 handles a staggering 1500 Watts RMS (3000 Watts Peak). This ensures the subwoofer reproduces deep bass with authority and control, creating an immersive, impactful low-frequency experience. Every beat is rendered with astonishing force and clarity. Its Sens (dB @ 1w/1m) of 84.9 provides highly efficient power conversion, maximizing acoustic output. Ultra-High Excursion & Innovative Low Distortion Design: Central to its performance is 22mm Xmax (one-way linear excursion), displacing massive air for incredibly deep, impactful bass you'll feel. The v. 3 update includes a new surround with linear geometry and low distortion motor construction for pristine, accurate sound even at limits. A large aluminum Faraday ring further reduces distortion and enhances clarity across the bass spectrum. Superior Thermal Management & Robust Build: For long-term reliability, the SA-12 V. 3 D4 incorporates advanced thermal management. A vented magnetic gap with 16 chamfered vents actively promotes high-velocity air circulation over the high-temperature voice coil wire, efficiently dissipating heat. This, plus stitched-on XL tinsel lead wires and heavy-duty spring-loaded terminals, guarantees extended playtime without thermal compression. The patented high-strength cast aluminum frame provides exceptional rigidity and durability for intense use. Optimized for Any Enclosure Type & Dual 4
Ohm Flexibility: This versatile subwoofer performs exceptionally in both sealed and ported enclosures. For tight bass, a 1.0 cu ft sealed is recommended. For maximum SPL and deeper extension, a 1.75 cu ft ported (tuned to 35Hz with 26 sq in port area) unleashes its full potential. With Dual 4 Ohm voice coils and an RE of 6.06 Ohms, it offers flexible wiring for 2 Ohm (parallel) or 8 Ohm (series) final impedance, ensuring "Total System Control. "Precise
Dimensions & Installation Versatility: The SA-12 V. 3 D4 is engineered for optimized installation. It features an 8.4" mounting depth, suitable for various custom installations. The subwoofer has an Outside Diameter of 12.84 and a Cut-Out of 11.2. Its displacement volume is. 18 cu ft, crucial for accurate enclosure volume calculations. These precise measurements make it a top-tier choice for high-performance bass.
