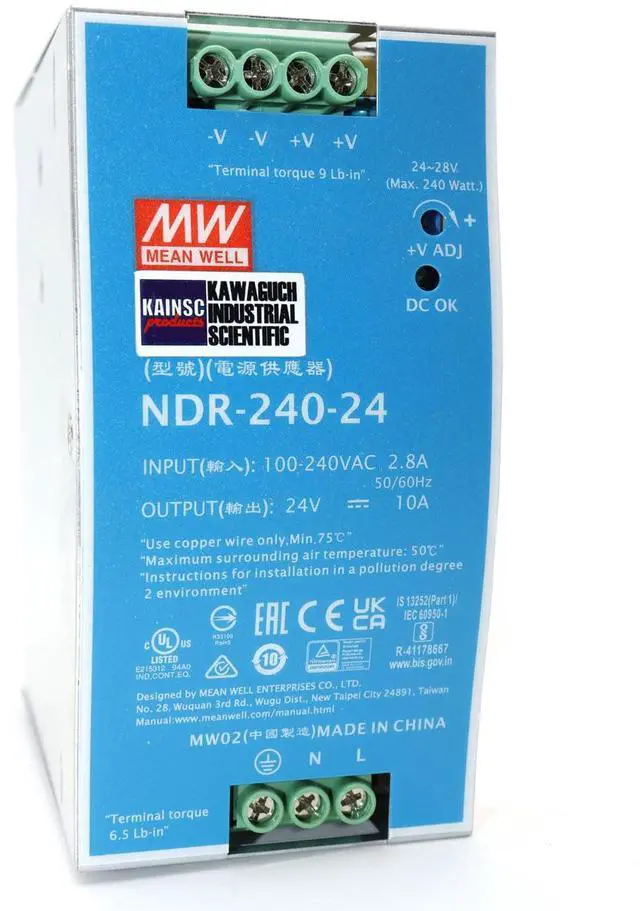

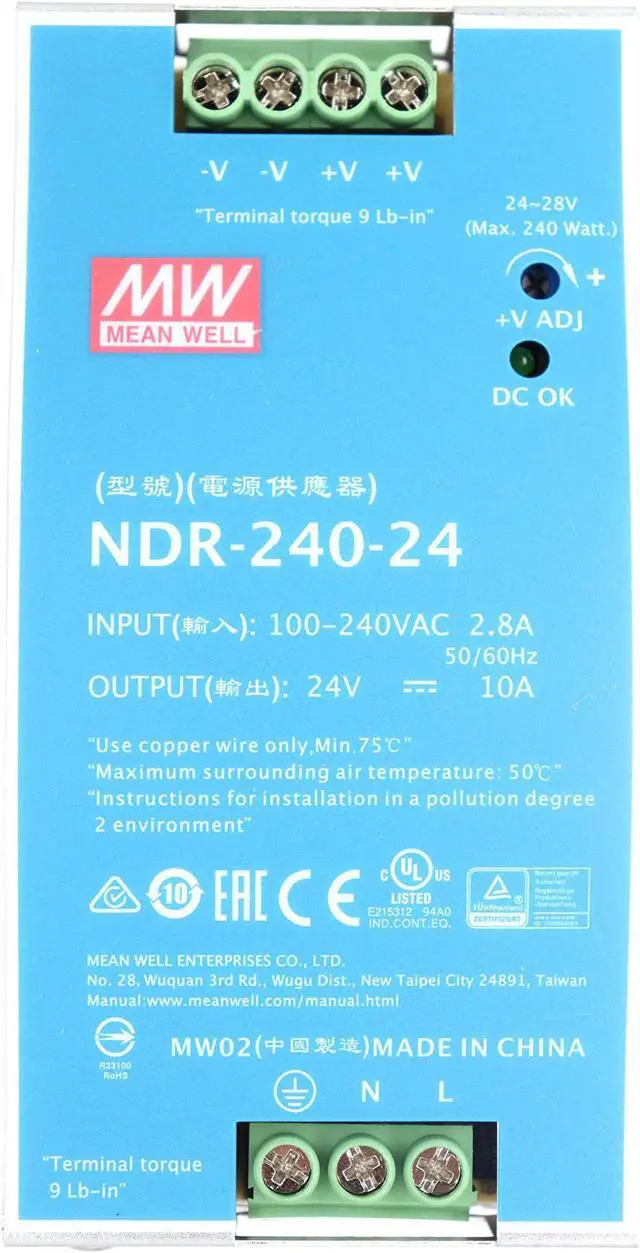

Mean Well NDR-240-24 240W 24VDC 10A AC/DC Industrial DIN Rail Power Supply Single Output Provided by KAINSC Products
- Output Voltage: 24V; Rated Current & Rated Power: 10A, 240W
- UL and CE Certificated; Input Voltage : 90 ~ 264VAC / 124 ~ 370 VDC
- Protections: Short circuit / Overload / Over Voltage / Over Temperature
- Ripple & Noise (max.): 150mVp-p; Setup, Rise Time: 1500ms, 100ms/230VAC & 3000ms, 100ms/115VAC at full load (measured at 20MHz of bandwidth by using 12 twisted pair-wire terminated with 0.1uf & 47uf parallel capacitor)
- High Efficiency 88.5%; UL 508 (Industrial Control Equipment) approved
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

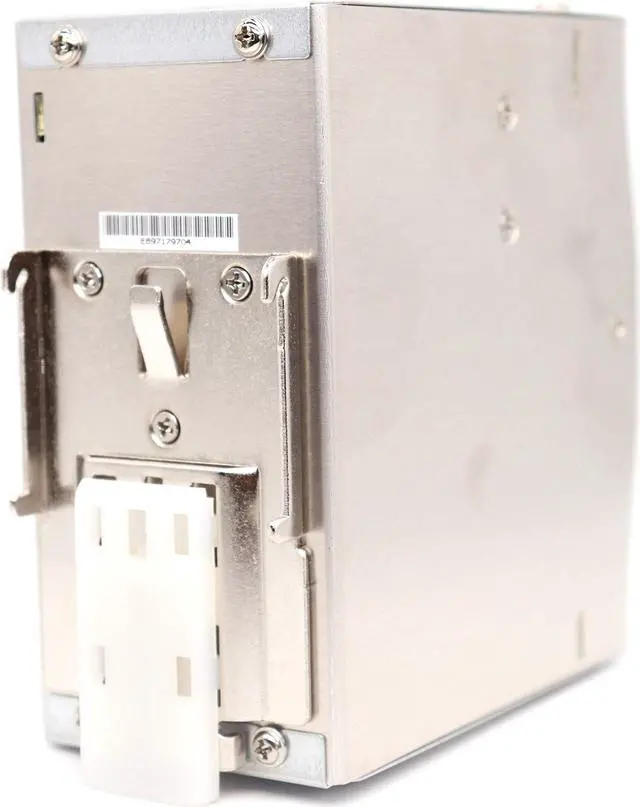

NDR-240 is one economical slim 240W Din Rail Power Supply Series, adapt to be installed on TS-35/ 7.5 or TS-35/15 mounting rails
EU RoHS: Compliant
ECCN (US): EAR99
Type: Regulated
Style: DIN Rail
Input/Output Type: AC/DC
Number of Outputs: 1
Output Type: Fixed
Output Voltage (V): 24
Output Current (A): 10
Output Power (W): 240
Minimum AC Input Voltage (V): 90
Maximum AC Input Voltage (V): 264
Minimum DC Input Voltage (V): 127
Maximum DC Input Voltage (V): 370
Minimum Isolation Voltage: 3000VAC
Line Regulation: 0.5 %
Load Regulation: 1%
Maximum Input Current (A): 2.5 (Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ±1
Efficiency (%): 88.5 (Typ)
Configurable: No
Input Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: No
Ripple & Noise: 150mV (Max)
Medical: No
Minimum Operating Temperature (°C): -20
Maximum Operating Temperature (°C): 70
Product Weight (g): 1000
Mounting: DIN Rail
Package Height: 125.2 mm
Package Length: 113.5 mm
Package Width: 63mm
EU RoHS: Compliant
ECCN (US): EAR99
Type: Regulated
Style: DIN Rail
Input/Output Type: AC/DC
Number of Outputs: 1
Output Type: Fixed
Output Voltage (V): 24
Output Current (A): 10
Output Power (W): 240
Minimum AC Input Voltage (V): 90
Maximum AC Input Voltage (V): 264
Minimum DC Input Voltage (V): 127
Maximum DC Input Voltage (V): 370
Minimum Isolation Voltage: 3000VAC
Line Regulation: 0.5 %
Load Regulation: 1%
Maximum Input Current (A): 2.5 (Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ±1
Efficiency (%): 88.5 (Typ)
Configurable: No
Input Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: No
Ripple & Noise: 150mV (Max)
Medical: No
Minimum Operating Temperature (°C): -20
Maximum Operating Temperature (°C): 70
Product Weight (g): 1000
Mounting: DIN Rail
Package Height: 125.2 mm
Package Length: 113.5 mm
Package Width: 63mm
