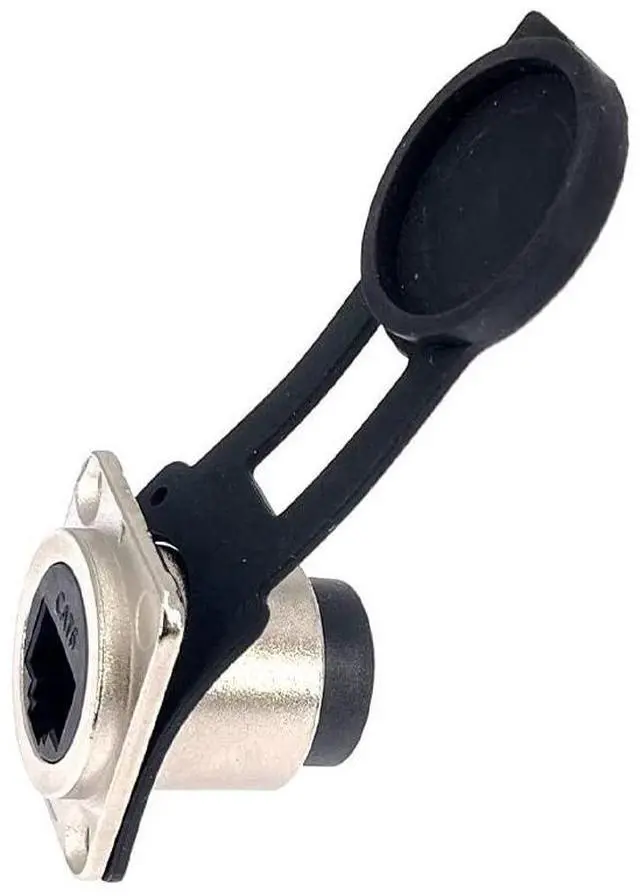

ANMBEST 5PCS Panel Mounting RJ45 CAT6 Connector Zinc Alloy Housing D-Type Cat5/5e/6 8P8C Ethernet LAN Cable Coupler Female to Female Network Bulkhead Socket
- Compatible with CAT6 cables, this connector supports high-speed Ethernet networking. Its D-Type 8P8C configuration ensures reliable connectivity for seamless data transmission. Perfect for extending Ethernet LAN cables in diverse settings, this coupler is a versatile solution for your networking needs.

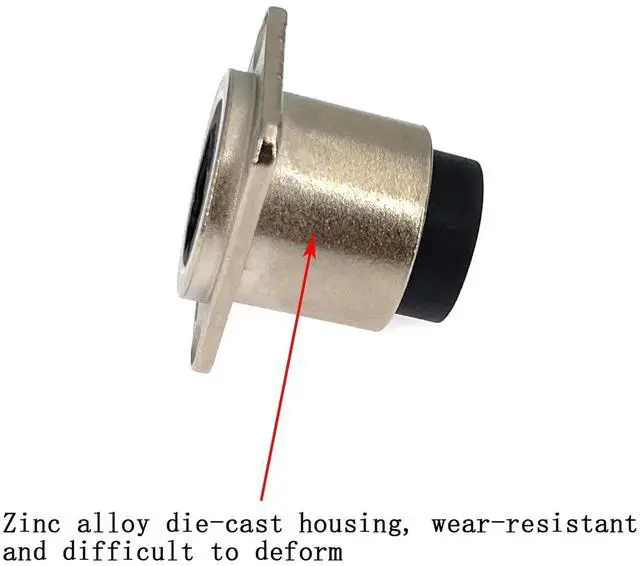

- Zinc alloy die-cast housing, wear-resistant and difficult to deform. The copper needles uses brass solid terminals and the surface is gold-plated. Adapt to a variety of harsh environments, acid, alkali, oxidation and so on. Guarantee the stability of the current.
- Standard D-Series Connector for Panel-Mount Installations, and save installation space, RJ45 female to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.
- D-type RJ45 female to female PCB signal panel coupler provides a direct cat5/5e/6 ethernet connection for data in home or industrial environments.
- Quality Assurance: Professiona
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical
of cores: 8
pinConnection type: RJ45 (standard port)
Connector transmission classification: CAT6Transmission
speed range: 10BASE-T. 100 BASE-T. 1000 BASE-T and 10000
BASE-T networkElectrical parameters: Rated
current: 1.5AR
ated voltage: 50VInsulation
resistance: 500MDielectric
strength: DC1000VContact
resistance:
10mMaterial:
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: nickel
plating/black electrophoretic paintContact material: Bronze (CuSn8)
Contact pin gold plating: 7m Au over
Ni platingInsulator material: PBTP 15%
GRWaterproof rubber ring: siliconeEnvironmental
conditions: Working
temperature: -40120CelsiusStorage
temperature: -2585CelsiusAtmospheric
pressure: 86106kPaRelative
humidity: 90%
RHMechanical parameters: Insertion
pressure: less
than 10NWithdrawal pressure: less
than 10NService life: more than 1000 timesInstallation panel thickness: min

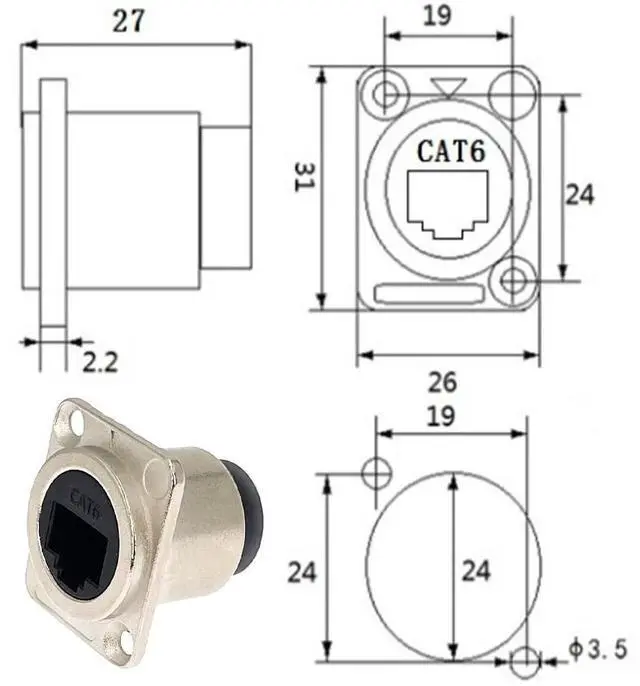

2.0 mm-max 10mmBase shape: D

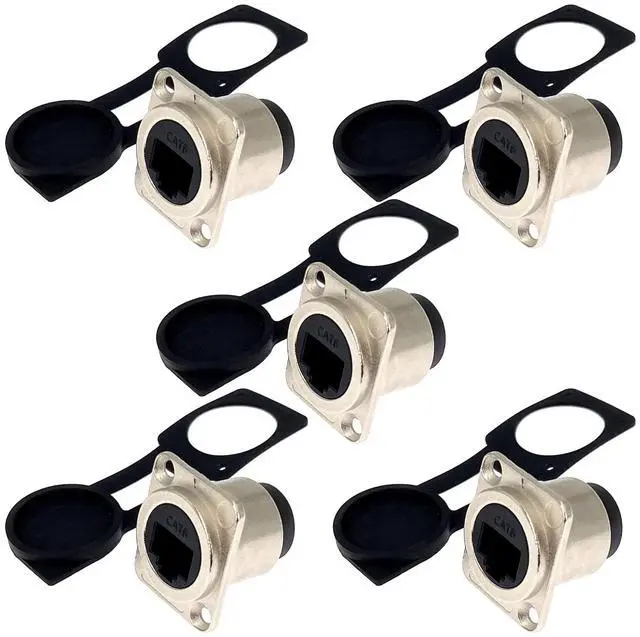

typePackage includes: 5 x Panel Mounting RJ45 CAT6 Connector
Specifications
: Numberof cores: 8
pinConnection type: RJ45 (standard port)
Connector transmission classification: CAT6Transmission
speed range: 10BASE-T. 100 BASE-T. 1000 BASE-T and 10000
BASE-T networkElectrical parameters: Rated
current: 1.5AR
ated voltage: 50VInsulation
resistance: 500MDielectric
strength: DC1000VContact
resistance:
10mMaterial:
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: nickel
plating/black electrophoretic paintContact material: Bronze (CuSn8)
Contact pin gold plating: 7m Au over
Ni platingInsulator material: PBTP 15%
GRWaterproof rubber ring: siliconeEnvironmental
conditions: Working
temperature: -40120CelsiusStorage
temperature: -2585CelsiusAtmospheric
pressure: 86106kPaRelative
humidity: 90%
RHMechanical parameters: Insertion
pressure: less
than 10NWithdrawal pressure: less
than 10NService life: more than 1000 timesInstallation panel thickness: min
2.0 mm-max 10mmBase shape: D
typePackage includes: 5 x Panel Mounting RJ45 CAT6 Connector
