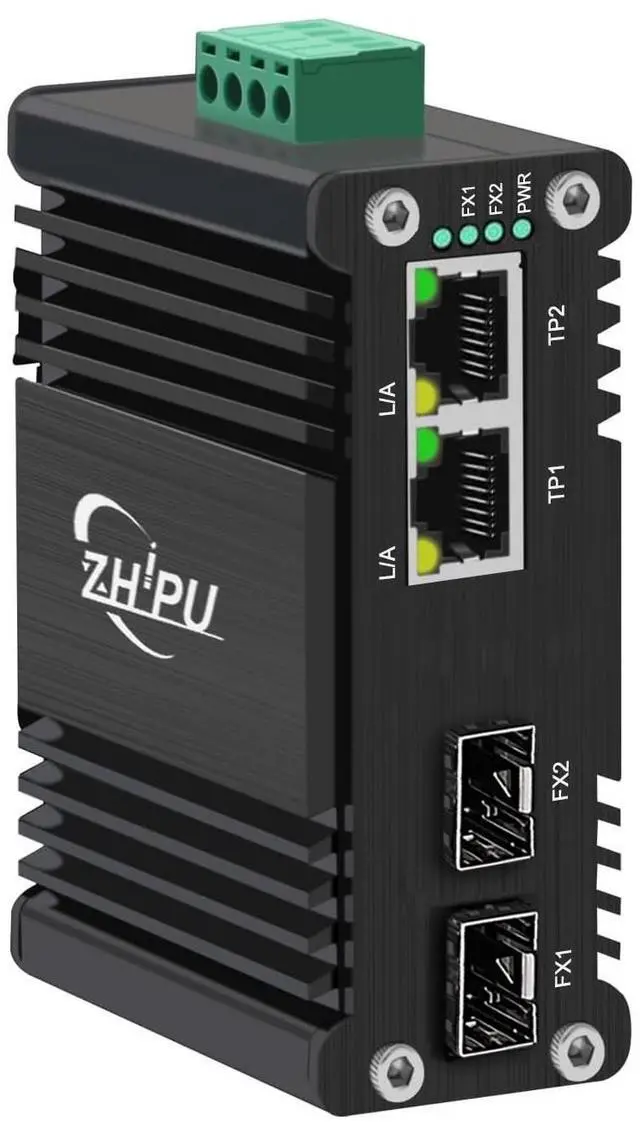

Yjntoximc Mini Industrial 2 Ports Gigabit Switch with DC1248V Dual Redundant Power Input, Din-Rail ethernet Switch with 2 SFP, Compact Design for VoIP Systems/Solar Power/RV Truck

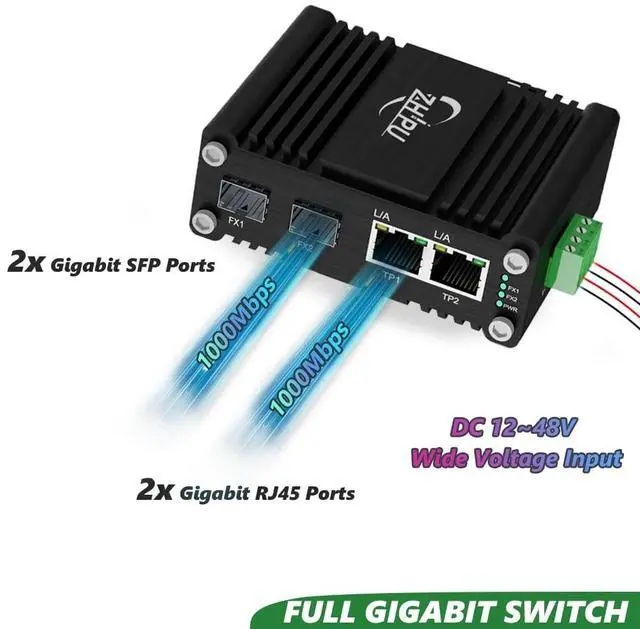

- Providing 2x 10/100/1000Base-T Ethernet ports and 2x 1000Base-X SFP slot (SFP module not included).
- Support 2 channel DC1248V redundant power inputs and auto failover, ensure high reliability networking system.
- Compact IP40 rugged metal enclosure; Wide working temperature -40C to 80C (-40F to 176F); Support DIN-Rail install.

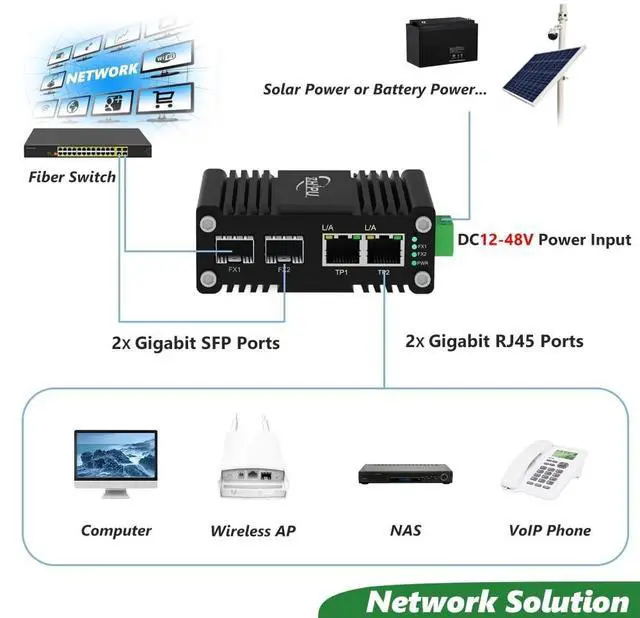

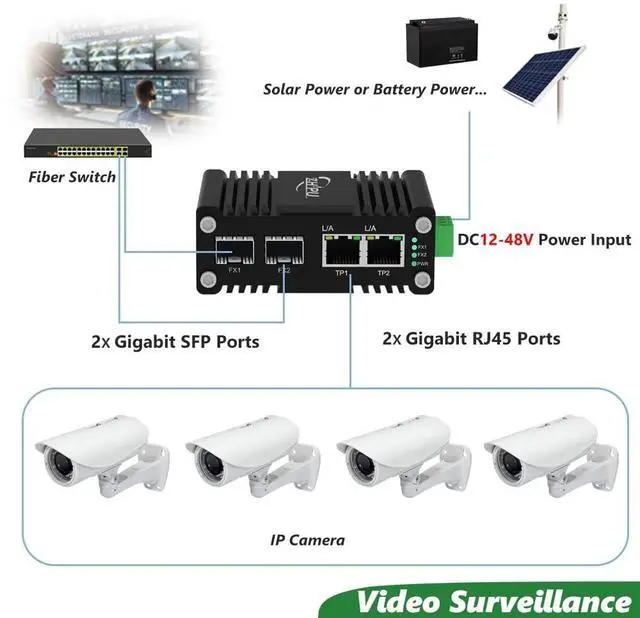

- Ideal for industrial automation, transportation, and smart city networks.
- The product support Non-PoE devices. No Power Supply or Cord.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview: The Industrial Gigabit 2-Port Switch has 2 Gigabit SFP port and 2 RJ45 port. Each port supports gigabit transfer speeds, ensuring lightning-fast data transmission. With the industrial IP40 Al case, it can thrive in extreme environments between -40F and 176F, making it ideal for outdoor installations or industrial applications.
Features: 1. 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function2. 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection) 3. Supports Link Fault Pass Through4. Supports Full/Half-duplex, Auto-negotiation5. 9K Bytes Jumbo Frame6. 12~48VDC Redundant Power Supply7. Supports DIN-Rail installation8. Environmentally hardened -40C to 75C (-40F to 167F) operating temperatureSpecification: 1)

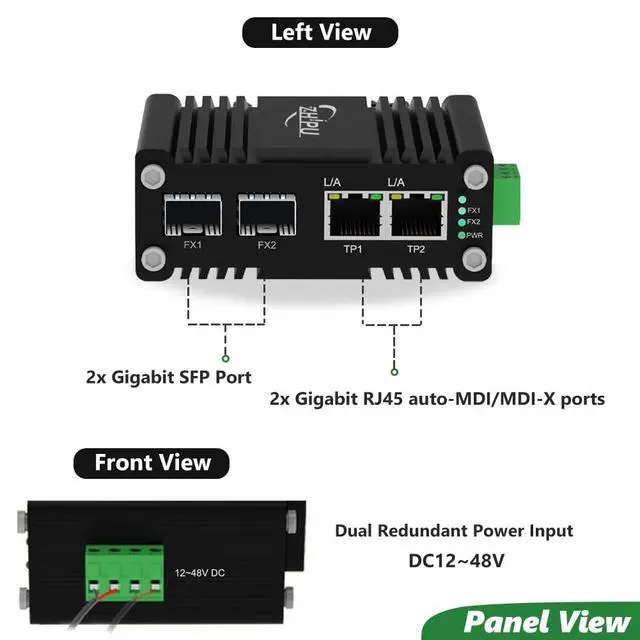

Connector: 2xRJ45, 2xSFP2)
Optical Port: 2 x SFP 1000Base-X or 100Base-FX (auto detection) 3)
SFP modules: single/multi-mode fiber, 1or 2 core4) Packet
Buffer Memory: 1
Mbit5) Packet Length: 9K bytes6)
MAC Address Table: 2K7)
Forward & Filtering Rate: 14, 880pps (10Mbps), 148, 800pps (100Mbps), 1, 488, 000pps (1000Mbps) 8)
Input Power: 12~48VDC, 4-pin terminal block9)
Power Consumption: 5W Max10)
Power PIN Assignment: 4, 5(+); 7, 8(-) (Alternative B Mode) 11)
Certification: CE, FCC12)
Mounting Options: DIN-Rail13)
Operating Temperature: -40C to 75C (-40F to 167F)14)
Storage Temperature: -40C to 85C (-40F to 185F)15)
Dimensions (WxDxH): 5.45 x 4.17 x 1.61 inch16)
Weight: 0.25
kgPackages: 1* 2-port Non-PoE Ethernet switch1* 4-pin terminal block1* User Manual
Features: 1. 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function2. 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection) 3. Supports Link Fault Pass Through4. Supports Full/Half-duplex, Auto-negotiation5. 9K Bytes Jumbo Frame6. 12~48VDC Redundant Power Supply7. Supports DIN-Rail installation8. Environmentally hardened -40C to 75C (-40F to 167F) operating temperatureSpecification: 1)
Connector: 2xRJ45, 2xSFP2)
Optical Port: 2 x SFP 1000Base-X or 100Base-FX (auto detection) 3)
SFP modules: single/multi-mode fiber, 1or 2 core4) Packet
Buffer Memory: 1
Mbit5) Packet Length: 9K bytes6)
MAC Address Table: 2K7)
Forward & Filtering Rate: 14, 880pps (10Mbps), 148, 800pps (100Mbps), 1, 488, 000pps (1000Mbps) 8)
Input Power: 12~48VDC, 4-pin terminal block9)
Power Consumption: 5W Max10)
Power PIN Assignment: 4, 5(+); 7, 8(-) (Alternative B Mode) 11)
Certification: CE, FCC12)
Mounting Options: DIN-Rail13)
Operating Temperature: -40C to 75C (-40F to 167F)14)
Storage Temperature: -40C to 85C (-40F to 185F)15)
Dimensions (WxDxH): 5.45 x 4.17 x 1.61 inch16)
Weight: 0.25
kgPackages: 1* 2-port Non-PoE Ethernet switch1* 4-pin terminal block1* User Manual
