VSDISPLAY 9.7 inch 2048x1536 IPS LCD LP097QX1/ LTL097QL01/ HQ097QX1 with Controller Board fit for DIY Cabinet Monitor
- 9.7" 2048X1536 IPS LCD Screen , Controller board work with 9.7inch eDP Interface LCD Screen
- Recommend Input Power Adapter: 12Vdc More than 2A. Power adapter connecotor : 3.5mmx1.35mm . (Help to notice,there is no power adapter in the packing list, pls prepare by yourself ).Come In Standby Model When Not Input Signal

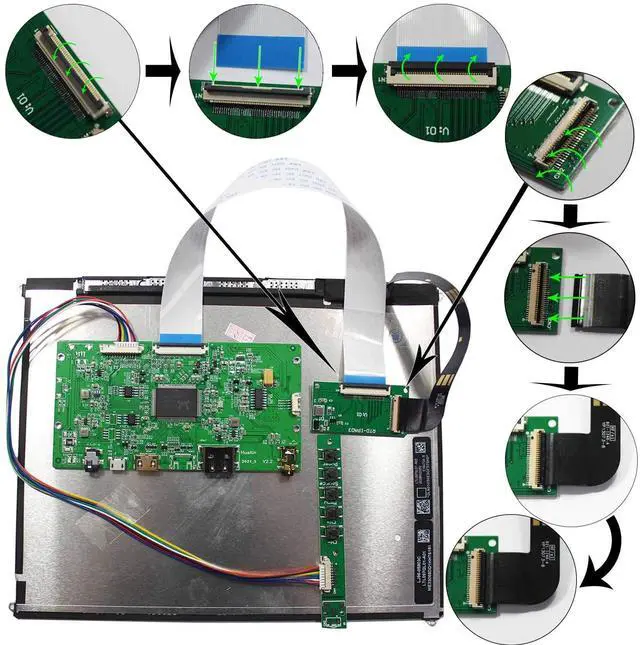

- When you get this product, please follow this page picture to connect,help to notice the cable direction and use a right power supply to power it.

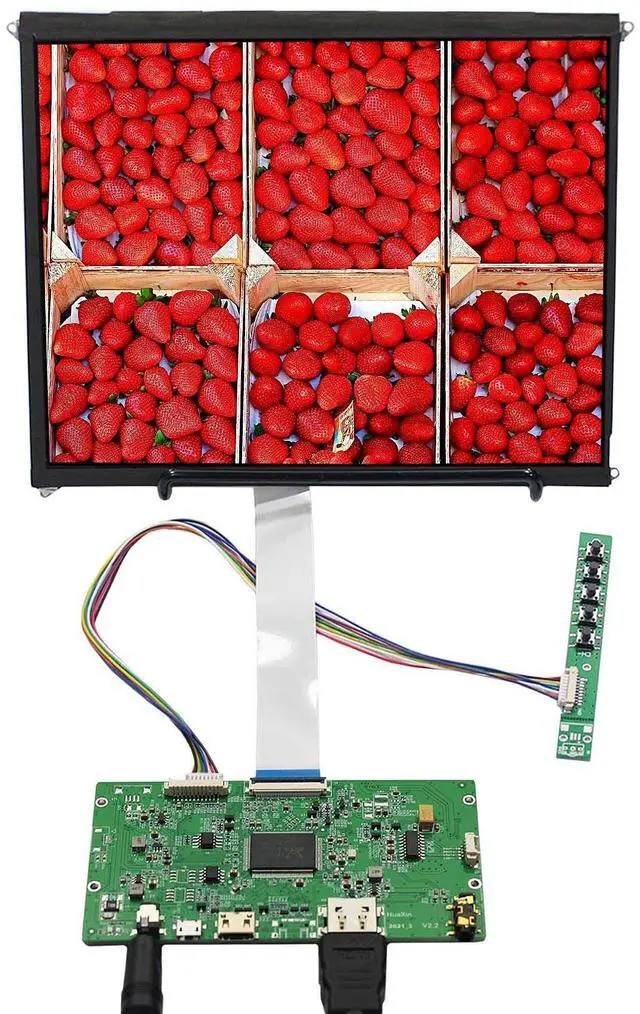

- Packing list : 1 LCD Controller Board VS-RTD09703-V1 1 9.7inch 2048x1536 IPS LCD Screen(One of LP097QX1 LTL097QL01 HQ097QX1) 1 Converter Board 1 Signal Cable 1 Keyboard With Cable
- Used as a general-purpose display, such as as a sub-display. (Please note the item is used - like new, which is not brand new.)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board: LCD Board Work for 9.7 inch eDP Interface

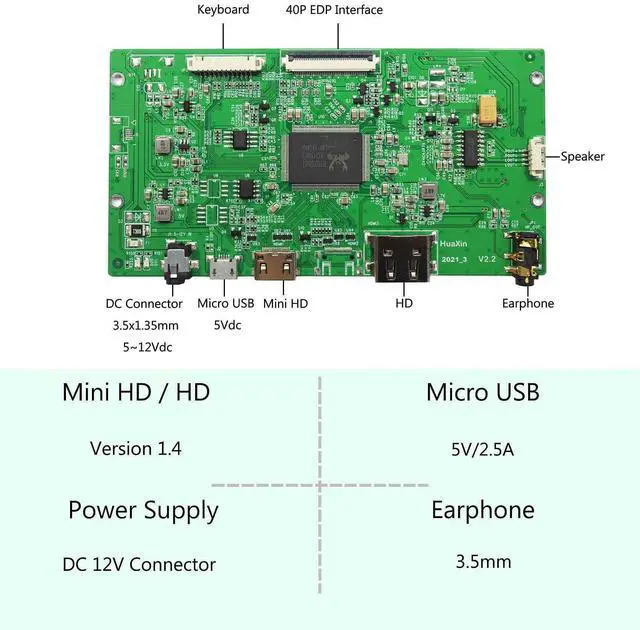

LCD ScreenInput Power Supply: DC Connector 3.5 mmx 1.35 mm 5~12Vdc Mirco USB 5Vdc. (Please note the lcd display can only be powered with the DC Connector, which can not be powered with the micro usb port. )Come In Standby Model When Not Input SignalStandby

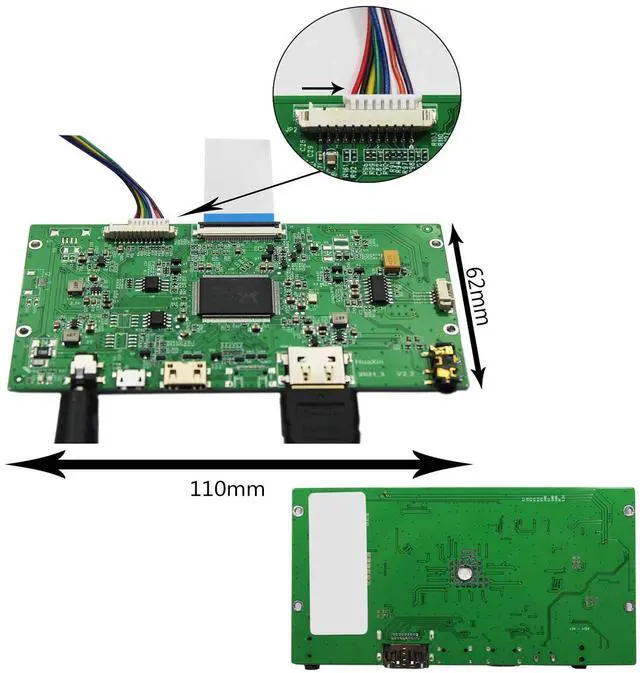

Model <1WAudio Output: Earphone Support Speaker 4ohm 2W or 8ohm 1.5WOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 120mm x 62.5 mm x 5mm 9.7" 2048X1536

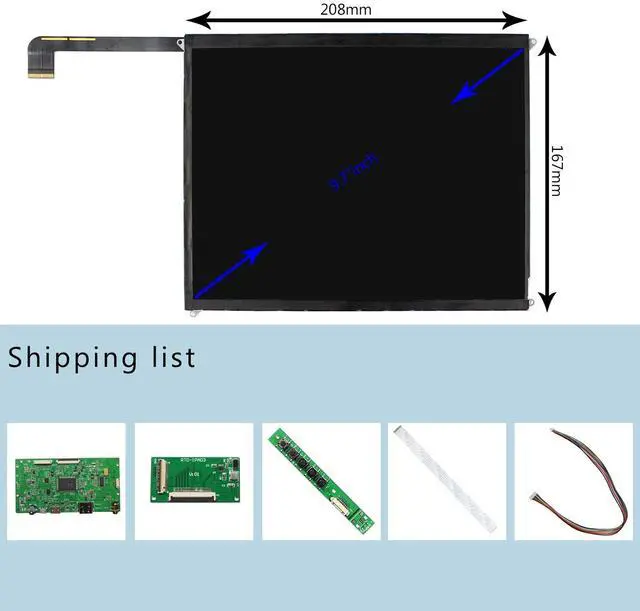

LCD Screen: Display Mode IPS, Normally Black, TransmissiveResolution 2048 (RGB) 1536Outline Size 208.88 167.125 (HVD) mmDisplay Area 196.608 147.456 (HV) mmBrightness 440 cd/m (Typ. )Contrast Ratio 600:1 (Typ. ) (TM) Viewing Angle 89/89/89/89 (Typ. ) (CR10) [Left / Right / Up / Down]Refresh Rate 60HzSignal Interface 51 pins eDP (4 Lanes), FPC
Backlight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 LCD Controller Board VS-RTD09703-V11 9.7 inch 2048x1536 IPS LCD Screen (One of LP097QX1 LTL097QL01 HQ097QX1) 1 Converter Board1 Signal Cable1 Keyboard With Cable
LCD ScreenInput Power Supply: DC Connector 3.5 mmx 1.35 mm 5~12Vdc Mirco USB 5Vdc. (Please note the lcd display can only be powered with the DC Connector, which can not be powered with the micro usb port. )Come In Standby Model When Not Input SignalStandby
Model <1WAudio Output: Earphone Support Speaker 4ohm 2W or 8ohm 1.5WOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 120mm x 62.5 mm x 5mm 9.7" 2048X1536
LCD Screen: Display Mode IPS, Normally Black, TransmissiveResolution 2048 (RGB) 1536Outline Size 208.88 167.125 (HVD) mmDisplay Area 196.608 147.456 (HV) mmBrightness 440 cd/m (Typ. )Contrast Ratio 600:1 (Typ. ) (TM) Viewing Angle 89/89/89/89 (Typ. ) (CR10) [Left / Right / Up / Down]Refresh Rate 60HzSignal Interface 51 pins eDP (4 Lanes), FPC
Backlight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 LCD Controller Board VS-RTD09703-V11 9.7 inch 2048x1536 IPS LCD Screen (One of LP097QX1 LTL097QL01 HQ097QX1) 1 Converter Board1 Signal Cable1 Keyboard With Cable
