Deal4GO AX200NGW 1650X 802.11ax 2.4Gbps Wi-Fi 6 M.2 NGFF Wireless WiFi Adapter w/Bluetooth 5.1 for Dell Alienware 13 R2 R3 15 R2/R3/R4 17 R3/R4/R5 AX200 0TKNXX TKNXX
- Only work with Windows 10* 64bit (NOTE: NOT works with Windows 7/8/8.1).
- Compatible with Dell Alienware 13 R2/R3, 15 R2/R3/R4, 17 R3/R4/R5, Area-51 R4/R5, Area-51 Threadripper Edition R3/R6/R7, Aurora R5/R6/R7/R8, G5 15 5587, G7 15 7588, XPS 8930. Compatible with Dell Alienware 13 R2/R3, 15 R2/R3/R4, 17 R3/R4/R5, Area-51 R4/R5, Area-51 Threadripper Edition R3/R6/R7, Aurora R5/R6/R7/R8, G5 15 5587, G7 15 7588, XPS 8930.
- Supports 2.4GHz or 5GHz Dual Band with Bluetooth 5.1, 5GHz up to 1730Mbps, 2.4GHz up to 574Mbps. (The router must on 160MHz and Supports 802.11AX)

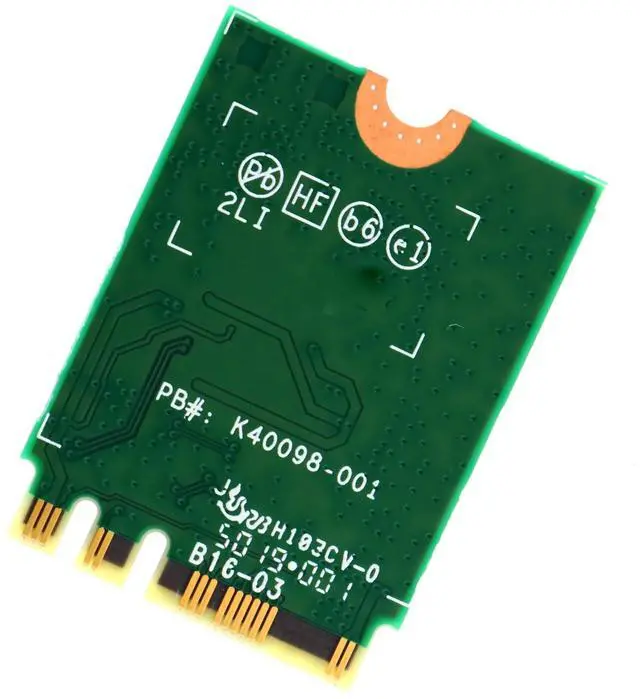

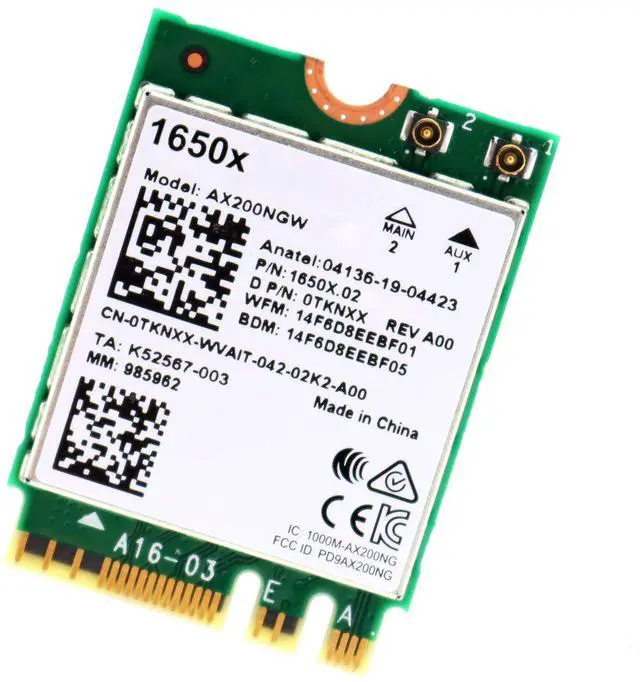

- Board Form Factor: M.2 2230 and a standard Key A or E socket, IPEX4 Antenna connector. It WILL NOT work in the M.2 slot in a Desktop.

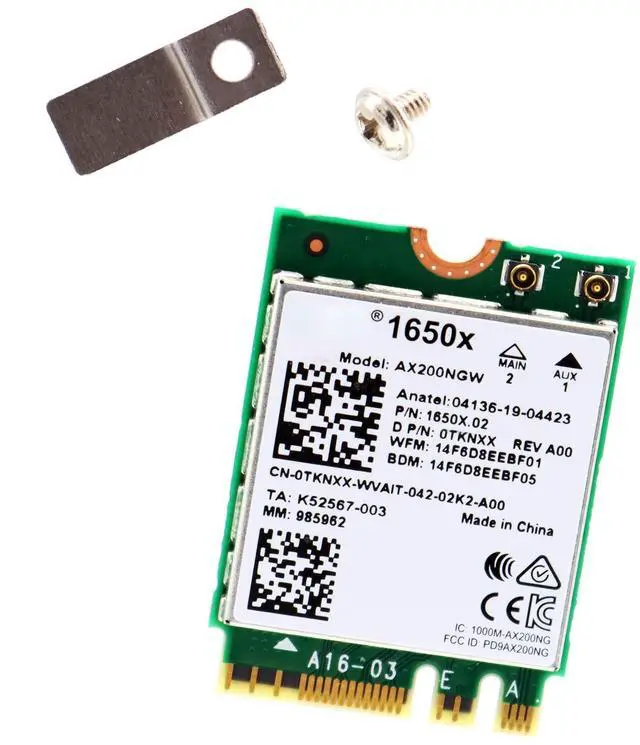

- Each Pack come with 1x 1650X M.2 NGFF WiFi Card, 1x Screws, 1x Holder Bracket
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Wireless-AC AX200 adapter supports Bluetooth+ 5 and 2x2 802.11 ac Wi-Fi including wave features such as 160MHz channels, delivering up to 2.4G bps and downlink MU-MIMO. These new features deliver a significant increase in user speeds in dense deployments, supporting fast downloads and long battery life compared to legacy 802.11 ac devices. Combined with Core processors and exceptional Intel wireless innovations, the Wireless-AC AX200 can provide Gigabit download speed and dramatically improve your connected experience at home, work, or on the go. Module is 22x30mm and should only be used in Laptops with an M.
2 connector and a standard Key A or E socket. It WILL NOT work in the M. 2 slot in a Desktop.
SpecificationsModel: AX200NGW/1650XConnector
interface: M.
2 2230System Interface Type: PCIe, USB
Antenna connector: IPEX 4 / iPX 4
ConnectorWireless data rate: - 5GHz up to 1730Mbps (You router must support 802.11AX )- 2.4GH z up to 574Mbps (160MHz)
Max speed: If your router support 802.11AX, the max speed up to 2.4G bpsStreams:
2X2Bluetooth: Bluetooth 5.1A ntenna
Diversity:
SupportedMU-MIMO:
YesFrequency: Dual Band 2.4 /5GHzIEEE
WLAN Standard: IEEE 802.11 a/b/g/n/ac, 802.11 d, 802.11 e, 802.11 h, 802.11 i, 802.11 w, 802.11 r, 802.11 k, 802.11 vWi-Fi
CERTIFIED*: 802.11 axOperating
Systems: Windows 10 32/64-bit (NOt support Windows 7/8/ 8.1 )Dimension (H x W x
D): 22 x 30 x 2.4 mm, 12 x 16 x 1.65 mmPackage
Includes: 1x 1650X M. 2 NGFF WiFi Card1x Screws1x Holder Bracket
2 connector and a standard Key A or E socket. It WILL NOT work in the M. 2 slot in a Desktop.
SpecificationsModel: AX200NGW/1650XConnector
interface: M.
2 2230System Interface Type: PCIe, USB
Antenna connector: IPEX 4 / iPX 4
ConnectorWireless data rate: - 5GHz up to 1730Mbps (You router must support 802.11AX )- 2.4GH z up to 574Mbps (160MHz)
Max speed: If your router support 802.11AX, the max speed up to 2.4G bpsStreams:
2X2Bluetooth: Bluetooth 5.1A ntenna
Diversity:
SupportedMU-MIMO:
YesFrequency: Dual Band 2.4 /5GHzIEEE
WLAN Standard: IEEE 802.11 a/b/g/n/ac, 802.11 d, 802.11 e, 802.11 h, 802.11 i, 802.11 w, 802.11 r, 802.11 k, 802.11 vWi-Fi
CERTIFIED*: 802.11 axOperating
Systems: Windows 10 32/64-bit (NOt support Windows 7/8/ 8.1 )Dimension (H x W x
D): 22 x 30 x 2.4 mm, 12 x 16 x 1.65 mmPackage
Includes: 1x 1650X M. 2 NGFF WiFi Card1x Screws1x Holder Bracket
