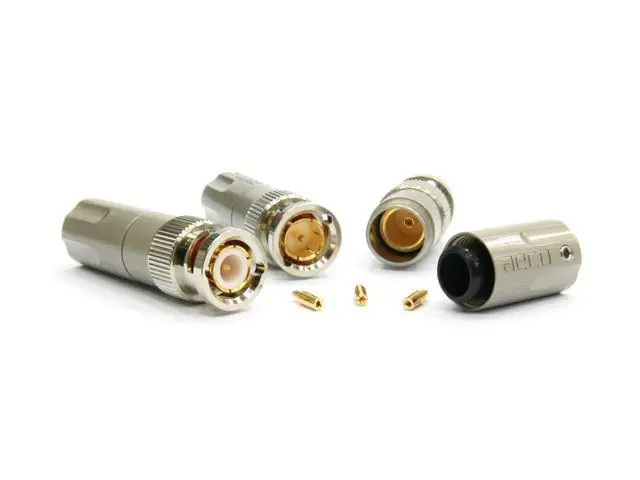

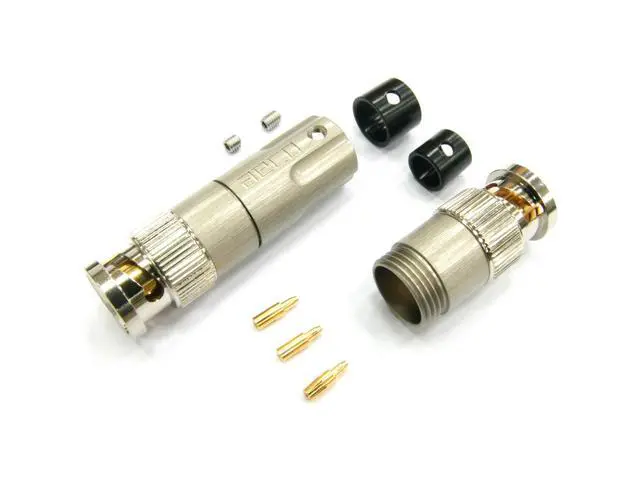

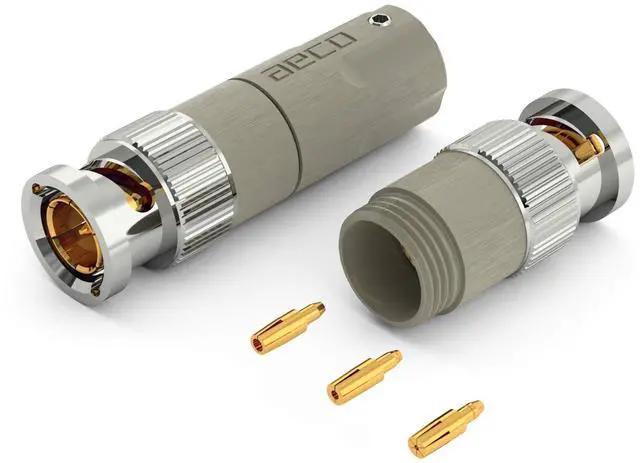

aeco BNC Plug ABC-1471, 2pcs/1set, 75ohm, Gold Plating, Vacuum Bag
- Provide much selection of the cable type.
- It's allow to connect conductor by solder or crimp.
- VSWR 1.2 Max. @ 1GHz.
- High-purity copper(over 99%) made.
- 10u" Gold plating (no nickel base).
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

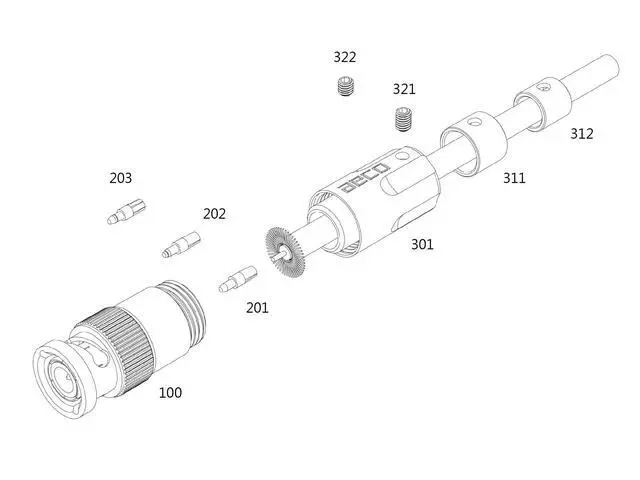

Material: Contact
Pin: beryllium Copper (#C17300 / copper contain 97% at least)Body: Brass
Zinc alloy (#C3604)Spring:
SteelWasher:
SteelShell: Brass
Zinc alloy(#C3604)Screw: Stainless
Steel(#SUS304)Finish: Contact
Pin: 10u" gold plating (no nickel base)
Body: 10u" gold plating (no nickel base)
Spring: Nickel
platingWasher: Nickel
platingShell: Satin
nickel plating + topcoatScrew: NatureElectrical
Characteristics:
ABC-1471Impedance: 75 ohmsFrequency
Range:

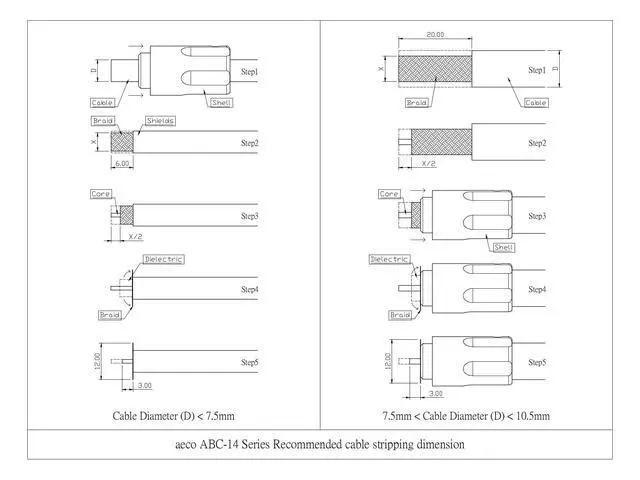

1GHzVSWR: up to 1.2C ontact resistance <0.1 mOhmDimensionCable Hole: 10.5mmSleeve Hole: 6.5/8.5mmBiggest OD: 14.5mmTotal Length: 42.0mmThe corresponding of the cable size:Center conductor <01.5mmInsulation OD > 03.0 mmWoven shield OD> 07.5 mmOuter plastic sheath
OD < 10.5 mmmore info: www. aeco. tw
Pin: beryllium Copper (#C17300 / copper contain 97% at least)Body: Brass
Zinc alloy (#C3604)Spring:
SteelWasher:
SteelShell: Brass
Zinc alloy(#C3604)Screw: Stainless
Steel(#SUS304)Finish: Contact
Pin: 10u" gold plating (no nickel base)
Body: 10u" gold plating (no nickel base)
Spring: Nickel
platingWasher: Nickel
platingShell: Satin
nickel plating + topcoatScrew: NatureElectrical
Characteristics:
ABC-1471Impedance: 75 ohmsFrequency
Range:
1GHzVSWR: up to 1.2C ontact resistance <0.1 mOhmDimensionCable Hole: 10.5mmSleeve Hole: 6.5/8.5mmBiggest OD: 14.5mmTotal Length: 42.0mmThe corresponding of the cable size:Center conductor <01.5mmInsulation OD > 03.0 mmWoven shield OD> 07.5 mmOuter plastic sheath
OD < 10.5 mmmore info: www. aeco. tw
