ANMBEST 2PCS Thinner DB37 Solderless RS232 D-SUB Serial to 37-pin Port Terminal Female Adapter Connector Breakout Board with Case Long Bolts Tail Pipe

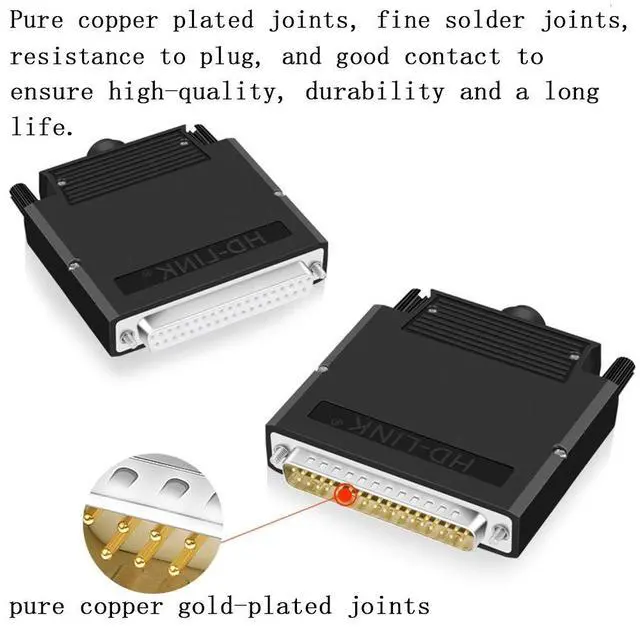

- HIGH QUALITY&DURABLE: Pure copper plated joints, fine solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life. The outer casing is made of environmentally friendly PP engineering material, which is soft and durable.

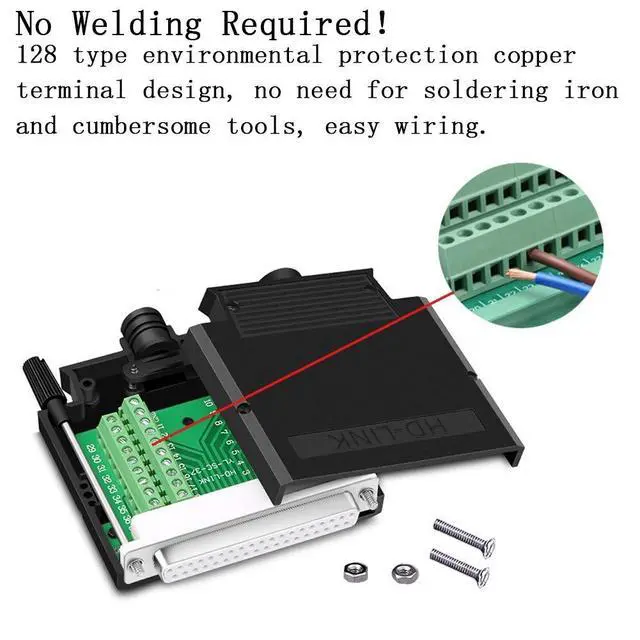

- EASY TO USE: No welding required, 128 type environmental protection copper terminal design, no need for soldering iron and cumbersome tools, easy wiring.

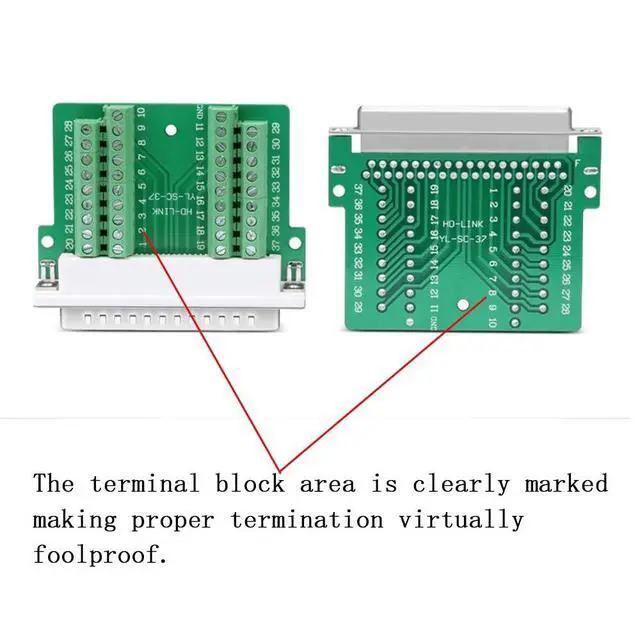

- REDUCE ERRORS: The terminal block area is clearly marked making proper termination virtually foolproof.
- THINNER: The thickness is only 16mm, which is 4mm thinner than the normal solderless connectors, ensuring that the product can be used in a narrow space.
- WIDELY APPLICATIONS: It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera,PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

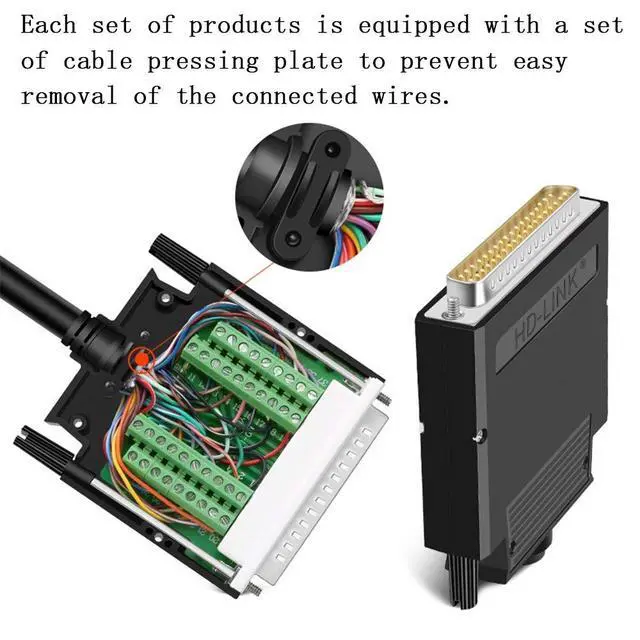

These DB37 Female Solderless Connectors are used to terminate the connection type of a cable. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.
Technical
Name: Thin
DB37 solderless modulePlug type:
femaleAccessories: housing, screw, card
line buckleConnector material: pure copper plated jointContact
Material: CopperHousing
material: environmentally friendly
PP engineering materialsShell type: folding
snap-onOpening size (cable port): 10.5
mm/ 0.41T hickness: 16mm/ 0.63C able
Specification: 26-16 AWG
Torque: 0.2N m ( 1.7L b-In.
)Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.
Size: 76 mm 73.5 mm16 mm/ 2.992.

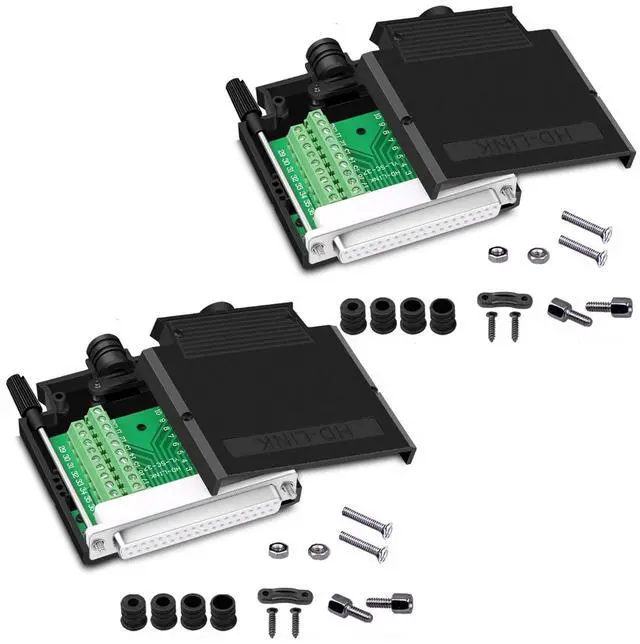

890.63P ackage includes: 2 x DB37 Female Solderless Connectors2x cable pressing plate4x Screws4x Long bolts2x 5mm tail pipe2x 6mm tail pipe2x 7.5 mm tail pipe2x 8.5 mm tail pipe
Technical
Specifications
:Name: Thin
DB37 solderless modulePlug type:
femaleAccessories: housing, screw, card
line buckleConnector material: pure copper plated jointContact
Material: CopperHousing
material: environmentally friendly
PP engineering materialsShell type: folding
snap-onOpening size (cable port): 10.5
mm/ 0.41T hickness: 16mm/ 0.63C able
Specification: 26-16 AWG
Torque: 0.2N m ( 1.7L b-In.
)Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.
Size: 76 mm 73.5 mm16 mm/ 2.992.
890.63P ackage includes: 2 x DB37 Female Solderless Connectors2x cable pressing plate4x Screws4x Long bolts2x 5mm tail pipe2x 6mm tail pipe2x 7.5 mm tail pipe2x 8.5 mm tail pipe
