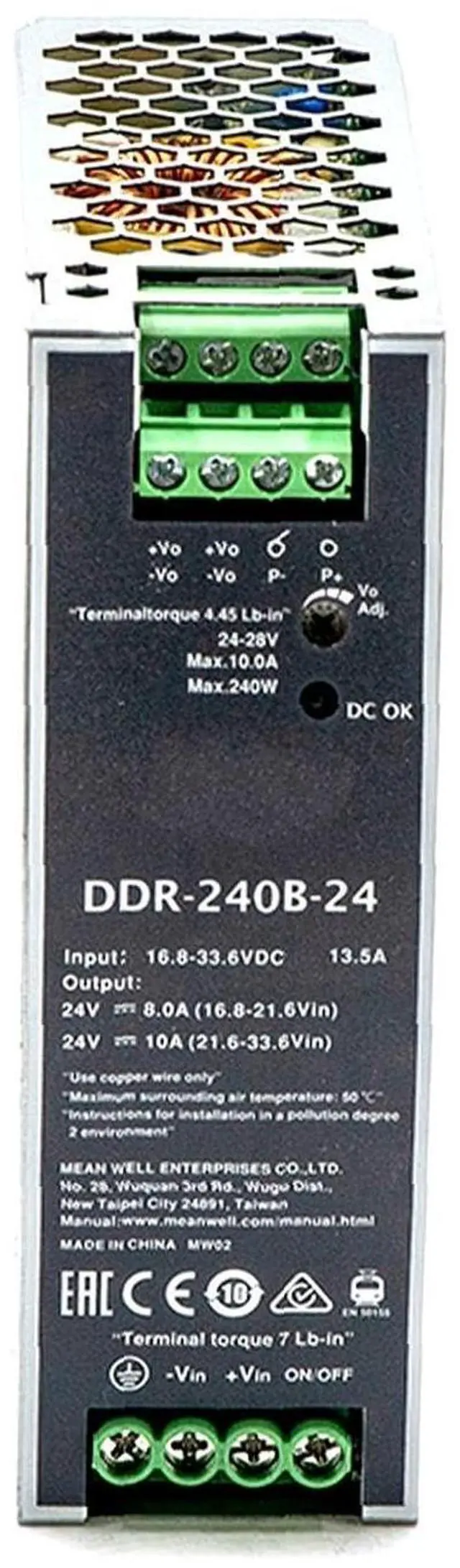

DDR-240B-24 24V 10A DC-DC Converter, Ultra Slim, 16.8-33.6VDC Input, Railway Applications
- Ultra Slim & Wide Input Range: This 240W DC-DC converter features a space-saving 40mm width and operates with a wide 16.8-33.6VDC input, suitable for diverse applications.
- High Performance & Efficiency: With a 960W (3+1) current share capability and up to 150% peak load capacity, this converter ensures reliable operation for demanding loads.
- Ruggedized for Harsh Environments: Designed for -40 to +70C wide operating temperature range, this converter withstands challenging industrial conditions.
- Enhanced Safety & Protection: Featuring 4KVdc input/output isolation and comprehensive protection (short circuit, overload, overvoltage, over-temperature, input reverse polarity, input under-voltage), ensuring operational safety.
- Versatile Mounting & Certifications: Supports TS-35/7.5 or 15 rail mounting and complies with railway standards BS EN/EN50155 and BS EN/EN45545-2, ideal for railway and industrial applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The cumquat DDR-240B-24 is a 240W DC-DC converter designed for demanding industrial applications including railway, industrial control systems and more. With a 16.8 - 33.6VDC input range, it delivers a stable 24V DC output at 10A. The ultra-slim 40mm design allows for space-efficient installation on TS-35/ 7.5 or 15 rails. The converter boasts a wide operating temperature range, high efficiency, 150% peak load capacity and comprehensive protection features, ensuring reliable performance in harsh environments.
