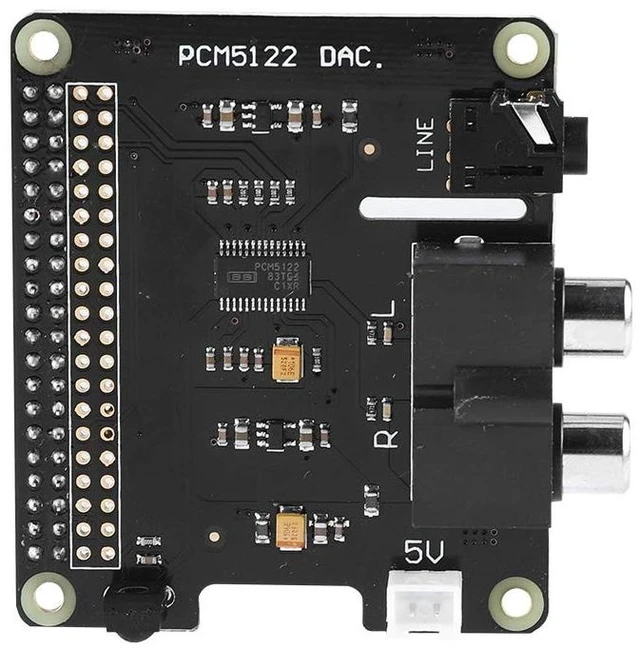

Pi Expansion Board Pi + HD Audio PCM5122 24 bit Expansion Board for Pi 3 Model B / 2B /B+/A+/ Pi Zero W

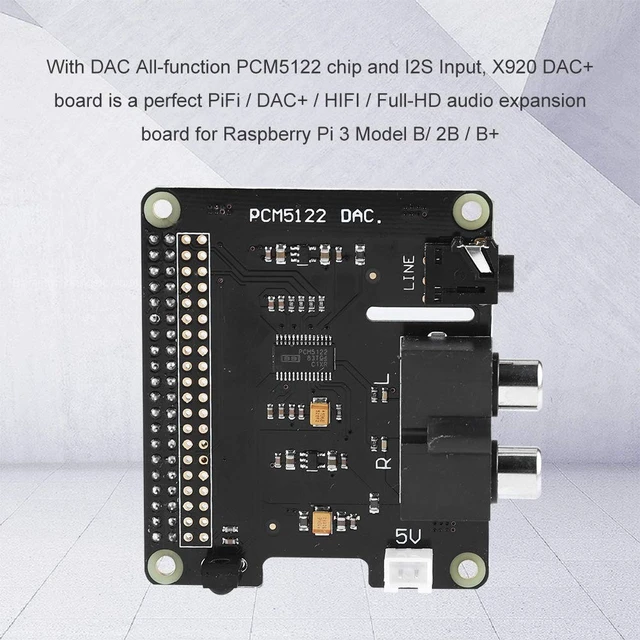

- With DAC All function PCM5122 chip and I2S Input, X920 DAC+ board is a HiFi / DAC+ / HIFI / Full HD audio expansion board for 3 Model B/ 2B / B+;
- After using X920 board, User can coordinate with the broadcast system (such as Volumio, RuneAudio, OSMC, XMBC(Kodi), MOODE etc.) to set up your own HIFI player network.

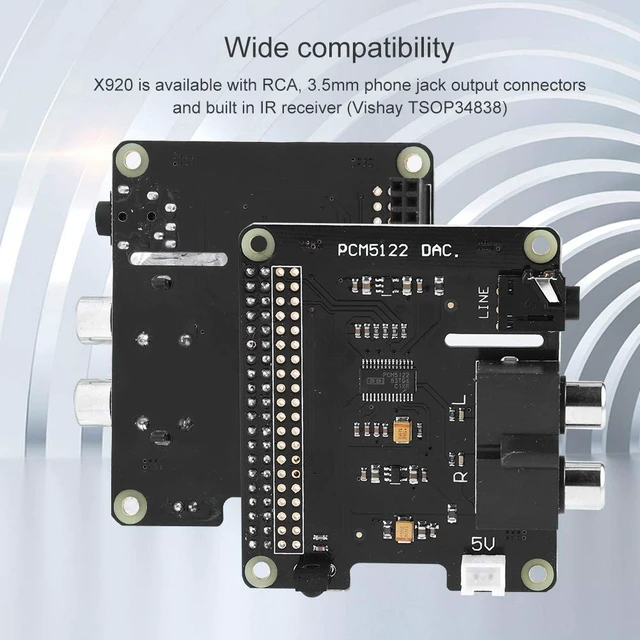

- X920 is available with , 3.5mm phone jack output connectors and built in IR receiver ( TSOP34838);

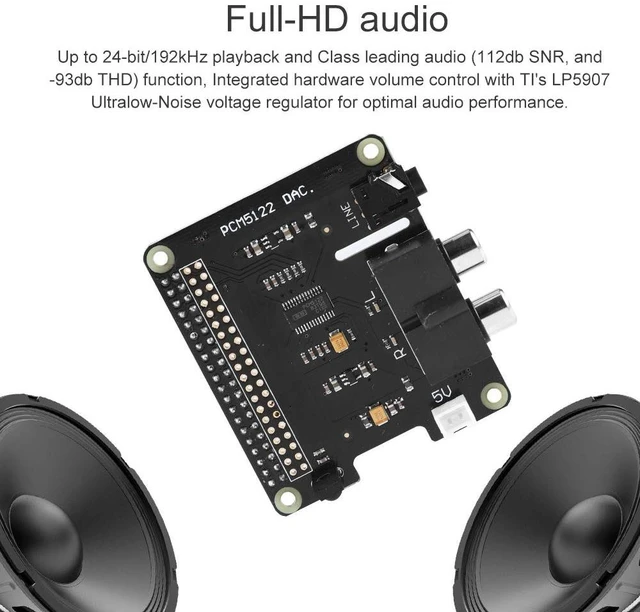

- Full HD audio up to 24 bit/192kHz playback and Class leading audio (112db SNR, and 93db THD) function, Integrated hardware volume control with TI's LP5907 Ultralow Noise voltage regulator for optimal audio performance.

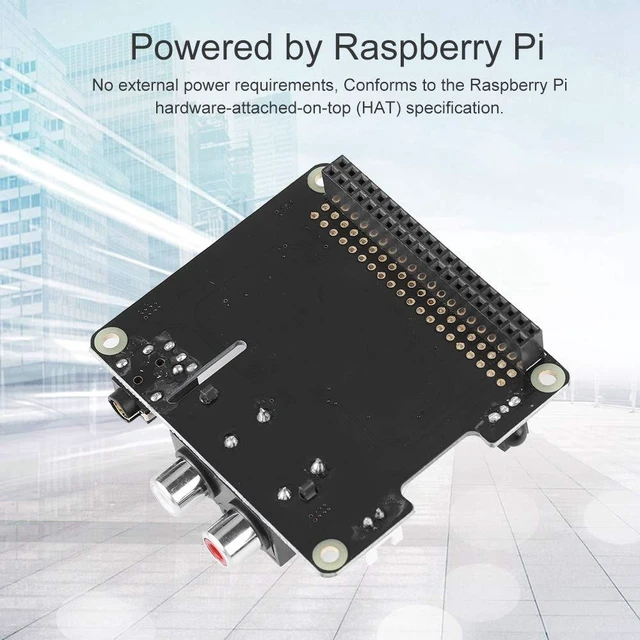

- Powered by , no external power requirements, Conforms to the hardware attached on top (HAT) specification.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: I2S Input (LRCK GPIO19, GPIO18, DATA GPIO21, GND)Output
Ports: 1 x 3.5 mm phone jack, 2 x connectorsAnalog audio output level: 2.0VRMSR esolution/Sampling
Rate: upto 24bit / 192KHz ( I2S)
IR receiver: GPIO17, 38KHzOperating
System: Moode Audio Player, OSMC, Openelec, Raspbian, Volumio, Pi Core
Player,
RuneAudioSupport: Volumio, RuneAudio, OSMC, XMBC (Kodi), MOODE etc.
Full HD audio: up to 24 bit/192kHz playbackBuilt in audiophile TI Burr Brown DAC (TI PCM5122)
Class leading audio: 112db SNR, and 93db THD
Integrated hardware volume controlTI's LP5907 Ultralow Noise voltage regulator for optimal audio performanceBuilt in
IR receiver: TSOP34838)Available with and 3.5 mm phone jack output connectorsPowered by, no external power requirementsConforms to the hardware attached on top (HAT) specificationAccess to GPIO pins on HAT
Packing List: 1 x Expansion Board
Ports: 1 x 3.5 mm phone jack, 2 x connectorsAnalog audio output level: 2.0VRMSR esolution/Sampling
Rate: upto 24bit / 192KHz ( I2S)
IR receiver: GPIO17, 38KHzOperating
System: Moode Audio Player, OSMC, Openelec, Raspbian, Volumio, Pi Core
Player,
RuneAudioSupport: Volumio, RuneAudio, OSMC, XMBC (Kodi), MOODE etc.
Full HD audio: up to 24 bit/192kHz playbackBuilt in audiophile TI Burr Brown DAC (TI PCM5122)
Class leading audio: 112db SNR, and 93db THD
Integrated hardware volume controlTI's LP5907 Ultralow Noise voltage regulator for optimal audio performanceBuilt in
IR receiver: TSOP34838)Available with and 3.5 mm phone jack output connectorsPowered by, no external power requirementsConforms to the hardware attached on top (HAT) specificationAccess to GPIO pins on HAT
Packing List: 1 x Expansion Board
