$393.99
Meet Your Seller

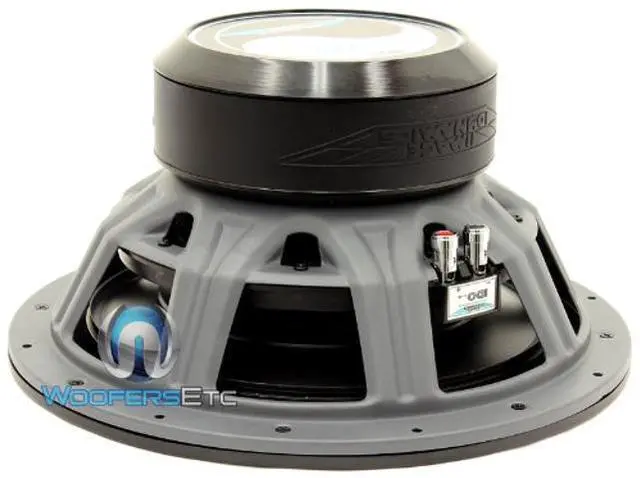

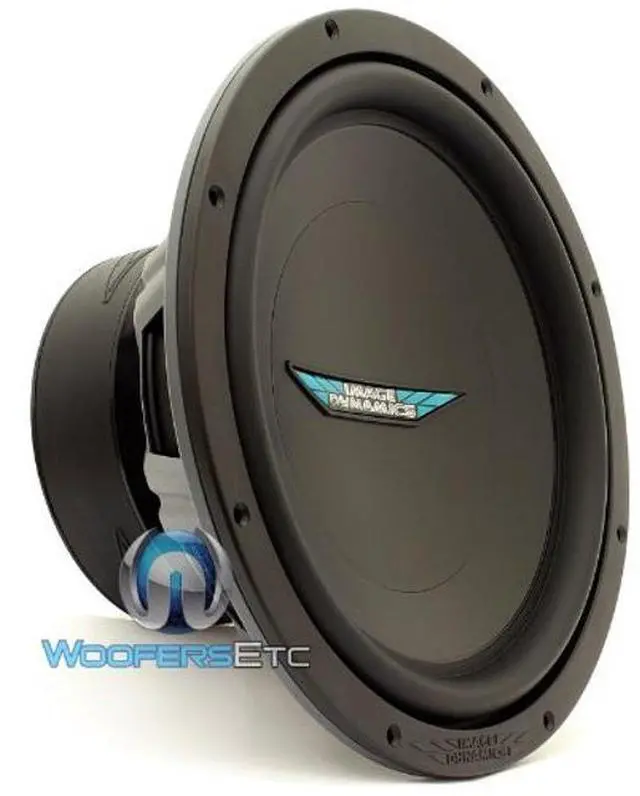

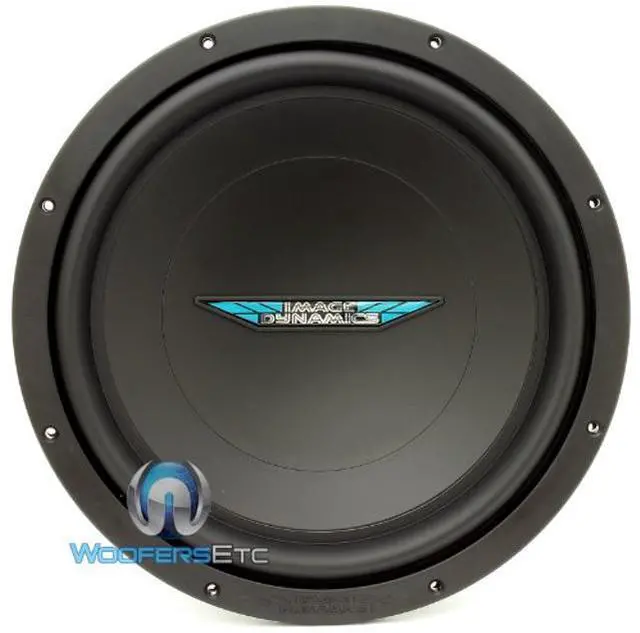

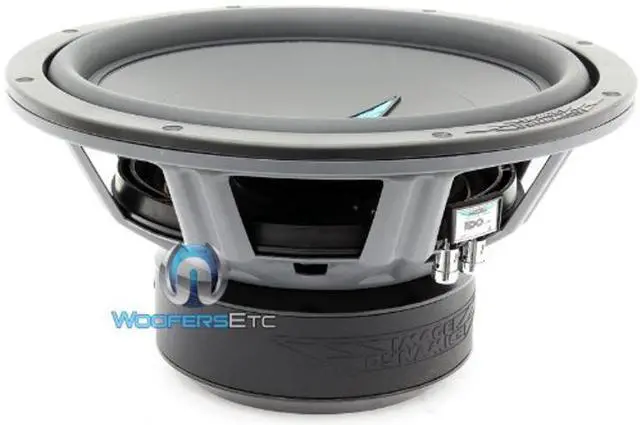

IDQ12 V.4 D4 - Image Dynamics 12" 1500W Peak Dual 4-Ohm IDQ V.4 Series Subwoofer
- 12" Dual 4 ohm IDQ V.4 Series Subwoofer
- Mica-reinforced polypropylene cone woofer
- Parabolic roll surround
- Ability to custom match the basket color to your personal installation
- Conex spider with integrated tinsel leads
- New V4 Metal Basket
- High-temperature aluminum voice coil
- Proprietary voice coil attachment design
- Power Handling: Peak: 1500 watts RMS: 750 watts Recommended Power Range: 50-750 watts
- Mica-reinforced polypropylene cone woofer Parabolic roll surround Ability to custom match the basket color to your personal installation Conex spider with integrated tinsel leads Fiberglass composite basket High-temperature aluminum voice coil Proprietary voice coil attachment design
- Sealed Enclosure Suggestion: 1 cu.ft. Ported Enclosure Suggestion: 1.5 cu.ft. Displacement: 0.10 cu.ft. Mounting Depth: 5.91 in Outside Diameter: 12.46 in Cutout: 10.87 in
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
: 12" Dual 4 ohm IDQ V. 4 SeriesSubwoofer Power Handling:
Peak: 1500 watts
RMS: 750 watts Recommended
Power Range: 50-750 watts Mica-reinforced polypropylene cone woofer Parabolic roll surround Ability to custom match the basket color to your personal installation Conex spider with integrated tinsel leads Fiberglass composite basket High-temperature aluminum voice coil Proprietary voice coil attachment design
Nominal Impedance (IMP): Dual 4 DC
Resistance (Re): 1.90 Resonance
Frequency (Fs): 30.47 Hz Equivalent
Volume (Vas): 69.72
L Electrical Q Factor (Qes): 0.59
Mechanical Q Factor (Qms): 4.40
Total Q Factor (Qts): 0.52
Peak Excursion (Xmax): 28 mm
Piston Area (Sd): 519.45 cm2
RMS Power: 750
W Sensitivity: 86.80 dB 1w/1m
Box Recommendations: Sealed
Enclosure Suggestion: 1 cu. ft.
Ported Enclosure Suggestion: 1.5 cu. ft.
Displacement: 0.10 cu. ft.
Mounting Depth: 5.91 in
Outside Diameter: 12.46 in
Cutout: 10.87 in
