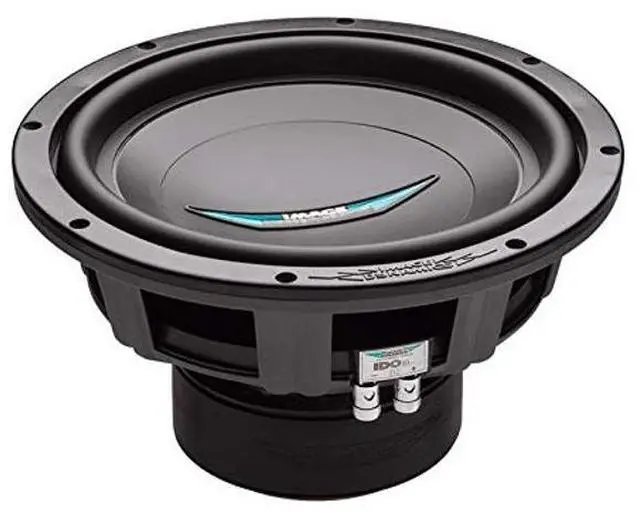

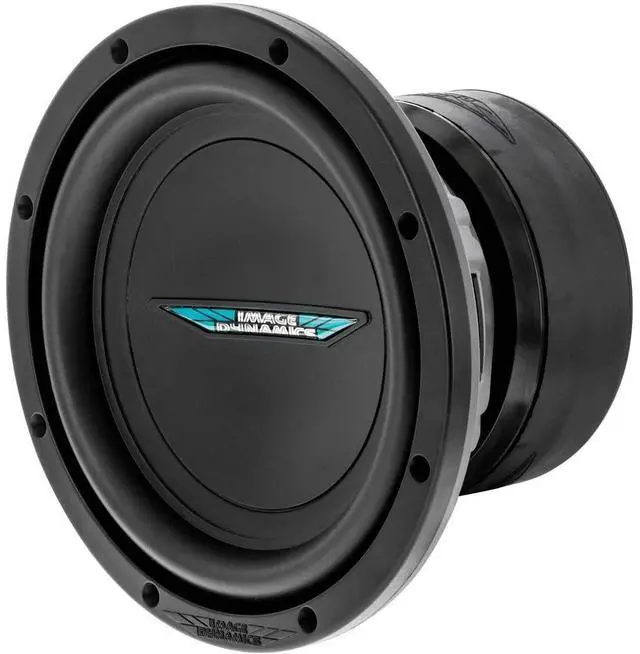

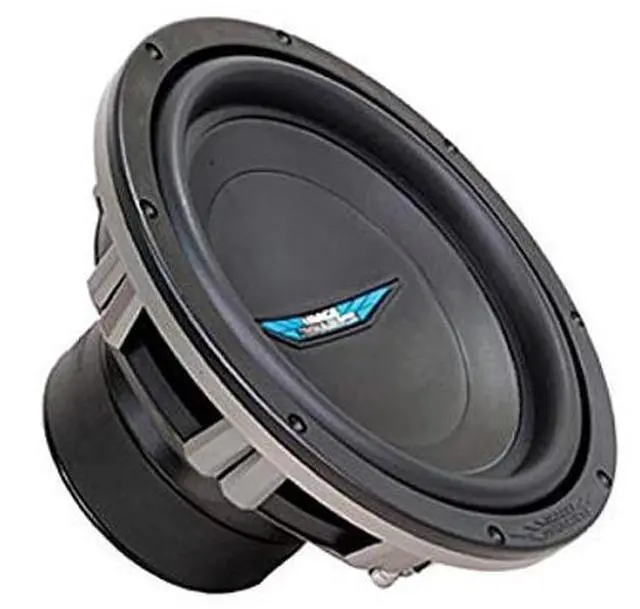

IDQ10 V.4 D2 - Image Dynamics 10" 1000W Peak Dual 2-Ohm IDQ V.4 Series Subwoofer
- 10" Dual 2 ohm IDQ V.4 Series Subwoofer
- Mica-reinforced polypropylene cone woofer
- Parabolic roll surround
- Ability to custom match the basket color to your personal installation
- Conex spider with integrated tinsel leads
- New V4 Metal Basket
- High-temperature aluminum voice coil
- Proprietary voice coil attachment design
- Power Handling: Peak: 1000 watts
- RMS: 500 watts
- Recommended Power Range: 50-500 watts
- Nominal Impedance (IMP): Dual 2
- DC Resistance (Re): 1.85
- Resonance Frequency (Fs): 31.77 Hz
- Equivalent Volume (Vas): 44.71 L
- Electrical Q Factor (Qes): 0.79
- Mechanical Q Factor (Qms): 2.90
- Total Q Factor (Qts): 0.62
- Peak Excursion (Xmax): 28 mm
- Piston Area (Sd): 383.58 cm2
- Sensitivity: 84.50 dB 1w/1m
- Sealed Enclosure Suggestion: 1.1 cu.ft.
- Ported Enclosure Suggestion: 1.45 cu.ft.
- Displacement: 0.07 cu.ft.
- Mounting Depth: 5.81 in
- Outside Diameter: 11.04 in
- Cutout: 9.57 in
+
+
