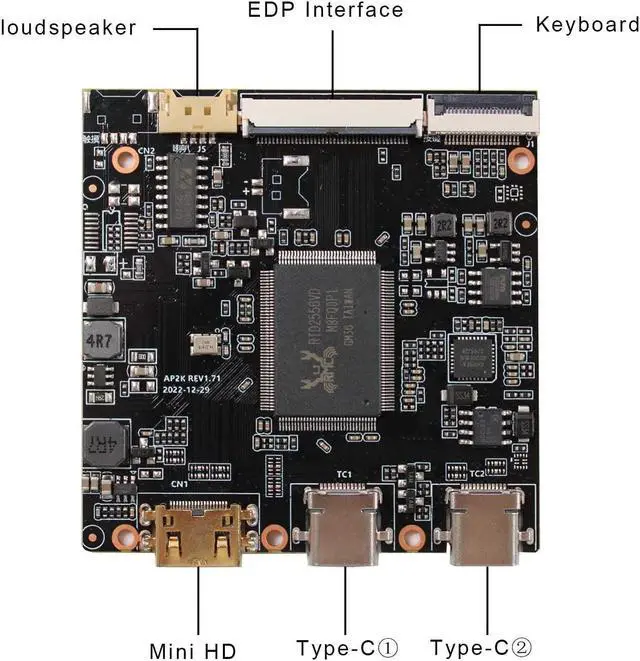

LCD Controller Board:
Type-C Control Board Work for LCD Screen
Input Power Adapter: Type-C connector
R: Support
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Input: Type-C,
Output: eDP USB (max 500mA)
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
Nederlands Korean Japanese

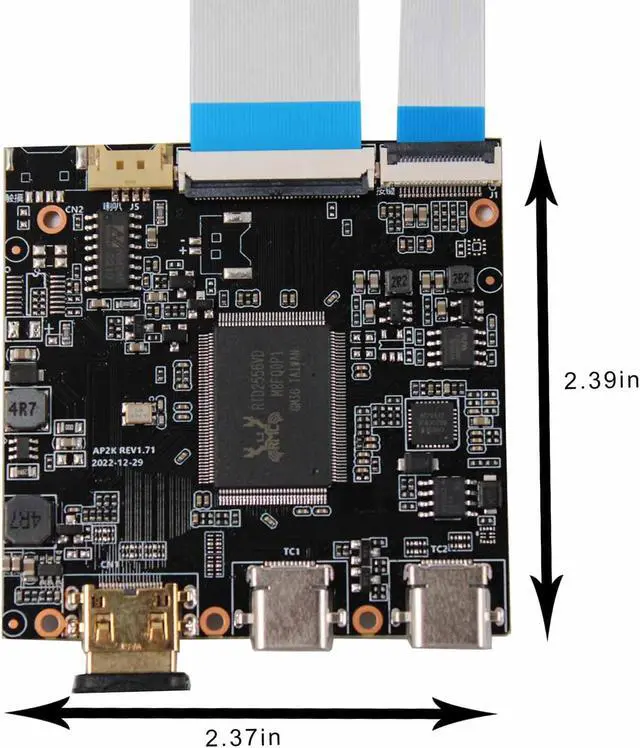

Board Size: 60.8 mm x 60.2 mm x 4mm

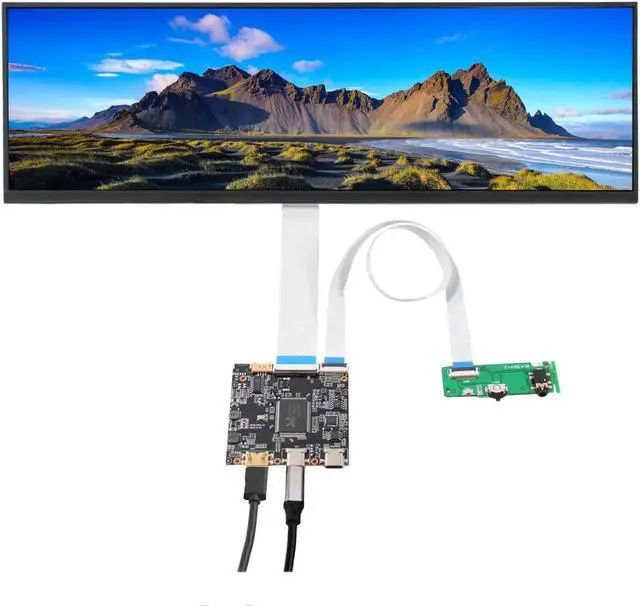

14.5" VS145T-001T 2560X720 LCD Screen:
Display Mode ADS, Normally Black, Transmissive
Resolution: 2560 (RGB) ×720
Outline Size: 364.2 × 113.3 × 3.5 (H×V×D)
Display Area: 354.82 × 99.97 (H×V)
Brightness: 350 cd/m² (Typ. )
Contrast Ratio: 500:1 (Typ. ) (TM)
Viewing Angle: 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit), 50 pins, FPC
Backlight: WLED
Input Voltage 3.3V (Typ. )

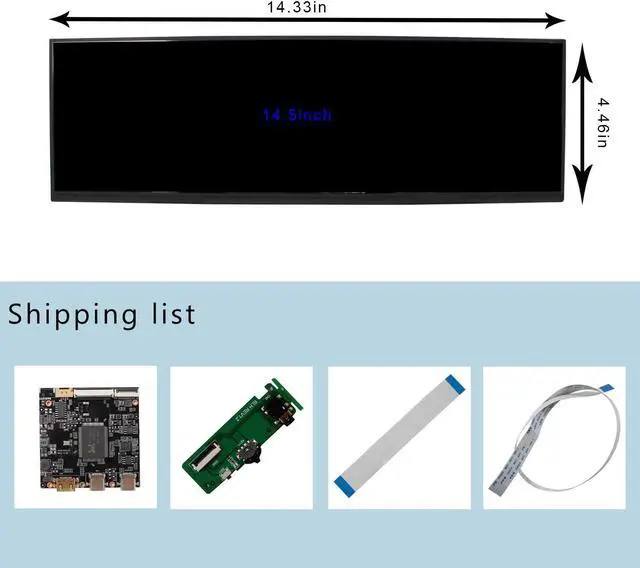

Packing list:
1× TYPE-C LCD Controller Board VS-AP2K
1× 14.5 inch VS145T-001T 2560X720 2K LCD Screen

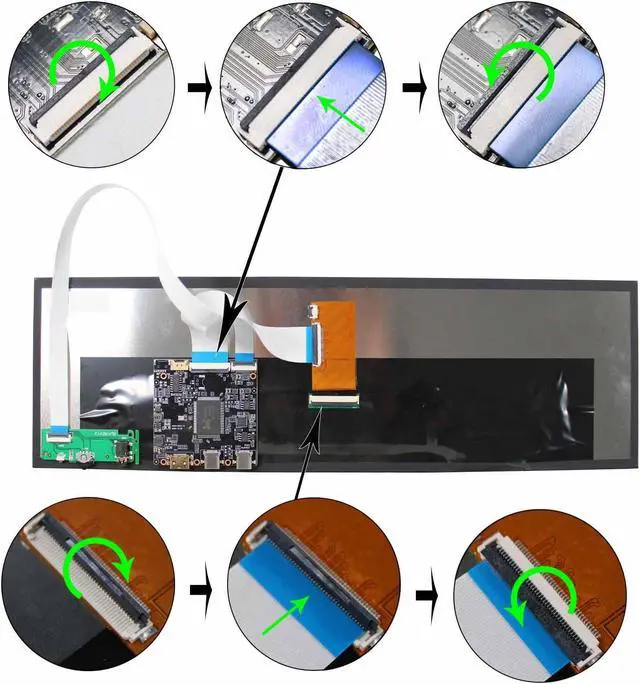

1× Signal Cable
1× Keyboard With Cable
Tips: All the products are tested before package and shipment, if any problem of product, please feel free to contact us
