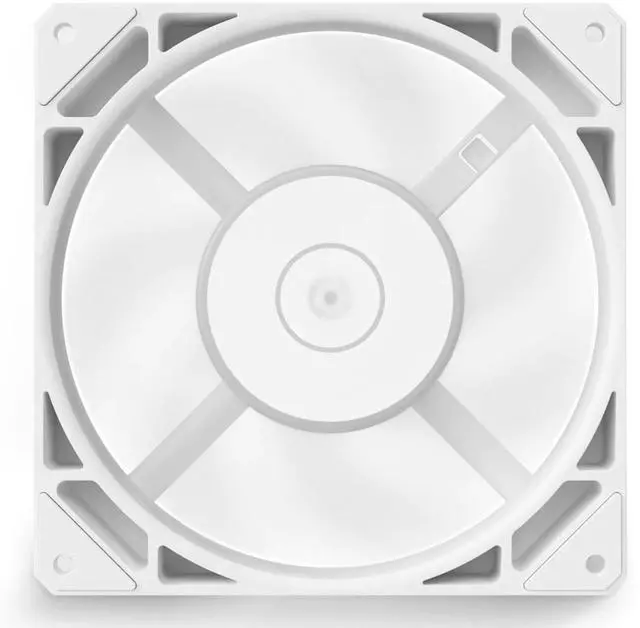

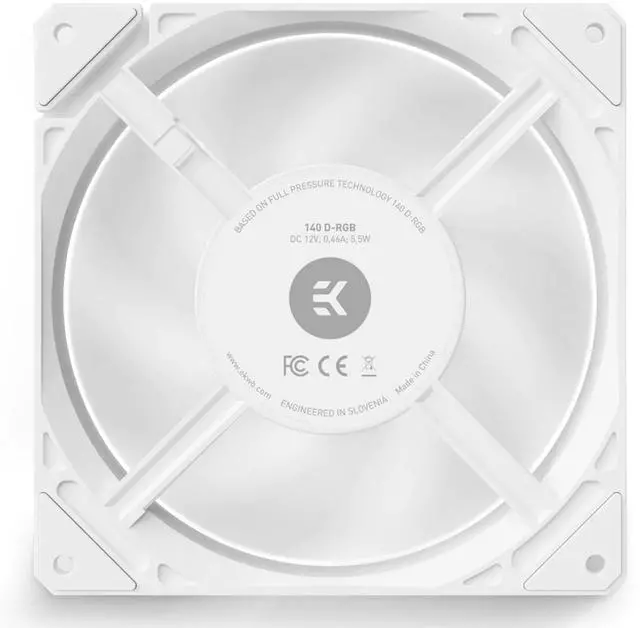

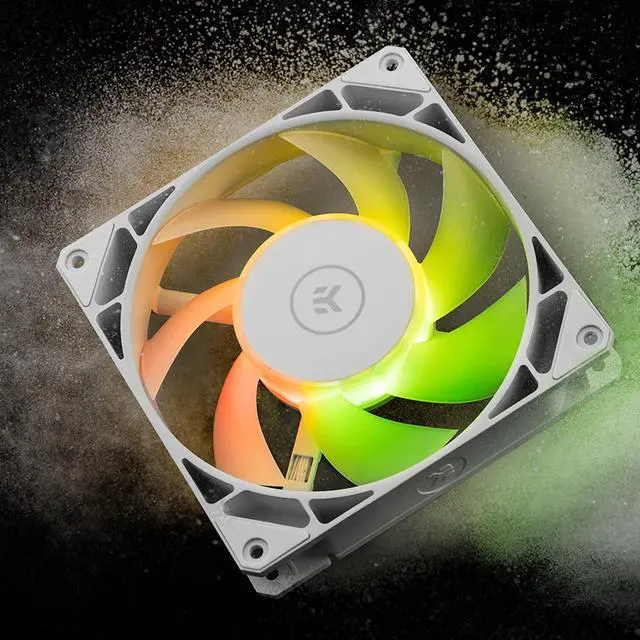

EKWB EK-Loop FPT 140mm Fan, 600-2200 RPM, Digital RGB, White

EK-Loop Fan FPT 140 D-RGB is a 140mm high-static pressure computer cooling fan designed and built primarily for the highest-performance computer liquid cooling systems. FPT series fans aim to succeed the EK-Vardar fans completely, as they improve upon many aspects while maintaining focus on excellent radiator performance. These fans feature an optimized and balanced performance-to-noise ratio on the wide operational range of the fan. FPT fans feature a full frame design that doesn't allow air to escape outside the frame and thus achieve overall better static pressure. The new fan allows daisy-chaining, ultimately reducing cable clutter and easing cable routing through the EK-OmniLink, an 8-pin Micro-fit connector-based ecosystem.

All the signal and power wiring for PWM and D-RGB run on a single cable and connector, which then utilizes a single cable to connect to the source.
Mechanical and electrical specifications: -
RPM range: 600 - 2200 RPM -
Rated voltage: 12V -
Power draw: 5, 5W -
LED power draw: 3W (0, 6A) -
PWM duty cycle: 20-100% -
Shaft bearing: FDB (Fluid Dynamic Bearing) -
Bearing durability: 60000 hrs@ 25 degree C -
Dimensions: 140mm x 140mm x 27mm -
Fan cable length: 120mm -
Fan connector: Micro-fit 8-pin connector -
Extender cable length: 500mm -
Extender connector: 4-Pin PWM Header and 3-Pin Addressable 5V D-RGB header
Performance characteristics: - Max
Air Flow: 118, 01 CFM = 200, 5 m3/h -
Static Pressure: 3, 57 mm H20 = 35 Pa -
Noise Level: 44, 56dBA (max.
RPM) Enclosed: - 1x EK-Loop Fan FPT 140 - 1x Cable extender (PWM+RGB) - 4x Self-tapping case screws
Model: 3831109898055
