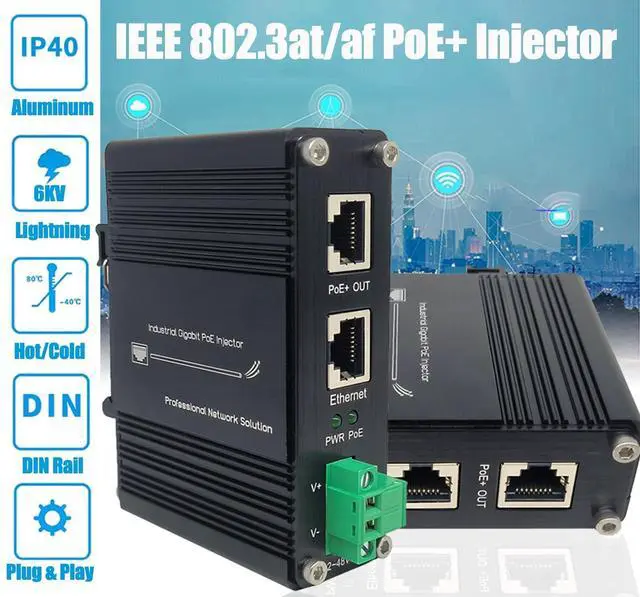

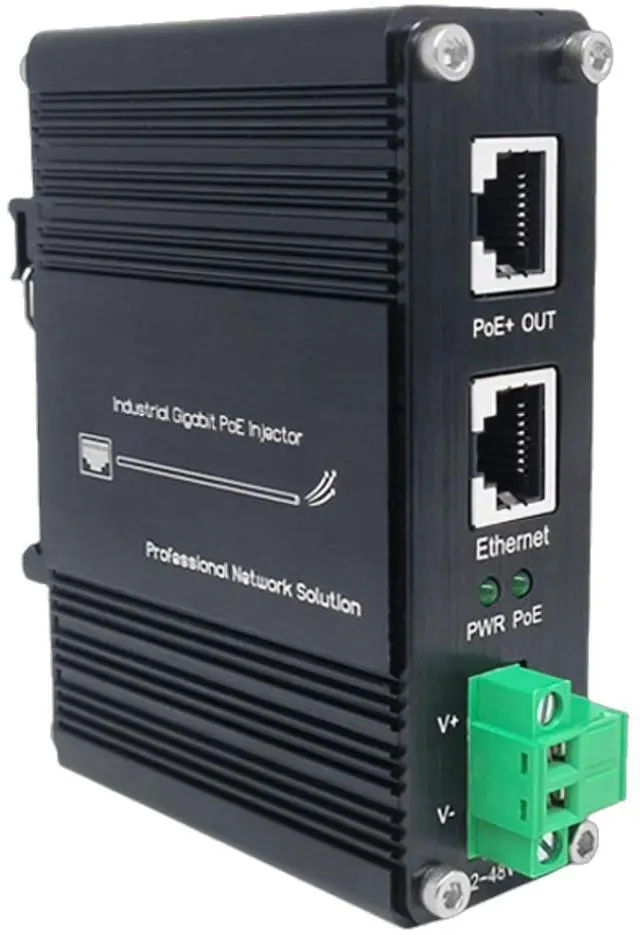

30W PoE Injector, Industrial Hardened Gigabit PoE+ Injector, DC 12-48V Input Ethernet PoE Adapter, IEEE 802.3at/af Compliant, 10/100/1000Mbps RJ-45, DIN Rail + Wall Mount

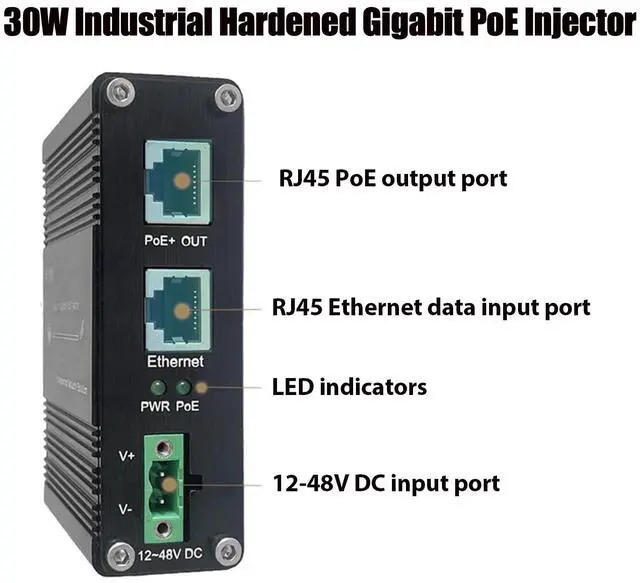

- Dual-Function Ports: PoE injector equipped with a RJ45 PoE output port and a RJ45 Ethernet data input port, along with a 12-48V DC input port, up to 30W power each, allowing simultaneous transmission of network data and power
- Standard Compliance: 30W Industrial Hardened Gigabit PoE Injector adheres to IEEE802.3 af/at PoE standard, suitable for all 802.3af/at compliant devices
- Safety Protection: Gigabit PoE Injector features PD detection function, ensuring that non-PoE devices wont be damaged if connected by mistake; comes with overload current protection and anti-reverse connection protection for the 12-48V DC input
- Robust Design: PoE+ Injector boasts IP40 aluminum protection and 6KV lightning protection, suitable for use in extreme temperatures ranging -40°C to 75°C (-40°F to 167°F), resistant to shock and vibration

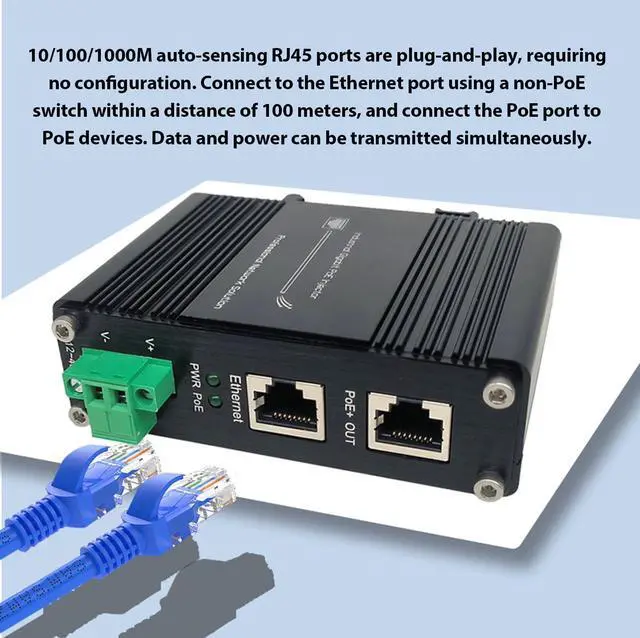

- Plug & Play: Simply plug in the power cord, connect the Ethernet cable to the device, and its ready to use without any configuration; supports both
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

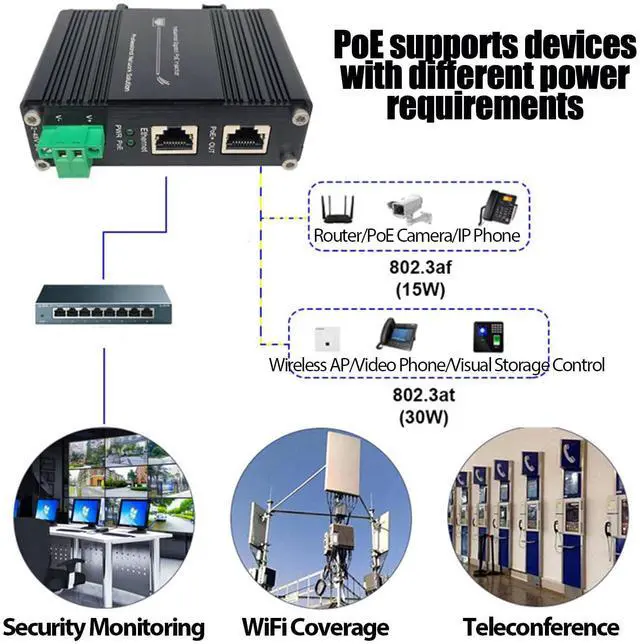

How to Set up
Step1: Connect the Ethernet port of the injector to a LAN switch with a network cable.
Step2: Connect the PoE Out port to the PoE device.
Step 3: After the device is powered on, the PWR indicator will all be on. If not, check the power supply connection.
SPECIFICATION
PoE Standards: IEEE 802.3 af Power over Ethernet, IEEE 802.3 at Power over Ethernet, IEEE 802.3 bt Power over Ethernet, Power Sourcing Equipment (PSE)
Max.
Power: 30W per port
Input Power: 12-48V DC (Terminal Block)
Processing Type: Forward, Half-duplex, Full-duplex
Power Pin Assignment: Mode B: 4/5(+), 7/8(-)
Cabling: 10/100/1000Base-T: Cat5 or above
Connector: 2x 10/100/1000Base-T RJ45
Max.
Distance: Cat5 UTP up to 100m
Operating Temperature: -40°C to 75°C (-40°F to 167°F)
MTBF: >200, 000hrs
Dimensions: 3.74 * 2.76 * 1.18 inches
Weight: 0.55 lbs
PACKAGE
1 x 30W Industrial Hardened Gigabit PoE Injector
1 x Wall Mount Bracket
1 x Manual
Step1: Connect the Ethernet port of the injector to a LAN switch with a network cable.
Step2: Connect the PoE Out port to the PoE device.
Step 3: After the device is powered on, the PWR indicator will all be on. If not, check the power supply connection.
SPECIFICATION
PoE Standards: IEEE 802.3 af Power over Ethernet, IEEE 802.3 at Power over Ethernet, IEEE 802.3 bt Power over Ethernet, Power Sourcing Equipment (PSE)
Max.
Power: 30W per port
Input Power: 12-48V DC (Terminal Block)
Processing Type: Forward, Half-duplex, Full-duplex
Power Pin Assignment: Mode B: 4/5(+), 7/8(-)
Cabling: 10/100/1000Base-T: Cat5 or above
Connector: 2x 10/100/1000Base-T RJ45
Max.
Distance: Cat5 UTP up to 100m
Operating Temperature: -40°C to 75°C (-40°F to 167°F)
MTBF: >200, 000hrs
Dimensions: 3.74 * 2.76 * 1.18 inches
Weight: 0.55 lbs
PACKAGE
1 x 30W Industrial Hardened Gigabit PoE Injector
1 x Wall Mount Bracket
1 x Manual
