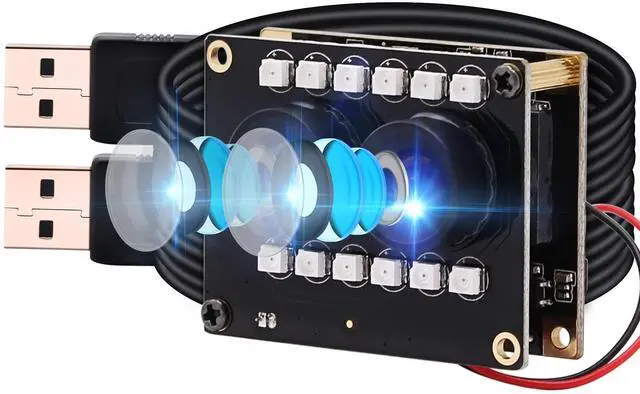

1080P USB Camera Module Dual Lens Day Night Vision Webcam Board with IR LED for Computer WDR PC Camera Mini UVC USB2.0 Web Camera Auto IR Infrared USB Security Camera HD AR0230 USB with Camera
- WDR Dual Lens Usb Camera Module with High Quality Image Sensor:webcamera_usb 2 megapixel WDR dual lens usb camera module use ar0230 image sensor which is the high standard in terms of image quality and sensitivity performance.The image sensor helps to produce sharp images effectively.1080p usb camera module with 90degree megapixel lens,2mp full HD 1080p usb cameras module can meet most capturing and video requirements,High resolution 2 megapixel camera module equipped with 1 meter usb cable.
- FULL HD 2mp 1080P Double Lens Day Nights USB WEBCAM Module:The streaming dual lens camera module provides incredibly sharp 1080p to capture crystal clear images and records 1080@30fps video.Small outlets,can embedded in most machines:used for all kinds of machine as below: machinery equipment,all-in-one machine,POS equipment,STB,smart box TV BOX,advisement player,LED display,automatic vending machine,safety box,notebook,video door phone,MID,etc.
- High speed USB 2.0 interface WDR Dual
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model KK-USB0230X2-V90
Sensor AR0230
Lens Size 1/ 2.7 inch
Pixel Size 3.0 µm x 3.0 µm
Image Area 3888µm x 2430 µm
Max. Resolution 1920 (H) X1080 (V)
Compression format MJPEG
Resolution & frame Camera0 (Left ) Color & Camera1 (Right) B/W
MJPEG1920X1080@30fps/1280X960@30fps/1280X720@30fps
1024X768@30fps/800X600@30fps/640X480@30fps
352X288@30fps/320X240@30fps
YUY 2: 1920 X1080@5fps/1280X960@5fps/1280X720@5fps
1024X768@5fps/800X600@15fps/ 640X480@30fps
352X288@30fps/320X240@30fps
S/N Ratio 41dB
Dynamic Range 105dB
Sensitivity 4.0V /lux-sec@550nm
Mini illumination 0 lux (IR)
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port type USB 2.0 High Speed
Free Drive Protocol USB Video ClassUVC
Support OTG Protocol USB 2.0 OTG
AEC Support
AEB Support
AGC Support
Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness,
Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter M12 Lens FOV (D) 138 (H) 100 degree
Power supply USB BUS POWER 4P- 2.0 mm socket
Power supply DC5V
Working current -1070
Working temperature -2085
Operating system
Win XP/Vista/Win7/Win8
Linux with UVCabove linux- 2.6. 26
MAC-OS X 10.4. 8 or later
Android 4.0 or above with UVC
Sensor AR0230
Lens Size 1/ 2.7 inch
Pixel Size 3.0 µm x 3.0 µm
Image Area 3888µm x 2430 µm
Max. Resolution 1920 (H) X1080 (V)
Compression format MJPEG
Resolution & frame Camera0 (Left ) Color & Camera1 (Right) B/W
MJPEG1920X1080@30fps/1280X960@30fps/1280X720@30fps
1024X768@30fps/800X600@30fps/640X480@30fps
352X288@30fps/320X240@30fps
YUY 2: 1920 X1080@5fps/1280X960@5fps/1280X720@5fps
1024X768@5fps/800X600@15fps/ 640X480@30fps
352X288@30fps/320X240@30fps
S/N Ratio 41dB
Dynamic Range 105dB
Sensitivity 4.0V /lux-sec@550nm
Mini illumination 0 lux (IR)
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port type USB 2.0 High Speed
Free Drive Protocol USB Video ClassUVC
Support OTG Protocol USB 2.0 OTG
AEC Support
AEB Support
AGC Support
Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness,
Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter M12 Lens FOV (D) 138 (H) 100 degree
Power supply USB BUS POWER 4P- 2.0 mm socket
Power supply DC5V
Working current -1070
Working temperature -2085
Operating system
Win XP/Vista/Win7/Win8
Linux with UVCabove linux- 2.6. 26
MAC-OS X 10.4. 8 or later
Android 4.0 or above with UVC
