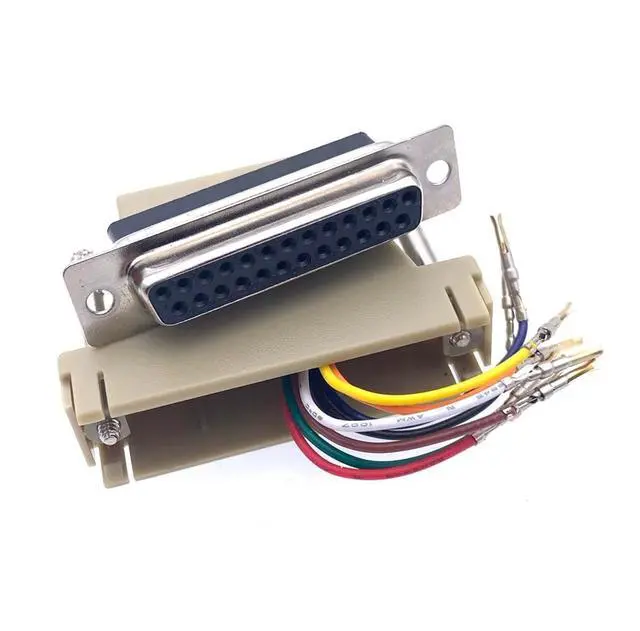

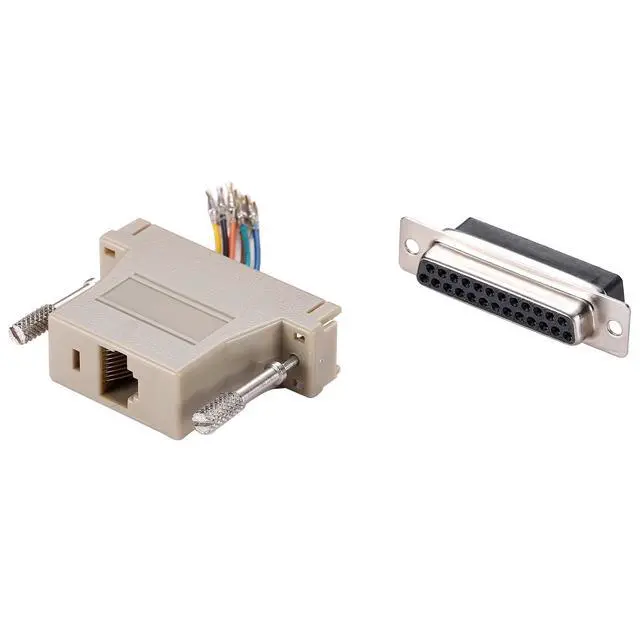

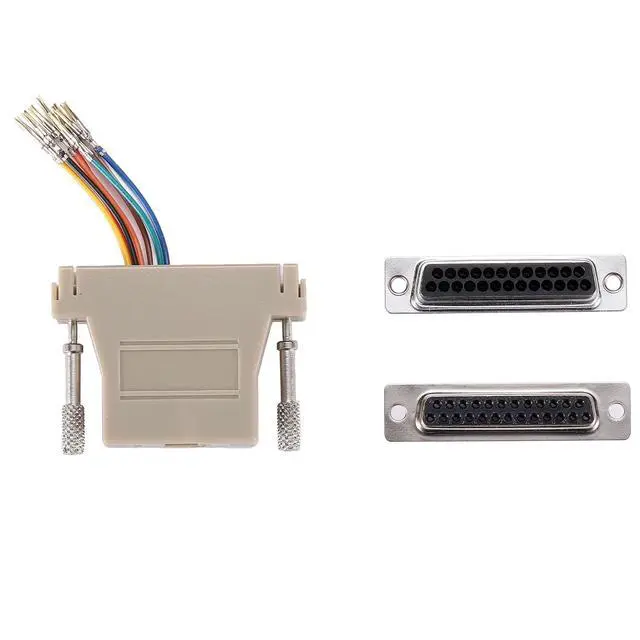

ANMBEST 10PCS DB25 Female Ethernet Adapter, 25 Pin Serial Port Female to RJ45 Ethernet LAN Extend Modular Converter, F/F
- Transmit signals between your RS232 ports over CAT5, CAT5E, and CAT5 network cables. Transmits signals up to 100FT.
- RJ45 Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, and 8-White.
- High quality alloy transmission port reduce the transmission impedance and interference, environmentally ABS material, super wear-resistant.
- The DB25 female to RJ45 adapter converts the pin configuration of the DB25 connector into the appropriate wiring scheme for an RJ45 connector, allowing you to establish a connection between devices that use these different interfaces. It is often used in scenarios where legacy serial devices need to be connected to a network infrastructure using Ethernet technologies.
- DB25 Pin Definition: 1.SHIELD(Shield Ground); 2.TxD(Transmitted Data); 3.RxD(Received Data); 4. RTS(Request to Send); 5. CTS(Clear to Send); 6.DSR(Data Set Ready); 7.GND(System Ground); 8.DCD(Data Carrier Detect); 9.RESERVED; 10.RESERVED; 11.STF(Select Transmit Channel);
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
A DB25 female to RJ45 adapter is a connector that allows you to convert a DB25 serial port to an RJ45 Ethernet port (commonly used for networking). This adapter enables you to connect devices with DB9 serial interfaces to a network using an Ethernet cable and an RJ45 interface. It enables the connection between devices that utilize different types of connectors.
name: DB25 female to
RJ45 female moduleShell material: ABS
Wire: 1007 # 26 tinned copper wireRequires no external powerRJ45
Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, and 8-WhiteDB25
Pin Definition: 1. SHIELD (Shield Ground); 2. TxD (Transmitted Data); 3. RxD (Received Data); 4. RTS (Request to Send); 5. CTS (Clear to Send); 6. DSR (Data Set Ready); 7. GND (System Ground); 8. DCD (Data Carrier Detect); 9. RESERVED; 10. RESERVED; 11. STF (Select Transmit Channel); 12. SCD (Secondary Carrier Detect); 13. SCTS (Secondary Clear to Send); 14. STXD (Secondary Transmit Data); 15. TCK (Transmission Signal Element Timing); 16. SRXD (Secondary Receive Data); 17. RCK (Receiver Signal Element Timing); 18. LL(Local Loop Control; 19. SRTC (Secondary Request to Send); 20. DTR (Data Terminal Ready); 21. RL (Remote Loop Control); 22. RI (Ring Indicator); 23. DSR (Data Signal Rate Selector); 24. XCK (Transmit Signal Element Timing); 25. TI (Test Indicator).
Package includes: 10 PCS DB25 Female to RJ45 Modular Adapter
Specifications
: Productname: DB25 female to
RJ45 female moduleShell material: ABS
Wire: 1007 # 26 tinned copper wireRequires no external powerRJ45
Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, and 8-WhiteDB25
Pin Definition: 1. SHIELD (Shield Ground); 2. TxD (Transmitted Data); 3. RxD (Received Data); 4. RTS (Request to Send); 5. CTS (Clear to Send); 6. DSR (Data Set Ready); 7. GND (System Ground); 8. DCD (Data Carrier Detect); 9. RESERVED; 10. RESERVED; 11. STF (Select Transmit Channel); 12. SCD (Secondary Carrier Detect); 13. SCTS (Secondary Clear to Send); 14. STXD (Secondary Transmit Data); 15. TCK (Transmission Signal Element Timing); 16. SRXD (Secondary Receive Data); 17. RCK (Receiver Signal Element Timing); 18. LL(Local Loop Control; 19. SRTC (Secondary Request to Send); 20. DTR (Data Terminal Ready); 21. RL (Remote Loop Control); 22. RI (Ring Indicator); 23. DSR (Data Signal Rate Selector); 24. XCK (Transmit Signal Element Timing); 25. TI (Test Indicator).
Package includes: 10 PCS DB25 Female to RJ45 Modular Adapter
