HangTon WS28 24 Pin 5A Male Plug Female Socket Aviation Circular Power Electrical Connector Bulkhead Solder Outdoor Automotive Solar

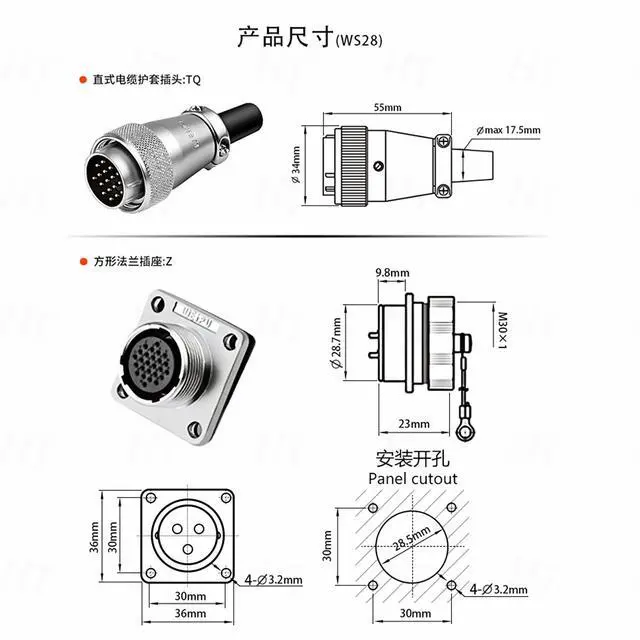

- WEIPU WS28 24 pin aviation circular metal power electrical connector, male cable plug and female panel chassis socket, 28mm panel hole cutout diameter

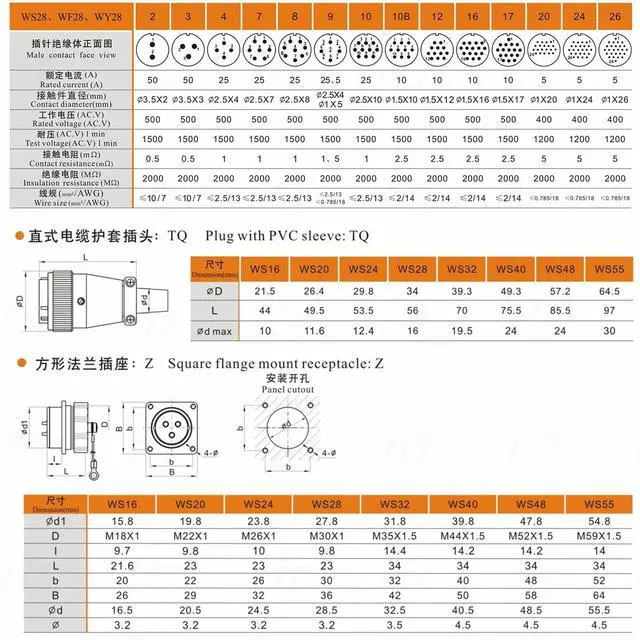

- [Contact Spec] Rated Voltage / Current AC 400V / 5A. Contact Diameter 1mm. Resistance 5m. Wire Size 18AWG or smaller than 0.75mm. Cable Outer Diameter Range 16mm max
- Power connector for portable power station, industrial machines, solar generator / panel, camper van, automotive, LED, marine, lighting system, indoor outdoor electrical equipment
- Threaded coupling, solder termination type, Zinc alloy with chrome plating shell, gold-plated brass contact. Well made and good quality connector. Connector set includes plug with PVC sleeve, socket, plastic cap and mounting screws
- Reliable solid secure and quick connection. Easy cable assembly. Corrosion resistance, oxidation resistance, dust-proof, explosion-proof, deformation-proof, long service life. Heavy-duty connector for harsh industrial indoor outdoor environment
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
:WS28: Panel
Hole Cutout Diameter: 28mmCable
Outer Diameter: 16mm maxCoupling
Type: Threaded, secure and quick connectionShell
Material: Zinc alloy with chrome plating. Corrosion resistance, oxidation resistance, long service lifeInsert
Material: Thermoplastic PPS max temperature 260Contact
Material: Brass
with gold platingTermination: SolderMating
Cycle: >500 timesTemperature
Range: -40~+85Package

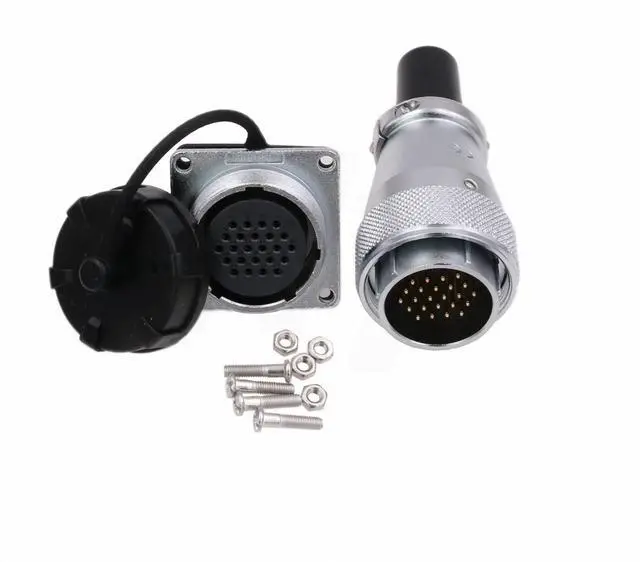

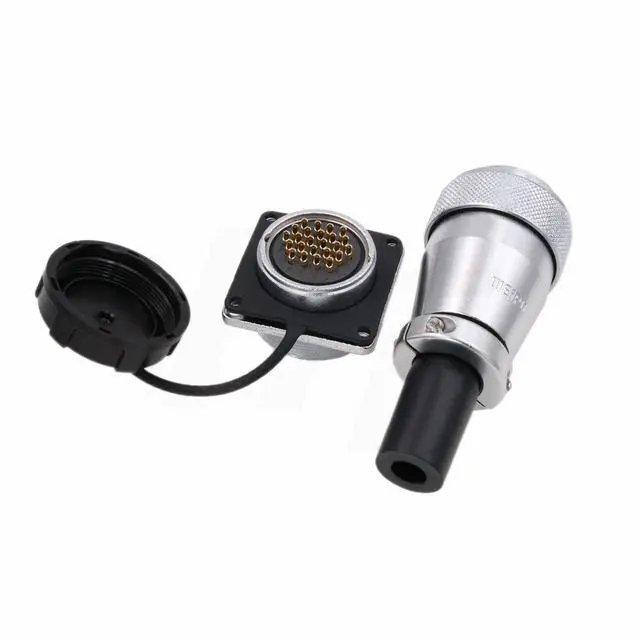

Includes: 1 x TQ Male plug with PVC sleeve1 x Female socket square flange mount1 x
Dustproof Cap4x screwsFeatures: In the harsh environment the connector can provide safe and reliable connection. WS28 metal aviation connector is ideal for data and power distribution in area of dust-proof, indoor / outdoor applications, such as outdoor electrical tools, industrial power supply, automotive portable power, medical device, communications, automatic equipment, led lighting, LED panels, solar power station, outdoor security cameras, transformer, control box, machines equipment, packing machines and more.
