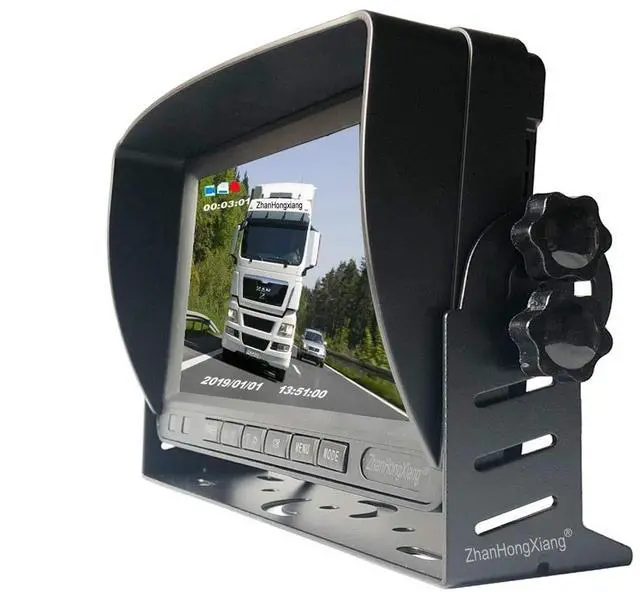

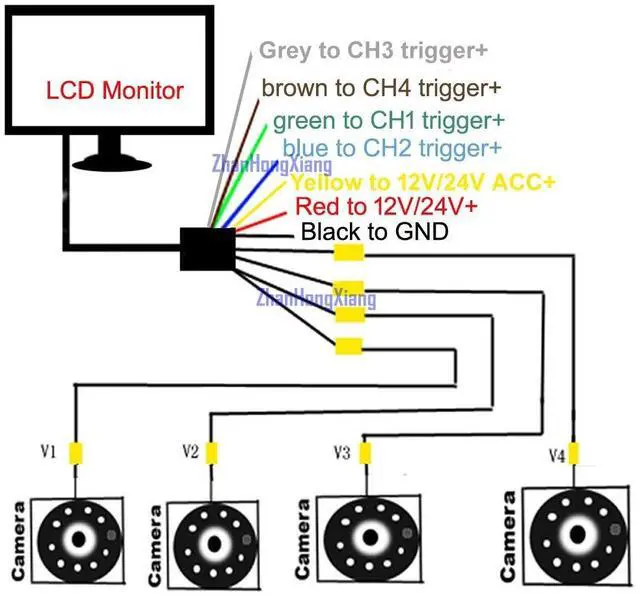

Only need to connect the monitor power wire with car electronics system: Red wire to car key on+, Yellow wire to car battery+Black wire to GND, Green Blue Grey wire to reversing Trigger+ or other Trigger+ (or No need to connect) Insert the Memory to the card slot and press Mode button to recordSimple to installation, Easy to use Easy to mountBest for All Heavy Vehicle such as semi Box Truck Trailer Bus RV 5th Wheel Camper Pickup Boat School Bus Tractor Motorhome7" Large DVR Recorder Monitor with 4-splitDisplay
Size: 7
Inch AHD DVR ScreenPower requirement: DC
12V-24VConsumption:

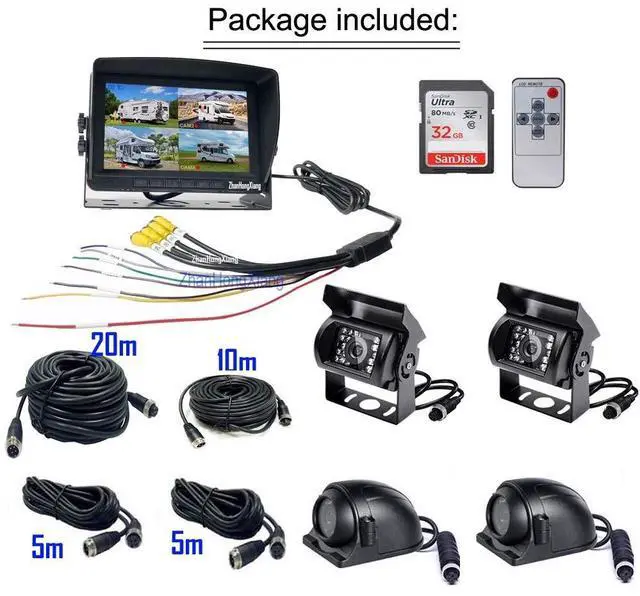

8WVideo: 4 channels input, Quad Split Screen DisplayOur Split monitor can display 4 video at same timeFull images/3 images/4 images adjustableBuild in SD DVR Great Loop Recording functionsEach camera Record with a separate videoRecord video Can be find out easily by video playbackCome with 32GB SD Memory Card, Max support 128GBReverse Grid Lines Can be turn on or offImage Can be adjust for mirror or none MirrorImage Support Flip with Upside DownSuitable for Front view/ rear view/side view360clearly View to avoid blind spotNet
Weight: Approx.
1000gLauguage: English, ChineseAHD 1080P IR Backup Camera100% Not Wash Out AHD 1080P
Sensor Mirror imageLens: 2.8 mm (120 View angle )
Number of pixels: 2.0 MP Camera (1920*1080)
Minimum illumination: 0 LUX
Night vision: LED
IRVideo Output: 4Pin
Aviation Connectorwork Temperature: -20C~+60CPower
Requirement: DC
12VWaterproof: IP 69
