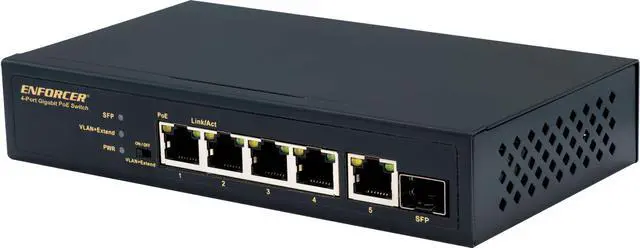

Seco-Larm NS-504UT-GAQ Enforcer 4-Port Unmanaged PoE Switch; Plug-and-Play Installation; Supports up to 10/100/1000B-T; IEEE 802.3X Flow Control; 100/240 VAC; 4 Downlink, 1 uplink, 1 SFP Ports

Seco-Larm NS-504UT-GAQ Enforcer 4-Port Unmanaged PoE Switch; Plug-and-play Installation; Supports up to 10/100/1000B-T; IEEE 802.3 x Flow Control; 100/240 VAC; 4 Downlink, 1 uplink, 1 SFP PortsENFORCER Unmanaged PoE Switches provide Ethernet and power to PoE devices such as IP cameras, IP access control, IP speakers/intercoms, IP telephony, etc. Fast packet forwarding capability and extra backplane bandwidth ensure clear images at fast transmission speeds for video, making them well-suited for HD IP CCTV installations.
Key Features: - Provides both Ethernet data and power to multiple PoE devices including IP cameras, IP access, IP speakers/intercoms, VOIP, etc- Specially designed for video transmission with fast packet forwarding capability for clear images and smooth transmission- Easy plug-and-play installation- Supports up to 10/100/1000B-T-
IEEE 802.3 x flow controlSpecifications: -
Operating voltage: 100~240 VAC-
Power consumption: Less than 5W-
Ports: 4 Downlink, 1 uplink, 1 SFP-
Ethernet speed: 10/100/1000Mbps (uplink, 1000Mbps)-
Ethernet standard: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 af, IEEE 802.3 at, IEEE 802.3 x, IEEE 802.3 z-
Transmission distance: 328ft-
PoE capacity: 60W-
Switching capacity: 12Gbps-
Transfer rate:
10Mbps: 14, 880pps
; 100Mbps: 148, 800
; 1000Mbps: 1, 488, 000-
MAC Address table: 2K-
LED Indicators: Connection/transmission and PoE for each port, power-
Dimensions: 6.61 x 1.25 x 3.70 inches-
Weight: 1.5 pounds
