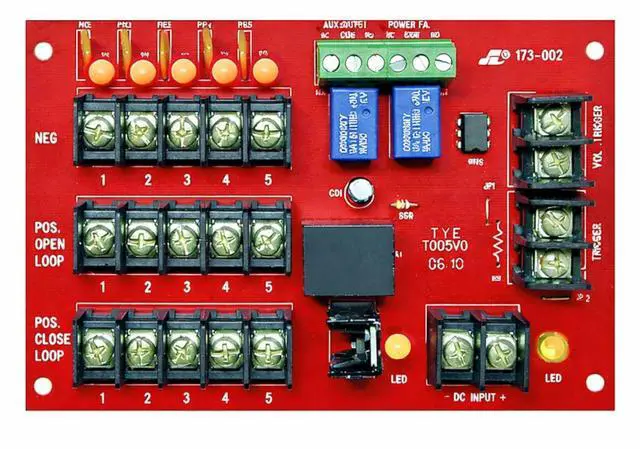

Seco-Larm PD-5PAQ Access Control Power Distribution Board, 5 Outputs, PTC-Fused Outputs, 12/24VDC, LED Status Indicators, Power & Auxiliary Supervision Relays, Dry and Wet Trigger Inputs
- Five individually fused outputs: provides PTC-fused protection for connected access control devices
- Dual voltage support: operates with 12VDC or 24VDC systems for flexible installation
- LED status indicators: visual feedback for each output, power input, and trigger conditions
- Dry and wet trigger inputs: compatible with a variety of trigger sources for integrated systems
- Fail-safe and fail-secure operation: each output can function in either mode based on system requirements
- Power failure supervision relay: monitors and signals power loss (3A@24VDC)
- Auxiliary supervision relay: supports additional supervised outputs (3A@24VDC)
- Compact PCB form factor: easy integration into a control cabinet or enclosure
- Total supply current: 5A at 12VDC or 2.5A at 24VDC
- Ideal for access control installations: centralizes power for maglocks, strikes, and locks
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

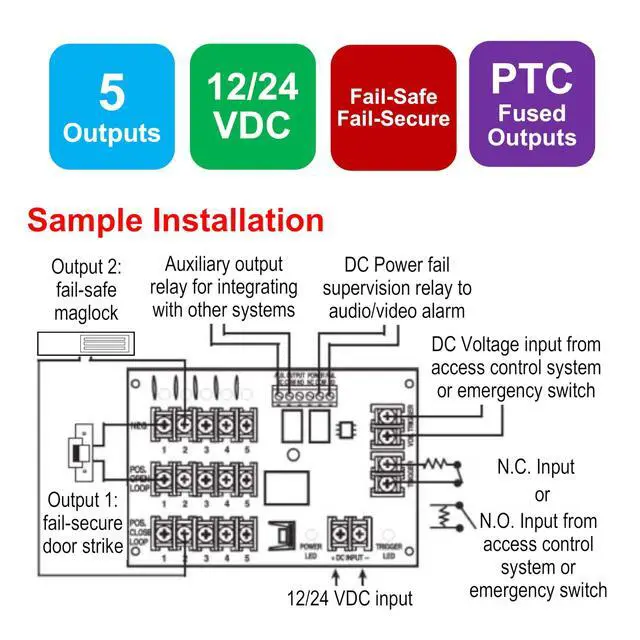

Seco-Larm PD-5PAQ Access Control Power Distribution Board, 5 Outputs, PTC-Fused Outputs, 12/24VDC, LED Status Indicators, Power & Auxiliary Supervision Relays, Dry and Wet Trigger InputsThe Seco-Larm PD-5PAQ Power Distribution Board centralizes power distribution for access control locking devices such as electromagnetic locks, electric strikes, and deadbolt locks. Featuring five individually PTC-fused outputs with LED status indicators, dry and wet trigger inputs, and support for both fail-safe and fail-secure modes, this board simplifies system wiring and improves fault isolation while supporting either 12VDC or 24VDC installations.
Key Features: Five PTC-fused outputs 12/24VDC operation LED status indicators Dry and wet trigger inputs Supports fail-safe/fail-secure modes Power failure supervision relay Auxiliary supervision relay Compact distribution board Supports maglocks and electric strikes
Centralized power distributionSpecifications:
Model: PD-5PAQ
Input voltage: 12/24
VDC Number of outputs: 5
Output fuse type: PTC 1.1A per output
Total supply current: 5A @12VDC / 2.5A @24VDC
Power failure supervision output: SPDT 3A @24VDC
Auxiliary supervision output: SPDT 3A @24VDC
Operating temperature: -40F to 167F
Dimensions: 3.56 x 5.31 x 1.06 inches
Weight: 0.55 pounds
Key Features: Five PTC-fused outputs 12/24VDC operation LED status indicators Dry and wet trigger inputs Supports fail-safe/fail-secure modes Power failure supervision relay Auxiliary supervision relay Compact distribution board Supports maglocks and electric strikes
Centralized power distributionSpecifications:
Model: PD-5PAQ
Input voltage: 12/24
VDC Number of outputs: 5
Output fuse type: PTC 1.1A per output
Total supply current: 5A @12VDC / 2.5A @24VDC
Power failure supervision output: SPDT 3A @24VDC
Auxiliary supervision output: SPDT 3A @24VDC
Operating temperature: -40F to 167F
Dimensions: 3.56 x 5.31 x 1.06 inches
Weight: 0.55 pounds
